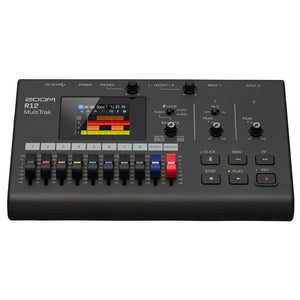

Description
The R12 is made for musicians who live to make music. And they want the freedom to make music wherever they go.
AMAZING SOUND
The R12 has super-clean preamps and you’ll love the way they sound. With two XLR/TRS inputs, and 8 tracks of audio, the R12 is perfect for recording everything from demos to release-ready songs.
FULLY LOADED
The R12 includes a send effects channel offering reverb, chorus and delay with a dedicated effects return fader. For advanced tones, you can use presets and effects from Zoom's Guitar Lab.
The R12 also has pan and a 3-channel EQ for each track and a compressor on inputs 1 and 2.
TAKE IT EVERYWHERE
The R12 provides up to 5 hours on four AA batteries allowing you to bring your production anywhere. Additionally, you can use the R12 with the included AD-17 power adapter, or a USB battery.
IT STARTS WITH A GROOVE
With 150 preloaded drum loops in a variety of patterns and genres, the R12 provides a versatile rhythm section for any project.
IMPORT AUDIO FILES
Add additional audio samples by importing files into your R12 via Micro SD card or USB thumb drive.
INTERFACE + CONTROL SURFACE
Use the R12 as a stereo audio interface with your favorite DAW or streaming platform, via USB-C. As a control surface, the transport controls and faders make it easy to adjust and control your software during production.
ATTENTION TO DETAIL

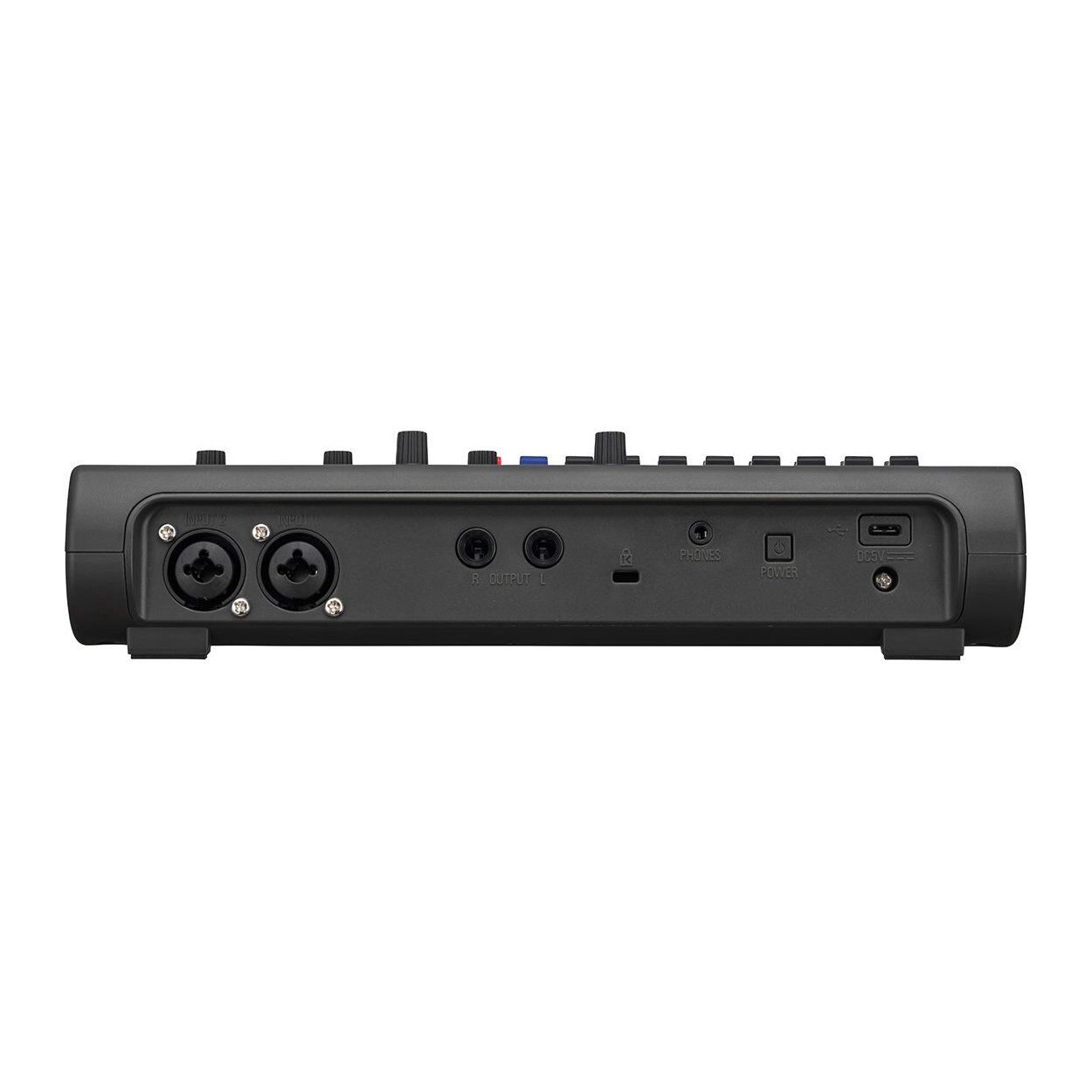

Connections
Connect microphones, instruments or line level devices like keyboards, mixers and more.
Hi-Z
Input 1 on the R12 has a Hi-Z switch, allowing you to plug your guitar directly into the recorder.
Phantom Power
Both inputs on the R12 offer 48V Phantom Power for condenser microphones.
STAY IN TIME. EVERY TIME.
Activate the fully customizable click track with the press of a button. Click balance blends the metronome with your playback audio and routes it to your headphones and/or the main outputs.
ADD SOME SYNTH
The R12 has 18 FM synth instruments built in. They can be played by plugging in a MIDI keyboard via USB-C or programmed using the touchscreen.
R12 FEATURES & TOUR
- Multi-track digital recorder with up to 8 tracks of recording.
- 2.4” Full Color LCD touchscreen display with easy touch and swipe editing
- User friendly graphic interface with on-board editing capabilities
- Battery Powered up to 5 hours (4 AA’s)
- 2 XLR / TRS Combo inputs - with phantom power and HI-Z on input 1
- Send effects channel with 4 options: Reverb, Delay, Chorus, or Guitar Lab preset (choose up to 3 effects from our guitar effects collection including distortions, modulation effects, spacial effects, and much more)
- Built-in compressor for inputs 1 and 2
- Pan and 3-band EQ for each track
- Sequence play - for using backing tracks in a live setting
- Drum loops (150 preloaded)
- Records directly to SDXC cards
- Built-in USB-C audio interface (2-in / 2-out or 2-in/4out) with control surface function
SPECS
INPUTS / OUTPUTS
| INPUTS | MIC/LINE (mono) | 2 |
| OUTPUTS | MASTER OUT | 1 |
| PHONES | 1 |
INPUTS
| MIC/LINE (MONO) | Connectors | 2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT / TRS: TIP HOT） |
| Input gain | +6 ~ +50 dB | |
| Input impedance | XLR: 3.9 kΩ TRS: 3.9 kΩ/1 MΩ (when Hi-Z ON, INPUT 1 only) | |
| Phantom power | +48 V (switchable separately for INPUTS 1 and 2) | |
| Equivalent input noise | –121 dBu or less (IHF-A) at +50 dB/150 Ω input | |
| Frequency response | −1.0/+0.5 dB: 20 Hz – 20 kHz |
OUTPUTS
| MASTER OUT | Connectors | 2 TRS phone jacks (balanced) |
| Maximum output level | +14 dBu | |
| Output impedance | 200 Ω | |
| PHONES | Connectors | 1 stereo 3.5mm mini jack |
| Maximum output level | 45 mW + 45 mW (into 32 Ω load) | |
| Output impedance | 10 Ω |
RECORDER
| Maximum simultaneous recording tracks | 2 | |
| Maximum simultaneous playback tracks | 8 | |
| Recording format | 44.1kHz, 16/24-bit, mono/stereo WAV | |
| Recording media | Cards compatible with microSDHC specifications 4 GB – 32 GB | |
| Cards compatible with microSDXC specifications 64 GB – 1 TB |
TRACK SETTINGS
| EQ | High: 10 kHz, ±12 dB, shelving | |
| Middle: 2.5 kHz, ±12 dB, peaking | ||
| Low: 100 Hz, ±12 dB, shelving | ||
| Pan | L100 – R100 |
EFFECTS
| Input Dynamics | Comp/Limiter/Gate | |
| Patch memory effects | 3 types can be used simultaneously | |
| 50 patch memories | ||
| Guitar Lab supported | ||
| Can be assigned and used as an insert (input) or send effect | ||
| Dedicated send effects | 10 types of spatial effects |
TUNER
| Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD |
CLICK (METRONOME)
| Time signatures | 3/4, 4/4, 6/8 | |
| Tempo range | 40.0 – 250.0 BPM |
RHYTHM LOOPS
| Sound source format | PCM | |
| Number of loops | 150 |
SYNTH
| Sound source format | FM | |
| Polyphony | 8 | |
| Number of sound types | 18 (and a PCM drum kit) |
DISPLAY
| 2.4" (320×240) full-color touchscreen LCD |
USB
| CONNECTOR | USB Type-C | |
| Note: Use a USB cable that supports data transfer. USB bus power is supported. | ||
| AUDIO INTERFACE FUNCTION | 2-in/2-out or 2-in/2-out (iPad) | USB 2.0 Full Speed |
| 44.1 kHz, 16/24-bit | ||
| 2-in/4-out | USB 2.0 High Speed | |
| 44.1 kHz, 16/24-bit | ||
| MASS STORAGE FUNCTION | Device | USB 2.0 High Speed (5 V/200 mA power supplied when host) |
| GUITAR LAB CONNECTION | USB 1.1 Full Speed | |
| DAW CONNECTION (CONTROL SURFACE) | USB 1.1 Full Speed | |
| MASS STORAGE FUNCTION | Host | USB 2.0 High Speed (5V/200 mA power supplied) |
| USB MIDI KEYBOARD CONNECTION | USB 1.1 Full Speed (5 V/200 mA power supplied) |
POWER
| Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH) | |
| AC adapter: ZOOM AD-17 (5V/1.0A) |
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES
| During playback with +48V off and 32Ω headphone load | |
| Alkaline batteries: about 5 hours | |
| NiMH batteries (1900 mAh): about 5 hours | |
| Lithium batteries: about 11 hours | |
| • The above values are approximate. • Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. |
POWER CONSUMPTION
| 5 W maximum |
DIMENSIONS
| 256 mm (W) × 158 mm (D) × 61 mm (H) |
WEIGHT (including batteries)
| 827 g |
| NOTE: 0 DBU = 0.775 VRMS |
