DSP processing with component protection Master Level control with Activity indicator
3 Performance modes, Punch, Smooth and Deep Recessed control panel
Overview

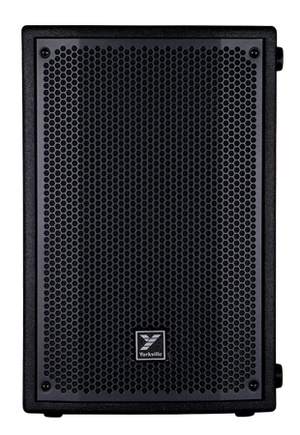

Providing 1000 watts with efficient speaker components, the YXL10SP provides an affordable solution to add bass to your live sound without overwhelming the mix in smaller venues.
Specifications
System Type
Powered Sub Woofer
Active or Passive
Active
Power Rating (Watts)
500 Watts Program (1000 Watts Peak)
Max SPL (dB)
125dB Peak
Frequency Response (Hz +/- 3dB)
50 - 100 (Hz +/-3dB)
LF Driver(s)
10-inch (2.4-inch voice coil)
LF Power Rating(Watts)
500 Watts Program (1000 Watts Peak)
LF Amplifier Type
Class D
Cooling Scheme
Speed controlled fan
Power Cable
Yes
Power Switch
Yes
Inputs
2 x Main IN XLR Female/ 1/4" Combi, 2 x LINK XLR Male
Level Controls
Master
EQ Controls
Push, Smooth, Deep
Limiter
Multiband excursion, RMS, Rail
Feet
Rubber
Bar Handles
1 x Top
Enclosure Materials
12mm Plywood, Metal grille
Grille
Powder Coated Steel with Grille Cloth
Other Details
1 Stand Adapter (Side) Enclosure Finish: Textured Latex Paint
Dimensions (DWH xbackW, inches)
18.25 x 12 x 18.75
Dimensions (DWH xbackW, cm)
47 x 31 x 48
Weight (lbs/kg)
34.5/15.6
Specifications subject to change without notice
