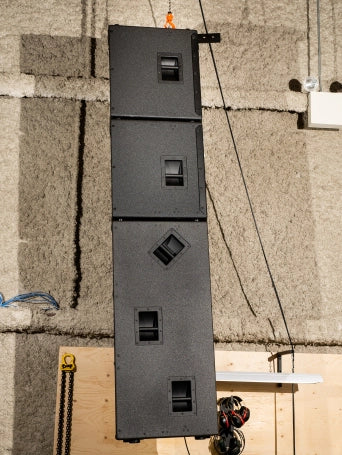

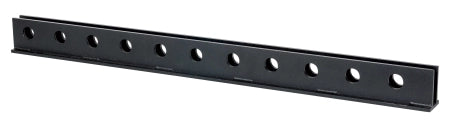

The pickup bar is simply slid into the integral flying rail on the top or bottom of the SA153 and/or SA315S cabinets and secured in place with the provided hardware.
There are eleven pickup points along the length of the bar, allowing for easy tilting of the array.
Features
4x Wide Column Flying Bumper

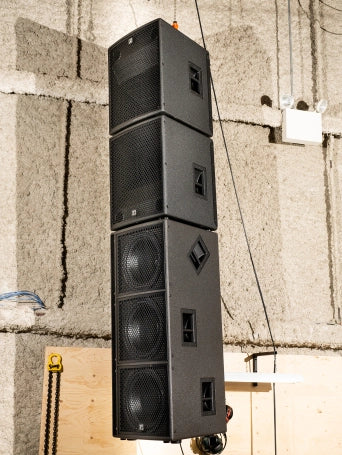

Can Safely Handle 2x SA153 and 1x SA315S Cabinets in Each Column (12 Cabinet Max Hang)
2x Extension Tilt Bars Included
Specifications
Max Load Capacity
500 lbs / 226kg at 7:1 Safety Ratio
Max Cabinet Capacity
One Single Column Hang (2x SA153 + 1x SA315S Max. Total Cabinet Hang = 3)
Material / Construction
7 Gauge Welded Steel Plate
Finish
Black Powder Coat
Required Shackle Size (Not Included)
5/8" (Sample Crosby#1018473)
Overall Dimension DxWxH
26.75" x 1.56" x 2.19" (68 cm x 4 cm x 5.6 cm)
Weight
7 lbs / 3.18 kg
Specifications subject to change without notice
