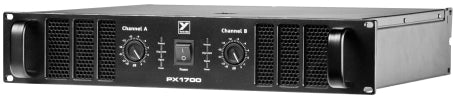

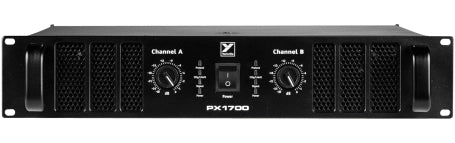

The PX1700 is a two-channel power amplifier that’s ideal for small and medium venues using passive speakers.
The Class H design delivers 850 watts per channel at 2Ω, and can be bridged to deliver 1700 watts at 4Ω. The rear panel features XLR and 1/4" inputs, as well as binding post and speakON® outputs, for easy integration into virtually any system.
Featuring transparent limiting, advanced protection, and a toroidal transformer to reduce hum and interference, the PX1700 provides exceptional sound and reliability for clubs, concert halls, and houses of worship.
Features
- 2-Channel Class H Design
- 850 W per Channel @ 2Ω
- 1700 W Bridged @ 4Ω
- Balanced XLR and 1/4" TRS Inputs
- Binding Post and speakON® Outputs
- Short Circuit, DC, and Thermal Protection
- Soft Turn-On Circuit to Protect Speakers
- All-Steel Construction
Specifications
| Amplifier class |
Class H |
| Continuous Average Power AT 8 Ohms (Watts) |
400 W |
| Continuous Average Power AT 4 Ohms (Watts) |
600 W |
| Continuous Average Power AT 2 Ohm (Watts) |
850 W |
| Continuous Average Power Bridged (Watts) |
1700 W |
| Burst Average Power AT 8 Ohms (Watts) |
600 W |
| Burst Average Power AT 4 Ohms (Watts) |
1000 W |
| Burst Average Power AT 2 Ohms (Watts) |
850 W |
| Burst Average Power Bridged (Watts) |
1700 W |
| Frequency Response (Hz CM +/- 1dB) |
30 Hz - 20 kHz |
| Hum and Noise (un / Aweighted -dB) |
-100 dB Unweighted |
| THD -1kHz- 4 OHMS |
<0.1% |
| THD - 20Hz-20kHz CM 4 Ohms |
<0.1% |
| Damping Factor (30 Hz - 400 Hz AT 8 Ohms) |
>300 |
| Crosstalk (1kHz / 20Hz-20kHz) |
-75 dB / -60 dB |
| Input Impedance - Bal/Unbal (Ohms) |
30 kΩ / 15 kΩ |
| Input Sensitivity (Vrms) For Full Power Out |
1.4 V |
| Max Voltage Gain (dB) |
31 dB |
| Stereo / Mono / Bridge )S/M/B) |
Yes |
| Protection |
DC, Load, Thermal |
| Limiter |
Peak (Defeatable) |
| High Pass Filter |
No |
| Cooling |
Fan |
| Cooling Path |
Front to Rear |
| Inputs - XLR |
Yes (x2) |
| Inputs - 1/4 IN Jacks |
2 |
| Outputs - Speakon 4-pin |
2 |
| Outputs - Binding Post |
2 |
| Power Consumption (typ/max) |
700 W / 1500 W |
| Rack Spaces |
2 |
| Transformer Type |
Toroidal |
| Exterior Finish |
Black Paint |
| Dimensions (DWH /D fm ears inches) |
16" x 19" x 3.5" (40.6 cm x 48.3 cm x 8.9 cm) |
| Weight (lbs / kg) |
35 lbs / 16 kg |
Specifications subject to change without notice
