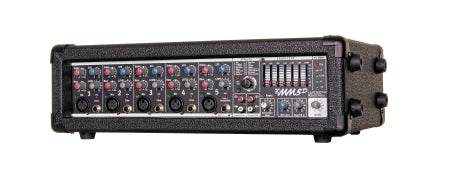

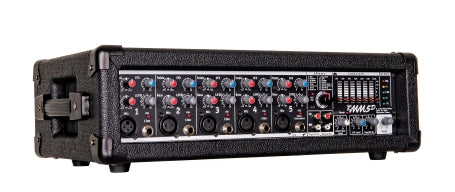

The MM5D is Yorkville Sound’s most compact and affordable powered mixer. It’s designed to pair with passive loudspeakers for live sound, installations, and presentations.

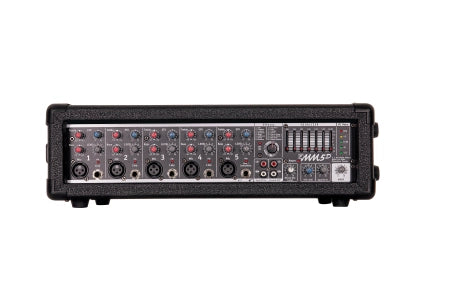

There are five input channels, each with an XLR mic input, 1/4" line input, and 2-band EQ. The master section features a 24-bit DSP engine with sixteen effects including reverb, delay, and modulation. A 7-band graphic equalizer lets you fine-tune the total mix.
The power amplifier delivers 90 watts in stereo, providing a convenient solution for boardrooms, coffee shops, and houses of worship. The amp can be placed horizontally or vertically and weighs less than 20 pounds, so it’s a perfect fit in every regard for small stages
Features
- 2x 90 W (4Ω)
- 5 Input Channels
- Onboard Digital Effects with 16 Algorithms
- 7-Band Master Graphic EQ

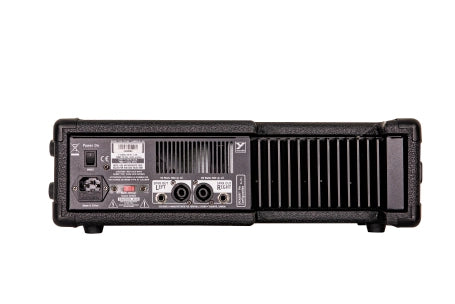

- 2x 1/4" and speakON® Outputs
- Stereo RCA In / Out
Specifications
| Number of Channels |
5 |
| Channel EQ |
2-Band |
| Inputs |
5x XLR
5x 1/4" TRS Channel Inputs
1x Stereo RCA |
| Phantom Power |
Global 48 V (Always On) |
| Internal Effects |
16 Algorithms, 24-Bit |
| Auxiliary Sends |
EFX (to Internal Effects) |
| Outputs |
2x 1/4"
2x speakON®
1x Stereo RCA |
| Master EQ -1 (type/Channels/Range -dB) |
7-Band Graphic |
| Mixer - Frequency Response |
40 Hz - 20 kHz |
| Power Output |
2x 90 W (4Ω)
2x 60 W (8Ω) |
| THD (1kHz) |
Less than 0.1% |
| Power Consumption (typ/max) |
1.0 A @ 120 VAC / 0.5 A @ 230 VAC |
| Protection |
Clip, Limiter, Thermal Shutdown |
| Cooling |
Passive Heatsink, Internal Fan |
| Dimensions (DWH inches) |
9" x 17.75" x 6" (22.9 cm x 45 cm x 15.3 cm) |
| Weight (lbs/kg) |
19.2 lbs / 9.7 kg |
Specifications subject to change without notice
