The EL12M is the first dedicated powered stage monitor from Yorkville Sound.
It delivers 1200 watts of peak power (600 watts program) through a 12" coaxial speaker and 1" high-frequency driver in a stage-ready enclosure that weighs less than 40 pounds.

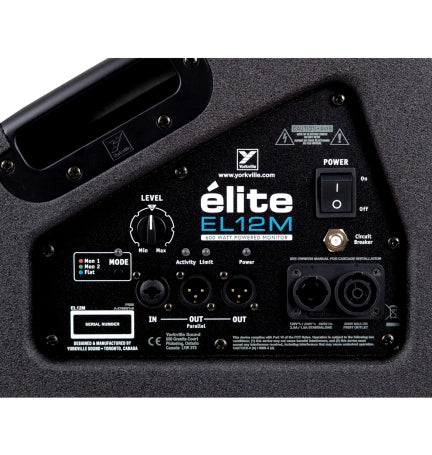

Its two selectable monitor modes are voiced for vocals, and its flat mode is ideal for instrument sources like synthesizers, electronic drum kits, or for use as an FRFR solution for amp modelers. It also features an XLR / 1/4" input jack, two XLR outputs, and powerCON® TRUE1 input and output connectors, so it integrates easily into any PA system.
Portable, powerful, and built like a tank, the EL12M was carefully designed for professional performance on stage.
Features
1200 W Peak Power (600 W Program)
12" Coaxial Woofer with 2.5" Voice Coil
1" HF Driver with 1.75" Voice Coil
3 Voicing Modes
Onboard Limiter
Combi-Jack XLR / 1/4" Input and 2 XLR Outputs
powerCON ® TRUE1 Input and Output
15mm Birch Plywood Construction
Made in Canada
Specifications
System Type
Powered Monitor
Power Rating
1200 W Peak (600 W Program)
Max SPL
132 dB Peak (120 dB Continuous)
Frequency Response
60 Hz - 20 kHz (+/- 3 dB)
Dispersion (H x V)
60° x 60°
Crossover Frequency
1500 Hz
HF Driver(s)
1" with 1.75" Voice Coil
LF Driver(s)
12" Co-axial Woofer with 2.5" Voice Coil
Power Cable
powerCON® TRUE1 Connectors (Input / Output)
Power Consumption (typ/max)
2.5A, 6A
Inputs
1x Combo-jack (XLR / 1/4”)
Outputs
2x XLR
Level Controls
Yes
EQ Controls
Mon 1, Mon 2, and Flat Modes
LED Indicators
Power, Activity, Protection, Modes
Bar Handles
2x Side, 1x Bottom
Pole Mount Adapter
No
Enclosure Materials
15mm Birch Plywood
Grille
Powder-Coated Steel
Covering / Finish
Textured Paint
Dimensions (DWH)
17" x 16.3" x 12.2" (43.2 cm x 33.8 cm x 31 cm)
Weight
38.7 lbs / 17.6 kg
Specifications subject to change without notice
