Coliseum loudspeakers are designed for installation in home, retail, restaurant, office, school, and house of worship spaces. Whether you need discrete in-ceiling speakers, a horn for outdoor paging, or a flown array of powered cabinets, Coliseum combines high-fidelity audio with clean, minimalist aesthetics that blend naturally into any environment.

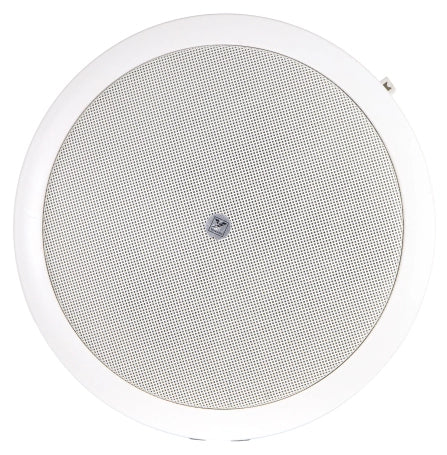

Designed for lively club, restaurant, and retail environments, the 60-watt C165W is Yorkville Sound's most powerful ceiling-mounted loudspeaker. Featuring a coaxial 6.5" woofer and 3/4" titanium-coated tweeter, it delivers superior sound quality for background music and paging systems.
It supports 70-volt and 100-volt operation, with multiple taps for optimizing the coverage and balance of your speakers.
An optional adapter (C165CBRKT) is sold separately for mounting the C165W in drop ceilings
Features
Ceiling Mount Loudspeaker
60 Watt Program Power
110 dB Max SPL
Coaxial 6.5" LF Driver and 3/4" HF Driver
70 Volt Taps at 7.5, 15, 30 or 60 Watts
100 Volt Taps at 15, 30 or 60 Watts
C165CBRKT Suspended Ceiling C-Bracket Sold Separately
Specifications
System Type
Celing Speaker
Active or Passive
Passive
Power Rating
60 W
Nominal Impedance (Ohms)
8Ω or 70 / 100 V
Sensitivity (dB AT 1Watt/1m)
92 dB
Max SPL
110 dB
Frequency Response (Hz +/- 3dB)
100 Hz - 20 kHz
Dispersion (H x V)
120º x 120º
Driver Configuration
1x 6.5" LF Driver, 1x 3/4" HF Driver
Inputs
Screw Terminals
No Tap
7.5, 15, 30, 60 W @ 70V
Optional Flying Hardware
C165CBRKT
Enclosure Materials
Aluminum / ABS Plastic
Grille
Metal
Dimensions (DWH)
10" x 10" x 7" (25 cm x 25 cm x 18 cm)
Weight
7.3 lbs / 3.3 kg
Specifications subject to change without notice
