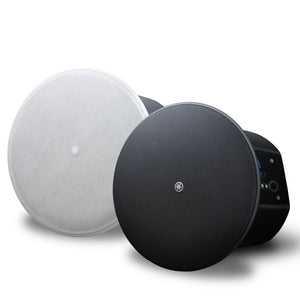

Yamaha designed the new VXC and VXS speakers to accommodate a growing list of applications in the installation market. While these speakers deliver quintessential Yamaha sound quality, they have also been carefully designed for safe and easy installation. Featuring both ceiling and surface mount options, these speaker series include a comprehensive range of models that are available in either black or white, or can be painted to match the interior of any application.
Ceiling speakers for a variety of applications
VXC Series in-ceiling loudspeakers combine premium acoustical performance with an elegant industrial design. Available in three different models each with varying coverage pattern and frequency response, these plenum listed (UL 1480) loudspeakers enable integrators to select a loudspeaker best suited for the venue and application. An internal transformer enables high-impedance operation while the 8-ohm bypass switch supports low impedance functionality helping simplify inventory and project management responsibilities.
Safe, seamless installation

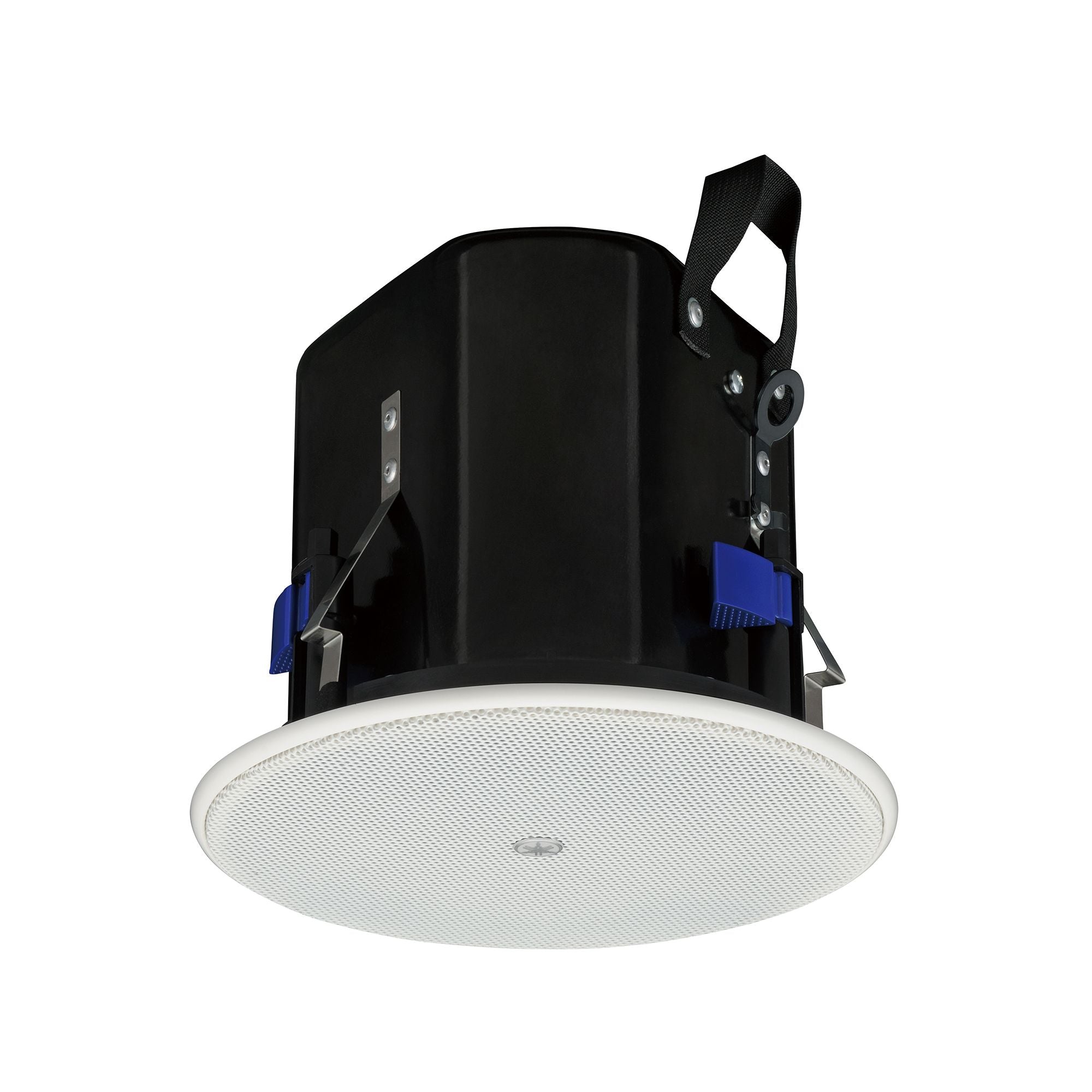

VXC Series loudspeakers feature anti-drop tabs that enable them to be temporarily mounted in the ceiling for a safer and easier installation process. Moreover, an attached carrying handle makes it possible to carry enclosures with a single hand grip or clipped to a work belt via carabiner freeing hands for improved personal safety.
Pursuing the best sound for installation
Superb music reproduction and articulate speech intelligibility for clear announcements is at the heart of all VXC Series loudspeakers. The smallest details from network component selection and placement of acoustic absorption material to custom designed transducers and enclosures built to optimize low frequency response, these have all been integrated to provide unprecedented natural sound reproduction."

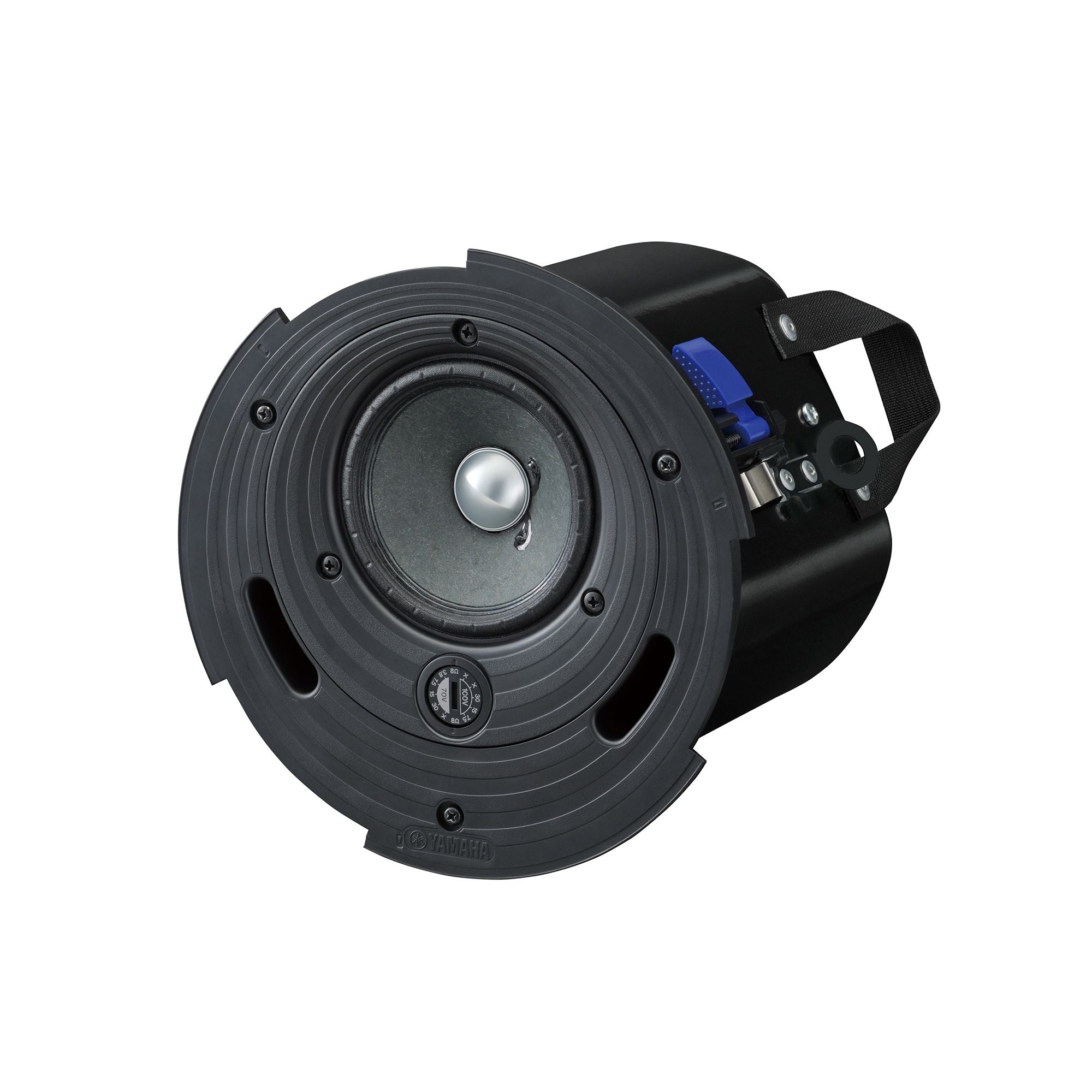

Several aspects of these speakers' design reflect a strong emphasis on functionality as well as the aesthetic features of their construction—effectively enhancing sound quality and speaker performance without disturbing the interior décor of the installation. This concept is evident in the hexagonal design featured on the grille that actually improves sound clarity by raising the aperture ratio. The innovative design of the VXC's tweeter improves sound clarity by providing unrestricted woofer movement.
Paintable grilles for your unique room design
VXC Series feature paintable grilles enabling VXC loudspeakers to easily match the décor and interior design of any environment. With grilles that cover the entire baffle, this eliminates the need for messy paint shields and the enclosures can be installed while grilles are off being painted saving time and money.
- Type: Full Range with Back Can, Bass-reflex
- Component: 4" (10 cm) Full Range
- Coverage angle (500 Hz – 4 kHz on average): 130° conical
- Nominal impedance: 8 Ohms
- Power rating (IEC, 100h)
- Noise: 30 W
- PGM: 60 W
- Max: 120 W
- Sensitivity (1W, 1m): 87 dB SPL
- Maximum SPL (Calculated, 1m): 108 dB SPL
- Frequency range (-10 dB): 80 Hz – 20 kHz
- Connector: Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
- Max. wire size: 12 AWG (2.5 mm2)
- Transformer taps:
- 70 V 30 W, 15 W, 7.5 W, 3.8 W
- 100 V 30 W, 15 W, 7.5 W
- Overload protection: PolySwitch
- Magnetically shielded: No
- Enclosure shape: Back can
- Back can material: Steel 1mm, Black
- Baffle material: HIPS
- Grille material: Powder coated perforated steel (t=0.6 mm)
- Trim Ring: ABS
- Aperture ratio: 51%
- Finish: White painting (approximate value: Munsell 5Y9/05)
- Dimensions (Speaker only): 8-7/8" dia. x 7-5/8" H
- Net Weight (Speaker only, 1 piece): 5.7 lbs
- Cutout size diameter: 7 5/16"
- Required ceiling board thickness: 1 mm – 35 mm
- Conduit Tube Up to 1/2"
VXC6 / VXC6W
VXC4 / VXC4W
|Speaker type||2-way, Acoustic suspension||Full-range, Bass-reflex|
|Frequency range (-10dB)||56Hz - 20kHz (Half-space:2π)||80Hz - 20kHz (Half-space:2π)|
|Nominal coverage||110° conical (Half-space:2π)||130° conical (Half-space:2π)|
|HF||0.75" Soft dome||-|
|Transformer taps||100V||60W (170Ω), 30W (330Ω), 15W (670Ω)||30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ)|
|70V||60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)||30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ)|
|SPL||Sensitivity (1W; 1m on axis)||86dB SPL (Half-space:2π)||87dB SPL (Half-space:2π)|
|Peak (Calculated)||111dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)||108dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)|
|I/O connectors||1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -)||1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -)|
|Finish||VXC6: Black / VXC6W: White||VXC4: Black / VXC4W: White|
|Dimensions||Diameter||286mm (11.3")||225mm (8.9")|
|D||205mm (8.1")||195mm (7.7")|
|Net weight||4.4kg (9.7lbs)||2.6kg (5.7lbs)|
|Cutout size||Ø247 mm (Ø9 3/4")||Ø186 mm (Ø7-5/16")|
|Required ceiling board thickness||5 mm – 35 mm||5 mm – 35 mm|
|Accessories||O-ring, Tile Rail, Cutout Template||O-ring, Tile Rail, Cutout Template|
|Packaging||Packaged in pairs||Packaged in pairs|
|Certificate||UL1480, UL2043, NFPA70, CE, EAC, RoHS||UL1480, UL2043, NFPA70, CE, EAC, RoHS|
|Options||-||PK-C4B / PK-C4W: Pendant-mount kit|
