Description
- 5.8 GHz True Diversity wireless system
- High-resolution 24-bit/48 kHz audio
- Up to 5 hours of battery life
- 6 wireless channels
- Wireless range: up to 100 feet
- Compatible with passive and active pickups
- Automatically selects the best wireless channel

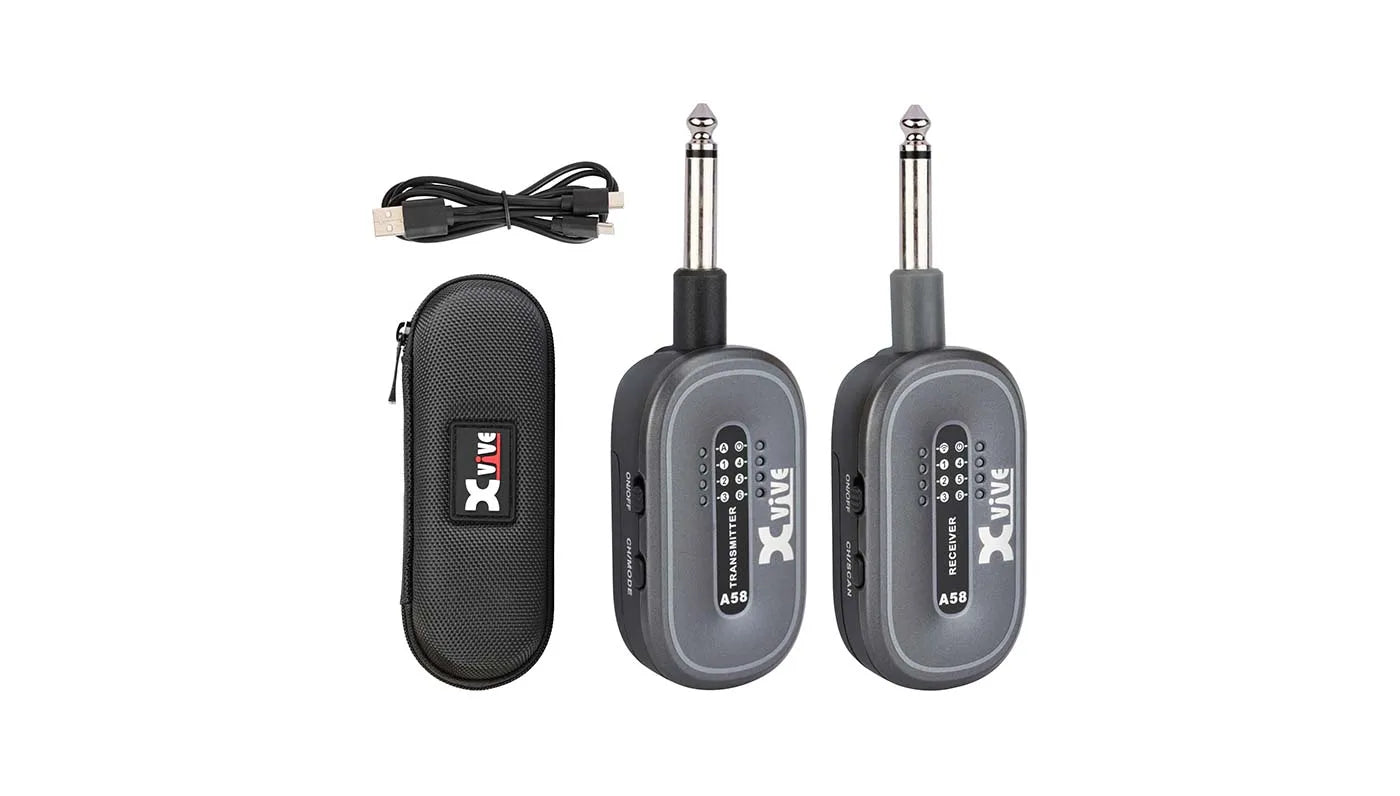

- Includes transmitter, receiver, USB-C cable, case
- Open-battery-compartment design
- For guitar, bass and any instrument with a 1/4" output jack
SOUND GREAT WITH 5.8
The 5.8 GHz frequency range is less crowded than 2.4 GHz, so with the A58 system you’re less likely to encounter interference from other wireless devices in the area. Enjoy rock-solid wireless connections with hi-resolution 24-bit/48kHz audio, imperceptibly low latency (5 ms), and super-clean sound (signal-noise ratio: 110 dB).
RANGE ROVER
A58’s astounding 100-foot wireless range gives you the freedom to go anywhere—onstage, or off!
ACTIVE OR PASSIVE
A58 offers both Passive and Active modes, so you can use instruments with any kind of pickup, from vintage passive to high-gain active.
SMART CHANNEL SCANNER
The A58 system offers a choice of six different wireless channels to choose from. But here’s the best part: it’s able to scan the available channels and automatically choose the one with the strongest, clearest signal! Each time you’re in a new venue, press the scan button on the receiver to find and set the best channel, and then set the transmitter to the the same one. When you turn off your transmitter and receiver between sets, and turn them on again, your most recent channel selection will be recalled.
ON THE CASE

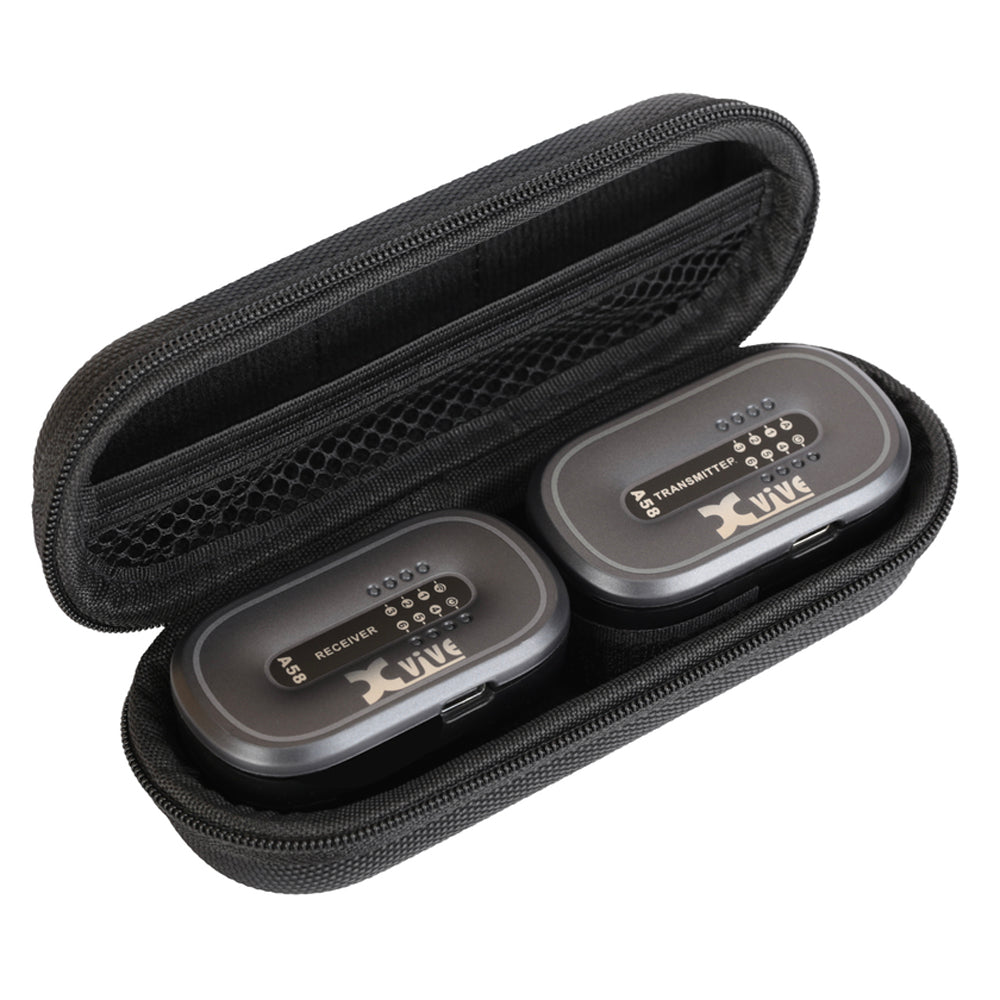

A rugged, compact carry case is included, to protect your transmitter, receiver and charging cable wherever you go.
CHARGE IT

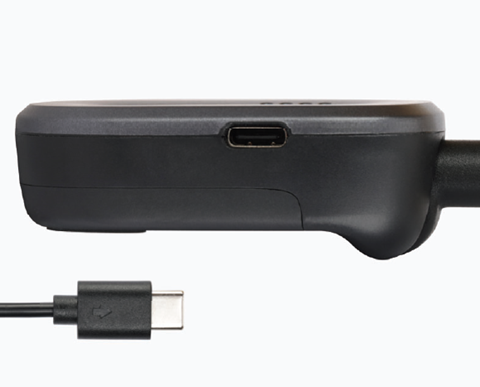

Charge the transmitter and receiver at the same time using the dual USB-C cable and any 5V 2A USB power supply. Charging for two and a half hours gets you 5 hours of play time; 1.25 hours gets you 2 hours of play time, and 30 min of charging gets you 1 hour. The units can be used while charging, but keep in mind that it’s best for the longterm life of the batteries if you don’t leave them plugged in and fully charged for extended periods.
MAKE CONNECTIONS
Any connection you normally make with a ¼” cable can be replaced with a wireless connection: The A58 transmitter can connect to your instrument or effect pedal, for example, while the receiver can connect you your amp, amp modeler or pedalboard. You could use two sets in one rig—one from your instrument to your effects, and another set from your effects to your amplifier.
OPEN CONCEPT
The A58 units have an open-battery-compartment design, which facilitates the testing and servicing of the onboard lithium battery by qualified repair technicians.
Specifications
|
WIRELESS TYPE |
5.8 GHz |
|
WORKING RANGE |
>100 feet line-of-sight |
|
FREQUENCY RESPONSE |
20 Hz – 20 KHz (-3 dB) |
|
BATTERY LIFE |
Up to 5 hours |
|
BATTERY TYPE |
3.8V rechargeable Li-ion, 780 mA (onboard) |
|
RF SENSITIVITY |
-90 dBm |
|
TOTAL HARMONIC DISTORTION |
0.1% |
|
RF OUTPUT POWER |
25 mW E.I.R.P. max |
|
OPERATING TEMPERATURE RANGE |
0˚C to 45˚C |
|
CHANNEL COUNT |
Six: up to six A58 sets can be used simultaneously in one area |
|
MAXIMUM LEVEL |
Passive mode: 2.84Vp-p; Active mode: 7.5Vp-p; volume -10 dB |
|
SAMPLE RATE |
24-bit / 48 kHz |
|
DYNAMIC RANGE |
110 dB |
|
SIGNAL-TO-NOISE RATIO |
110 dB |
|
LATENCY |
5 ms |
|
CHARGING VOLTAGE AND CURRENT |
5V / 2A |
|
IMPEDANCE |
Input: 1 MΩ; Output: 470 Ω |
|
OUTPUT PLUG / INPUT JACK REQUIRED |
1/4” / 6.5 mm TS |
|
DIMENSIONS |
65 mm x 37 mm x 28 mm / 2.6” x 1.5” x 1.1” |
|
WEIGHT |
88 g / 3.1 oz |
