Description
- On stage, DJ, bands and performance
- Bluetooth, TWS models with MP3 player
- Bi-amplified
- Wharfedale Pro drivers
- Portable and powerful
- Huge power output
- RCA, XLR and Jack inputs
- M8 rigging points
LETS LOOK INSIDE
Tourus loudspeakers use the largest HF voice coils in their class. All models use a 1.75″ coil which is unique at this price point.
This custom made Wharfedale Pro compression driver delivers crisp and precise high frequencies, even at extreme volumes.
The internal amplifiers have been tuned specifically for the HF and LF drivers that we have chosen. This makes for perfect power and frequency transfer, resulting in the sonic experience that you’d expect from a Wharfedale Pro active loudspeaker.
WE ARE NOT FANS...OF FANS
ssssssh ! The two amplifiers inside a Tourus are extremely efficient.
So efficient that they can use convection cooling. This means that there are no fans!
Fans inside loudspeakers can add to operational noise, weight, price and can lead to reliability issues. Tourus has no fan! Ssssssh! – Silent and reliable operation.
BLUETOOTH MODELS WITH INTERNAL MP3 PLAYER
The Tourus- MBT models include both BLUETOOTH and USB thumb drive inputs.Its quick and easy to pair your mobile device over BLUETOOTH allowing for high quality wireless audio to stream into the Tourus.
The MBT models also feature TWS pairing. Easily link two Tourus (or should that be…”Tourae”??) together – wirelessly.

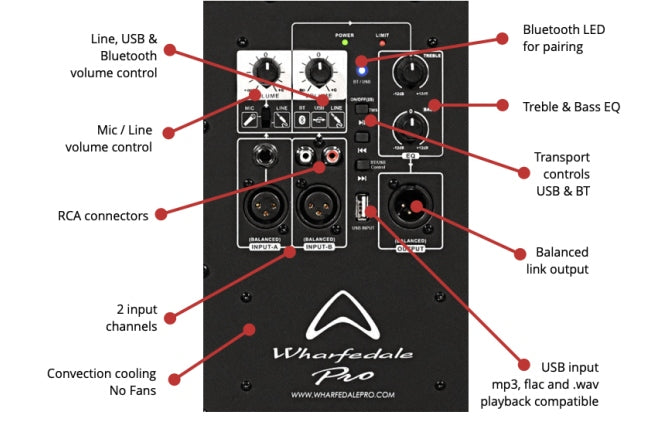

Alternatively, insert a USB thumb drive containing audio files (.wav, .flac, .mp3) and control backing tracks or background music with the transport controls on the rear.
Multiple inputs….with maximum power output!
Specifications:
- Model Name: Tourus AX12-MBT
- System Type: Active 12″ 2-Way Bi-Amplified
- Frequency Response: 50-20kHz
-
High Frequency Transducer
- Type: Compression Driver
- Coil Size: 44.5mm
- Exit Size: 25mm
- Diaphragm Material: Titanium
- Impedance: 8 Ohms
- High Frequency Coverage (H x V): 90 degrees x 60 degrees
-
Amplifiers
- LF Power Amplifier (Class D): 250w Continuous / 500w Peak
- HF Power Amplifier (Class AB): 100w Continuous / 200w Peak
- Crossover Frequency: HI PASS 2.4kHz LOW PASS 2.4kHz
- Equalisation: +/- 12dB Gain for bass and treble
- Power On Protection: Power switch on/off mute
- Thermal Protection: Amplifier shutdown, auto reset
- Driver, DC Short Protection: Yes
- Limiter Indication: Red LED
- Power Indicator: Green LED
- Input Type: Balanced / BT / USB
- Input Connectors: 2 x TRS Jack, 2x RCA and 2x XLR
- Input Impedance: 47KOhms Balanced
- Maximum Input Level: 5V
- Line Input Sensitivity: -10dB
- Mic Input Sensitivity: -40dB
- Line Output Connector: Male XLR
- Power Supply: SMPS
- AC Power Options: 100V – 120V and 220V – 240V
- Power On Indicator: LED/Illuminated Front Logo
-
Rigging/Mounting/Bracket Options
- 4 x M8
- 35mm Pole-mount with lock screw
- 3 handles (2 on the side, 1 on top)
- Optional wall bracket: Wharfedale Pro WPB-2 Speaker Bracket, Black
-
Enclosure
- Enclosure Material: Injection Moulded Polypropylene
- Colour: Black
- Grille: 1.2mm Steel
-
Dimensions (Unpacked)
- Height: 603mm
- Width – Front: 377mm
- Width – Rear: 217mm
- Depth: 347mm
-
Dimensions (Packed)
- Height: 666mm
- Width: 430mm
- Depth: 408mm
- Weight : 17kg
