Description
FULL HD STREAMER/RECORDER
VS-R264
AV Over IP Encoder and Decoder Appliance for Full HD Live Streaming
Features at a glance
- Full HD AV over IP streaming media encoder and decoder for live video streaming.
- Simultaneously records, encodes, streams, and decodes Full HD (1920x1080p) video streams.
- Functions as an external stand-alone encoder for live Full HD streaming environments.
- Provides Full HD live video streaming (1920x1080) to Content Delivery Networks (CDNs) including YouTube, Wowza, Ustream, AWS Elemental MediaLive and CloudFront, etc.
- Perfect for a wide range of live streaming AV installations and environments, including corporate, education, house of worship, government, industrial installations and security.
- H.264 long GOP encoding with bit rates up to 30 megabits over standard networks suitable for 100Mbps or 1Gbps.
- Compatible with major streaming protocols such as RTMP, RTSP and HLS.
- Unicast and multicast streaming support.
- Multiple Simulcast and backup enabled by 3 RTMP Streams Simultaneously.
- The total number of simultaneous streams is eight.
* The streaming performance depends on the resolution settings, transfer rate, and network environment. - Offers RESTful API for integration into control systems in commercial AV installations.

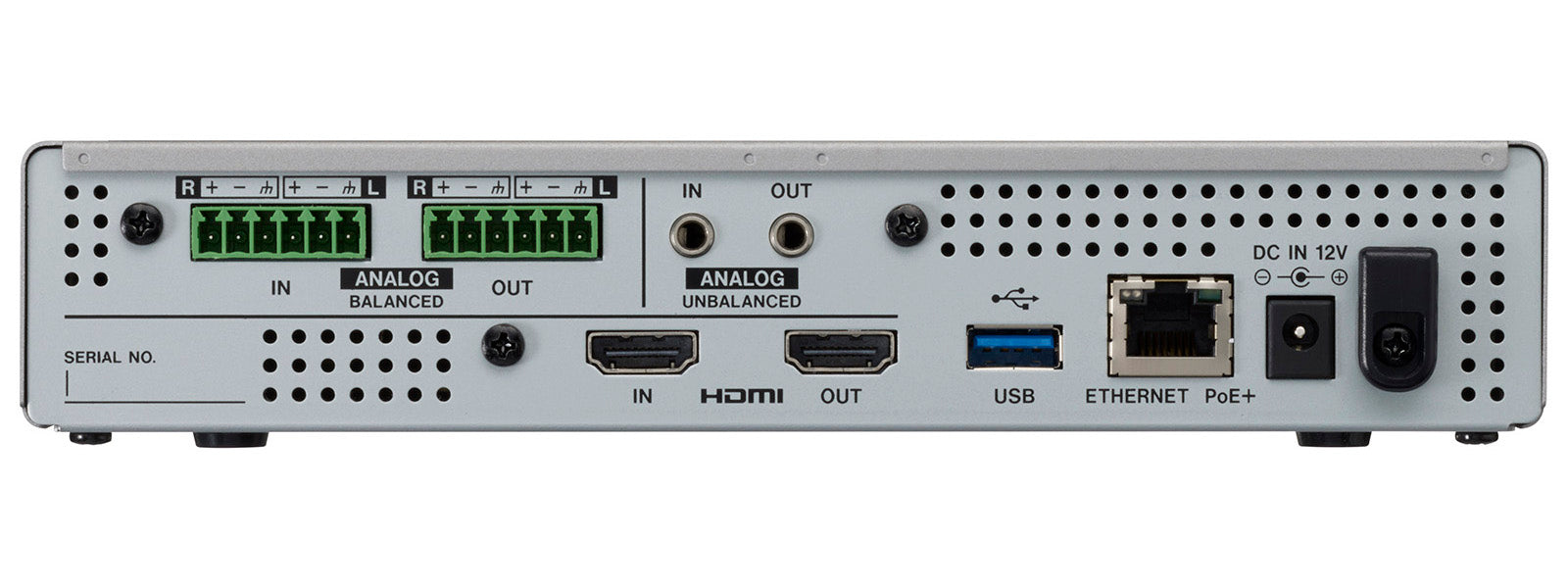

- Versatile audio I/O connections via balanced analog Euroblock low-voltage wire connectors and unbalanced analog 1/8" (3.5mm) mini-stereo jacks.
- Audio can be embedded from analog sources and de-embedded to drive networked audio playback for ceiling speakers.
- Provides digital audio embedded within the HDMI I/O.
- Installed output level configuration function and reference level switching function (up to +20dBu) allows reliable and flexible system structuring.
- Ability to record directly to USB connected media or SD cards via a front panel loading slot.
- Recorded files can easily be uploaded to an FTP server automatically for creating back-up copies or repurposing to the web.
- Web browser based remote control to configure unit settings.
- Supports Gigabit Ethernet.
- Support PoE+ for power supply in addition to the optional AC adapter (TASCAM PS-P1220E; sold separately)
- Compact half-rack size. Included surface rack mountable angles allow installation on different usage scenes and environments.
- With the optional rack-mountable shelf AK-RS1, up to two VS-R units can be installed in a 19 inch rack space.
-
Spec description
* 0dBu=0.775VrmsVS-R264 VS-R265 Video inputs and outputs HDMI IN HDMI v1.4a (Type A receptacle) HDMI OUT HDMI v2.0 (Type A receptacle) Input Resolutions 2160p - 30 / 29.97/ 25 / 24 / 23.98 fps 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps 720p 60 / 59.94 / 50 fps 576p 50 fps 480p 60 / 59.94 fps Frame Rate Limiting on/off Encode Scalling Resolutions Passthrough / 1920x1080p / 1280x720p / 950x540p / 720x576p / 720x480p / 640x360p / 480x270p / 320x180p Passthrough / 3840x2160p / 1920x1080p / 1280x720p / 950x540p / 720x576p / 720x480p / 640x360p / 480x270p / 320x180p Encoding Format H.264 H.264 / H.265 Encoding bitrates 500k to 30M bps Bit rate Control Variable, Constant Key frame interval Seconds 0.25 - 16.5(default: 1) in 0.25 intervals Frames 3 - 1000 Video streaming Supported protocols RTMP, RTMPS, RTSP, HLS, RTP, UDP
* H.265 format streaming only supports RTP and UDP.Number of simultaneous stream 8 (3 x RTMP/RTMPS, 1 x RTSP, 1 x HLS, 2 x RTP/UDP Unicast、1 x RTP/UDP Multicast)
* The streaming performance depends on resolution settings, transfer rate, and network environment.Audio inputs and outputs ANALOG IN (BALANCED) Connectors Euroblock (balanced) 3.81 mm pitch Nominal input level +4dBu(1.23Vrms, when Ref.Level set to other than -9dBFS)
+6dBu(1.55Vrms, when Ref. Level set to -9 dBFS)Maximum input level +15dBu(4.36Vrms, Ref.Level -9dBFS)
+18dBu(6.16Vrms, Ref.Level -14dBFS)
+20dBu(7.75Vrms, Ref.Level -16dBFS)Input impedance 10 kΩ or higher ANALOG IN (UNBALANCED) Connector 3.5mm (1/8") stereo mini jack Nominal input level -10dBV (0.316Vrms) Maximum input level +6dBV (2.0Vrms) Input impedance 10 kΩ ANALOG OUT (BALANCED) Connectors Euroblock 3.81 mm pitch Nominal output level +4dBu(1.23Vrms, when Ref.Level set to other than -9dBFS)
+6dBu(1.55Vrms, when Ref. Level set to -9 dBFS)Maximum output level (switchable) +15dBu(4.36Vrms, Ref.Level -9dBFS)
+18dBu(6.16Vrms, Ref.Level -14dBFS)
+20dBu(7.75Vrms, Ref.Level -16dBFS)Output impedance 200Ω or lower ANALOG OUT (UNBALANCED) Connector 3.5mm (1/8") stereo mini jack Nominal output level -10dBV (0.316Vrms) Maximum output level +6dBV (2.0Vrms) Output impedance 200Ω Output Volume -∞, -72 to +6dB (1dB step) Audio Codec AAC, 64k to 512k bps, 32k/44.1k/48k Hz Video / audio recording Recording media USB Drive, SD/SDHC card Recording bit rates 500k to 30M bps Control input/output ETHERNET / PoE+ Connector RJ-45 Transmission protocol TCP/IP、UDP、HTTP Gigabit Ethernet standard 1000BASE-T (IEEE 802.3ab) Cables Category 5e or faster STP cables USB Connector USB A-type 4-pin Protocol USB 3.0 Other Power PoE Plus Class 4
TASCAM PS-P1220E AC adapter (sold separately)Power consumption 12.2W Dimensions 214(W) × 44.5(H) × 136.1(D)mm (including protrusions) Weight 850g Operating temperature range 0 to 40 °C Included items Installation brackets x2, Euroblock plugs x4, Cable band kit, USB memory(Including TASCAM DISCOVERY, reference Manual), Quick Start guide (Warranty) Audio performance
VS-R264 VS-R265 Built-in AD converter performance Distortion (THD+N) 0.002% S/N ratio 102dB Built-in DA converter performance Distortion (THD+N) 0.00035% S/N ratio 130dB Analog input to Digital (HDMI) output performance
(AAC encoding/decoding 512kbps)Frequency response 20Hz to 16.5kHz (+0.5/-0.5dB, JEITA) Distortion (THD+N) 0.008% or less (Full scale -0.5 dB, JEITA) S/N ratio 94dB or higher (JEITA) Dynamic range 95dB or higher (JEITA) Channel crosstalk 90dB or higher (JEITA) Digital (HDMI) input - analog output performance
(AAC encoding/decoding 512kbps)Frequency response 20Hz to 16.5kHz (+0.5/-0.5dB, JEITA) Distortion (THD+N) 0.007% or less (Full scale -0.5dB, JEITA) S/N ratio Balanced output 113dB or higher (JEITA) Unbalanced output 109dB or higher (JEITA) Dynamic range 96dB or higher (JEITA) Channel crosstalk 100dB or higher (JEITA)
