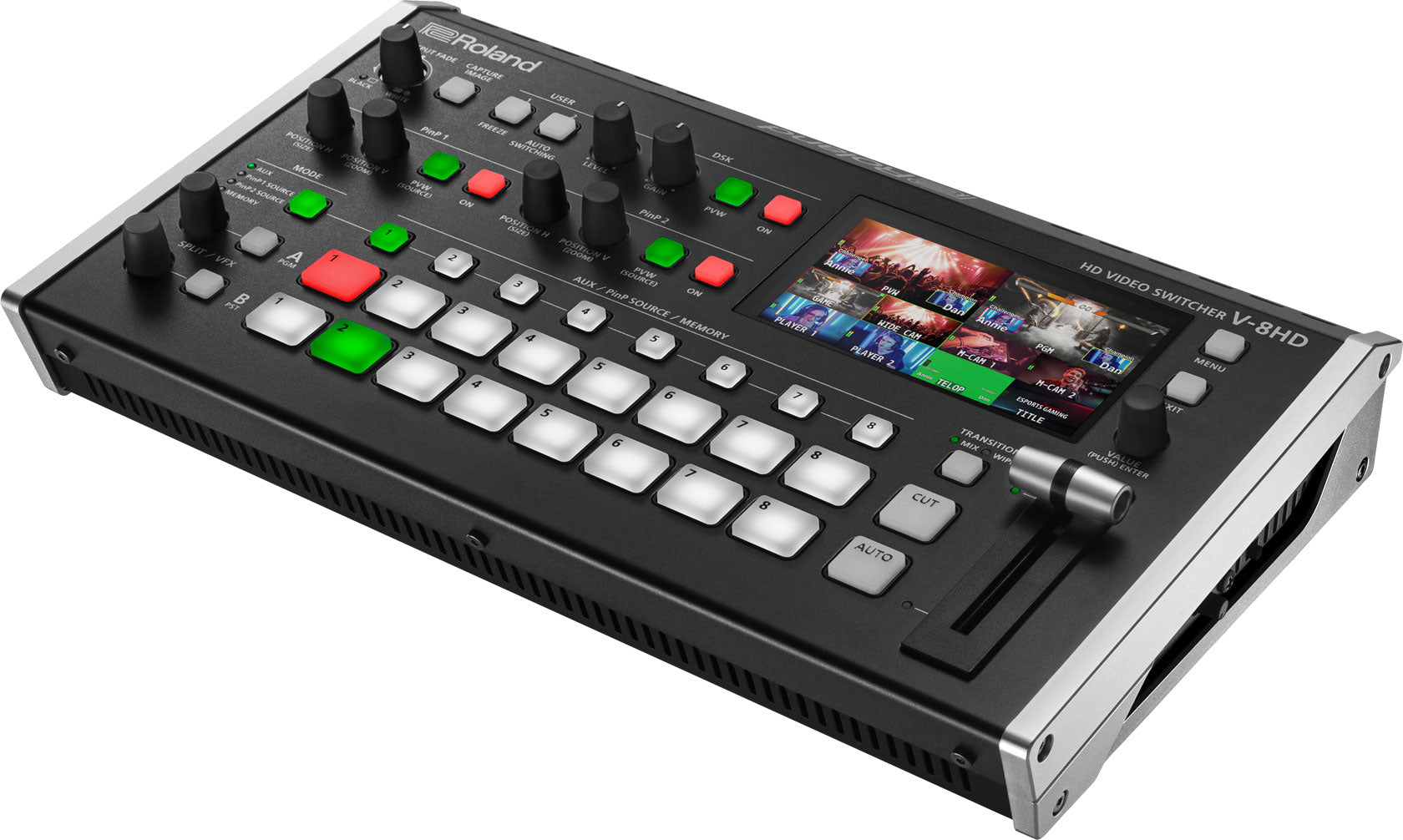

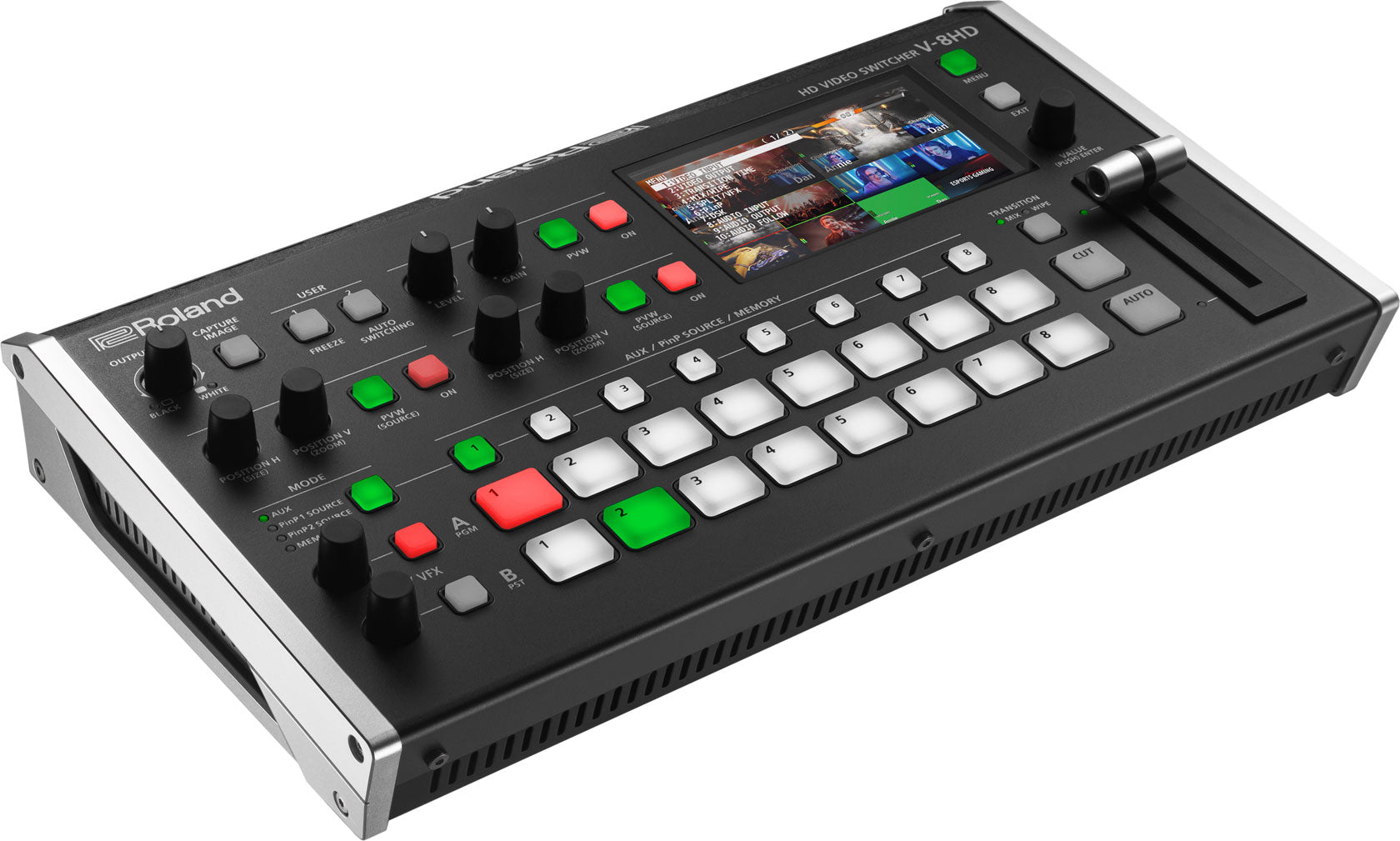

Video Processing |
4:2:2 (Y/Pb/Pr), 8-bit |
Input Connectors |
INPUT 1--6: HDMI type A x 6 * HDCP Supported
INPUT 7--8: HDMI type A x 2 * HDCP Supported * Multi-format Supported |
Output Connectors |
OUTPUT 1--3: HDMI type A x 3 * HDCP Supported |
Supported Video Input Format |
INPUT 1-6 720/59.94p *1, *3 720/50p *1, *4 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3 1080/50i, 1080/50p, 1080/25p *2, *4 1080/23.98p, 1080/24p *2 * The input interlaced video signal is converted to progressive video signal by internal processing. *1 SYSTEM FORMAT = 720p *2 SYSTEM FORMAT = 1080i or 1080p *3 FRAME RATE = 59.94 Hz *4 FRAME RATE = 50 Hz
INPUT 7-8 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2 1080/23.98p, 1080/24p VGA (640x480/60Hz), SVGA (800x600/60Hz), XGA (1024x768/60Hz) WXGA (1280x800/60Hz), SXGA (1280x1024/60Hz) FWXGA (1366x768/60Hz), SXGA+ (1400x1050/60Hz) UXGA (1600x1200/60Hz), WUXGA (1920x1200/60Hz) * The refresh rate is the maximum value of each resolution. * Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60 Hz: Reduced blanking * The input interlaced video signal is converted to progressive video signal by internal processing. *1 FRAME RATE = 59.94 Hz *2 FRAME RATE = 50 Hz. |
Still Image |
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed. PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color * It can be stored up to 8 files in the internal memory. * PNG alpha channel not supported. |
Supported Video Output Formats |
OUTPUT 1-2: 720/59.94p *1, *4 720/50p *1, *5 1080/59.94i *2, *4 1080/50i *2, *5 1080/59.94p *3, *4 1080/50p *3, *5 *1 SYSTEM FORMAT = 720p *2 SYSTEM FORMAT = 1080i *3 SYSTEM FORMAT = 1080p *4 FRAME RATE = 59.94 Hz *5 FRAME RATE = 50 Hz
OUTPUT 3: 1080/59.94p *1 1080/50p *2 *1 FRAME RATE = 59.94 Hz *2 FRAME RATE = 50 Hz |
Video Effects |
Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types) Composition: PinP x 2 (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key) Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output |
Audio
|
|
Audio Processing |
Sampling rate: 24 bits/48 kHz |
Audio Formats |
Linear PCM, 24 bits/48 kHz, 2ch |
Audio Effects |
Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output |
Connectors
|
|
Input Connectors |

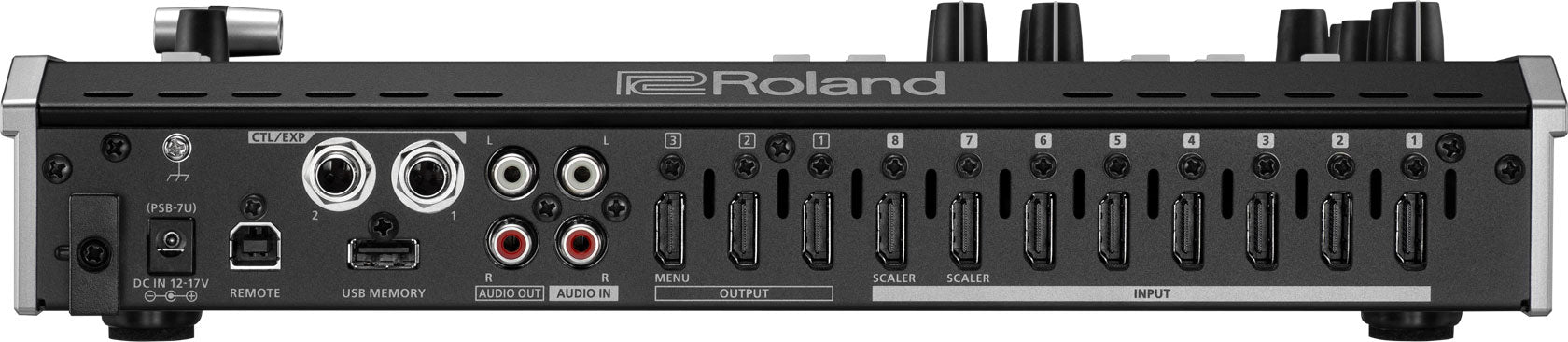

INPUT 1--8: HDMI Type A x 8 AUDIO IN: RCA phono type |
Output Connectors |

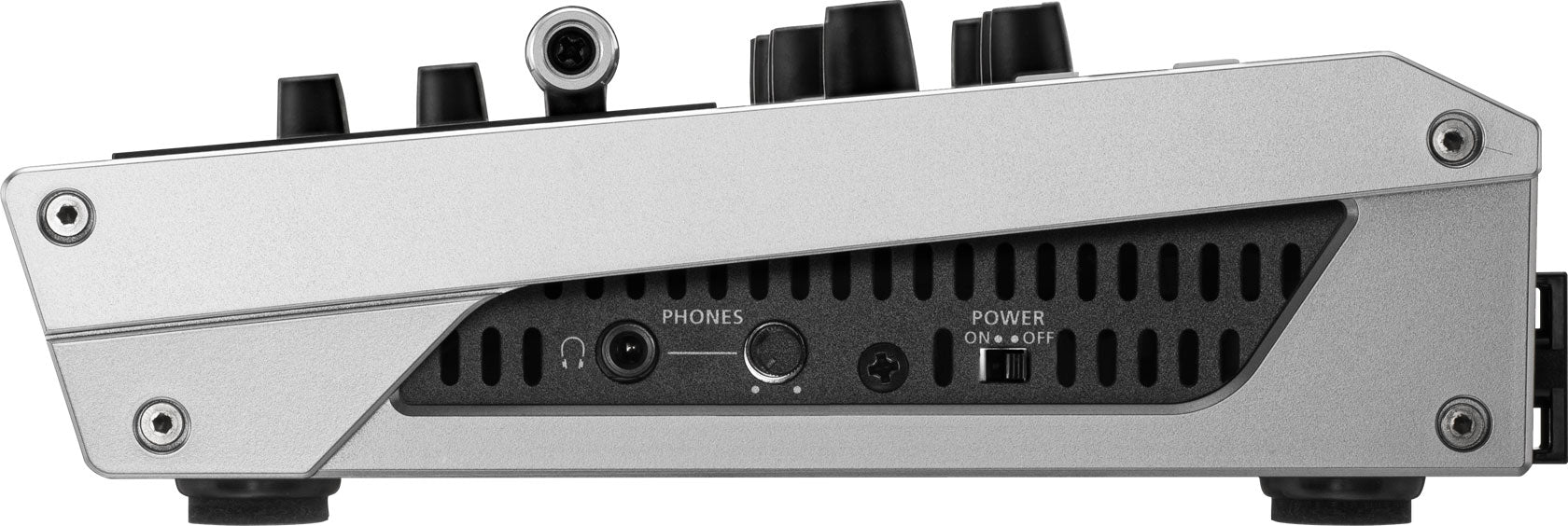

OUTPUT 1--3: HDMI Type A x 3 AUDIO OUT: RCA phono type PHONES: Stereo miniature type |
Other Connectors |
USB MEMORY: USB A type (for USB flash drive) REMOTE:USB B Type (for remote control from iPad) CTL/EXP:1/4-inch TRS phone type |
Other Functions |
Preset Memory (8 types) Panel lock function EDID Emulator Auto Switching Auto Input Detect |
Audio Input/Output Characteristics
|
|
Input Level |
AUDIO IN: -10 dBu (Maximum: +8 dBu) |
Input Impedance |
AUDIO IN: 38 k ohms |
Output Level |
AUDIO OUT: -10 dBu (Maximum: +8 dBu) PHONES: 92 mW + 92 mW (32 ohms) |
Output Impedance |
AUDIO OUT: 1 k ohm PHONES: 10 ohms |
Other
|
|
Display |
4.3" TFT Colour LCD: 480 x 272 dots |
Power Supply |
AC Adaptor |
Current Draw |
3.3 A |
Power Consumption |
39.6 W |
