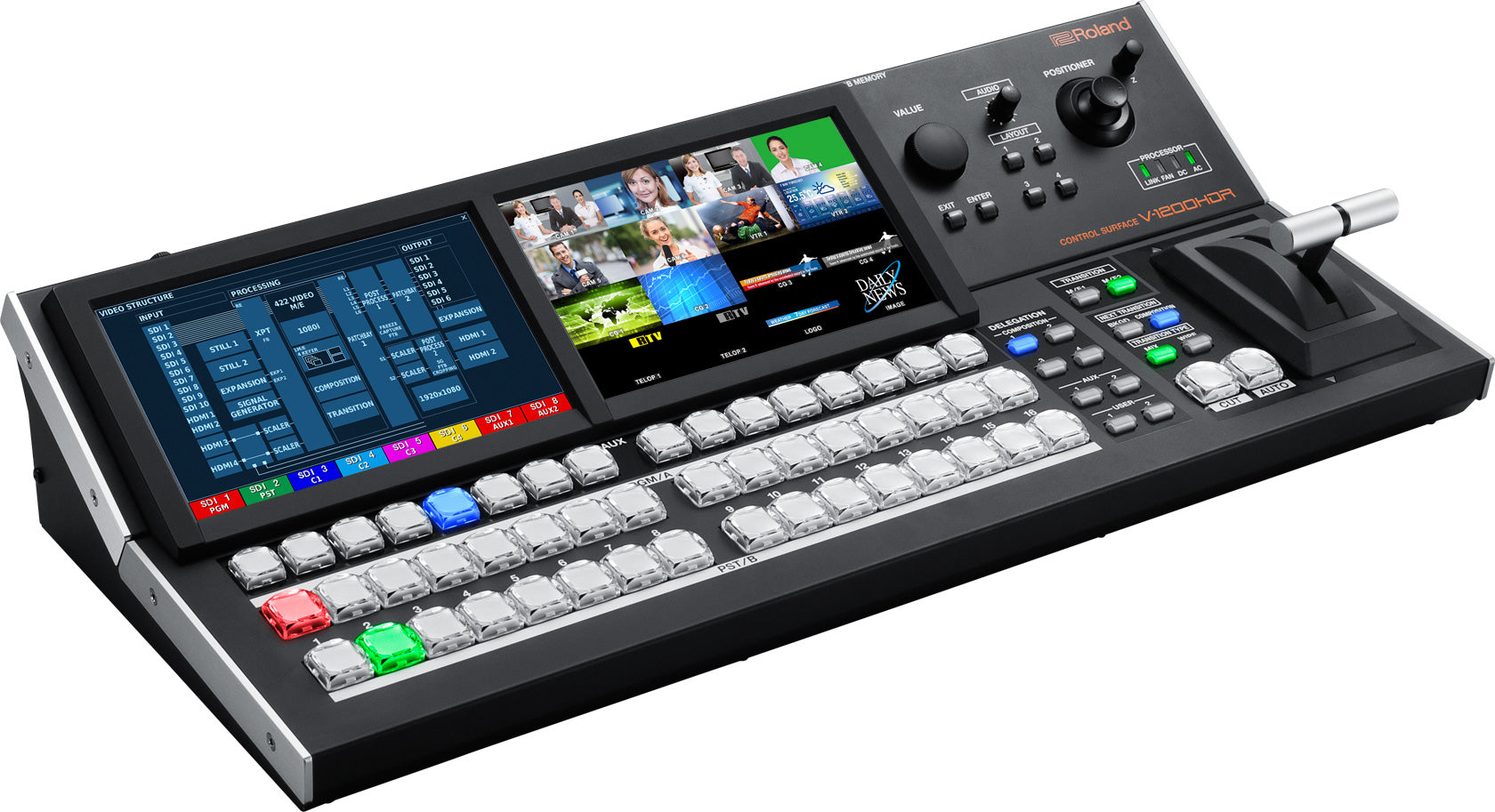

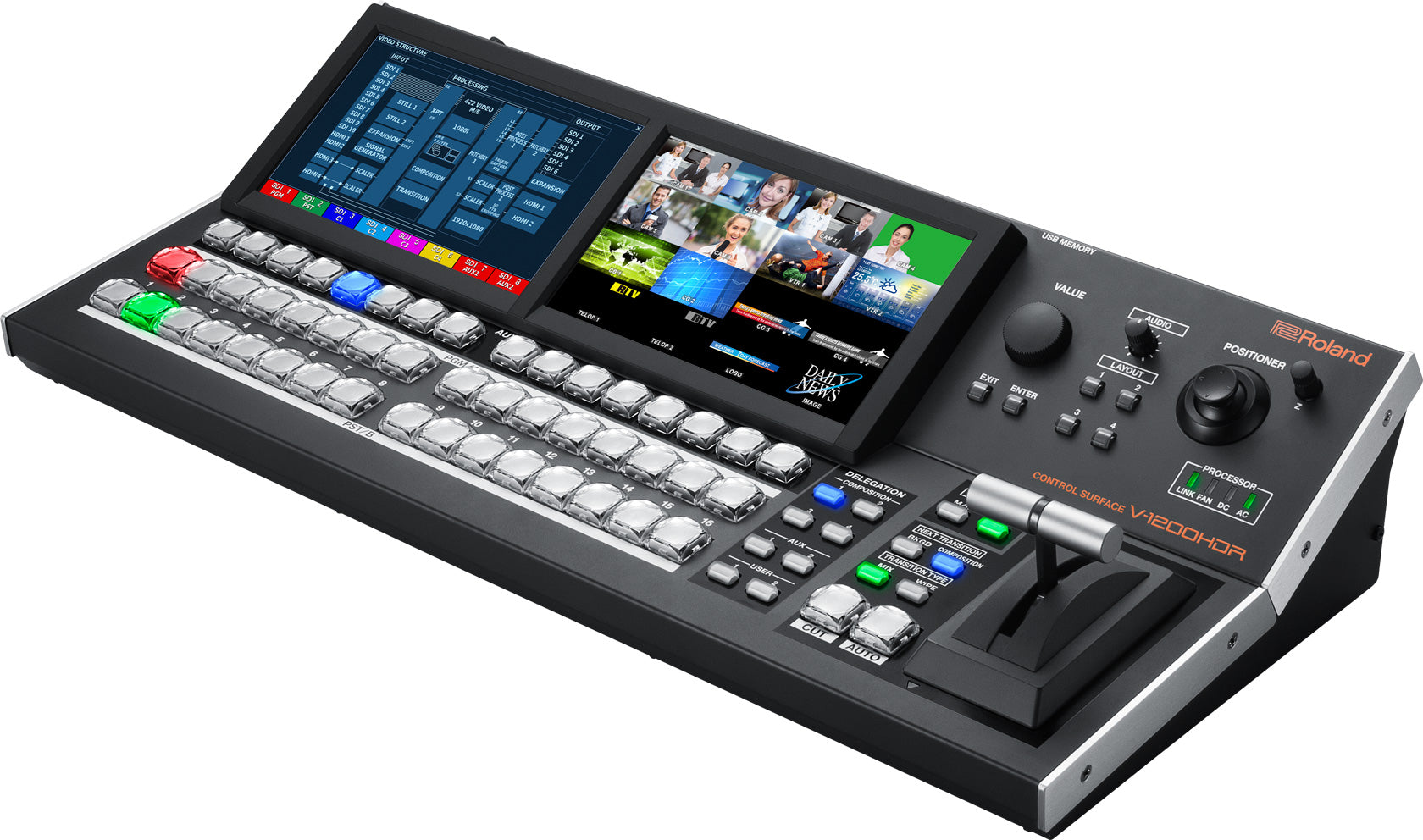

Control all the advanced functionality of your V-1200HD switcher with the optional V-1200HDR Control Surface. The V-1200HDR provides a professional physical control surface for the V-1200HD with dual LCD touchscreens for monitoring and control, a large T-bar for effects and transitions, customization and operation of the mix effects buses, HDMI video outs, and many buttons for source switching.
- Dual 7" LCD Touchscreen Displays
- Transition Control with T-Bar
- 16 Cross-Point Controls
- HDMI Video Out
- Redundant Power Inputs
Dual Touch Monitors
Dual touch monitors let you display different GUIs on the left and right. Incoming video signals from the HDMI connectors on the rear panel can also be displayed.
16 Cross Points
This broad range of cross-point switches affords a commanding view of 16 sources at one time. This is also switchable to either PGM/PST or flip/flop according to operator preference.
Positioner Joystick Control
Controls the PTZ parameters on up to 7 connected remote cameras.
- Display 7 inch Graphic color LCD (touch screen) x 2Video input HDMI (type A) x 2 * HDCP Supported OthersUSB: Type A x 1 * USB Memory, USB: Type B x 1 * Use for future expansion
LAN: RJ45 100Base -TX (Connect to V-1200HD)
PHONES jack: Stereo 1/4-inch phone type x 1 (80 mW + 80 mW, 32 ohms)
Internal mono speaker Power Supply AC Adaptor, DC 9 V to 16 V (XLR-4-32 type) * Can not be used at the same time. Operation Temperature+0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit Dimensions520 (W) x 237 (D) x 111 (H) mm
20-1/2 (W) x 9-3/8 (D) x 4-3/8 (H) inches
* Protruding parts not included.Weight4.3 kg
9 lbs 8 oz Accessories AC Adaptor, Power Cord, Owner's Manual
