Boasting high-resolution audio through its analog and digital I/O alongside the widely acclaimed D-Pre mic preamps makes the UR28M desktop interface the best choice for individual musicians and producers of small-scale projects. The 3x3 monitor matrix for switching between setups, the DSP-powered monitoring and native VST 3 plug-ins in the UR28M provide an eminently flexible recording experience.
New Firmware Update
Get new funcionality for your UR28M such as iPad connectivity and new guitar amp simulator effects with the free version 2 update.
features at a glance
24-bit/96 kHz 6x8 USB 2.0 audio interface
With a maximum sampling rate of 96 kHz and a resolution of 24 bits, the UR28M delivers pristine quality in any recording and mixing situation.
Two Class A D-PRE mic preamps
Yamaha's highly-acclaimed D-PRE preamps deliver a truly transparent and beautifully detailed sound that is unrivaled in this class.
Latency-free DSP-powered monitoring with REV-X reverb, Sweet Spot Morphing Channel Strip and Guitar Amp Classics.
S/PDIF digital I/O
S/PDIF coaxial digital input and output for connection of external pro-audio equipment.
Digitally controlled monitor level control with DIM, Mono and Mute fed by 3x3 monitoring matrix
Compatible with major recording software
The UR28M is compatible with all major audio editing, mastering, and music production software supporting ASIO, Core Audio, or WDM standard.
The CC mode* provides connectivity with the iPad and iPhone through Apple's iPad Camera Connection Kit or Lightning to USB Camera Adapter.
Cubase AI included
Based on the same core technologies as the popular Cubase DAW, CUBASE AL offers an intuitive feature set for composing, recording, editing and mixing.
Cubasis LE included
CABASIS LE is a streamlined version of Steinberg’s popular iOS music production app, offering professional music production on your iPad.
Basic FX Suite
Basic FX Suite VST 3 plug-in bundle, consisting of three software components: Sweet Spot Morphing Channel Strip, REV-X and Guitar Amp Classics.
Pure sound for your recordings

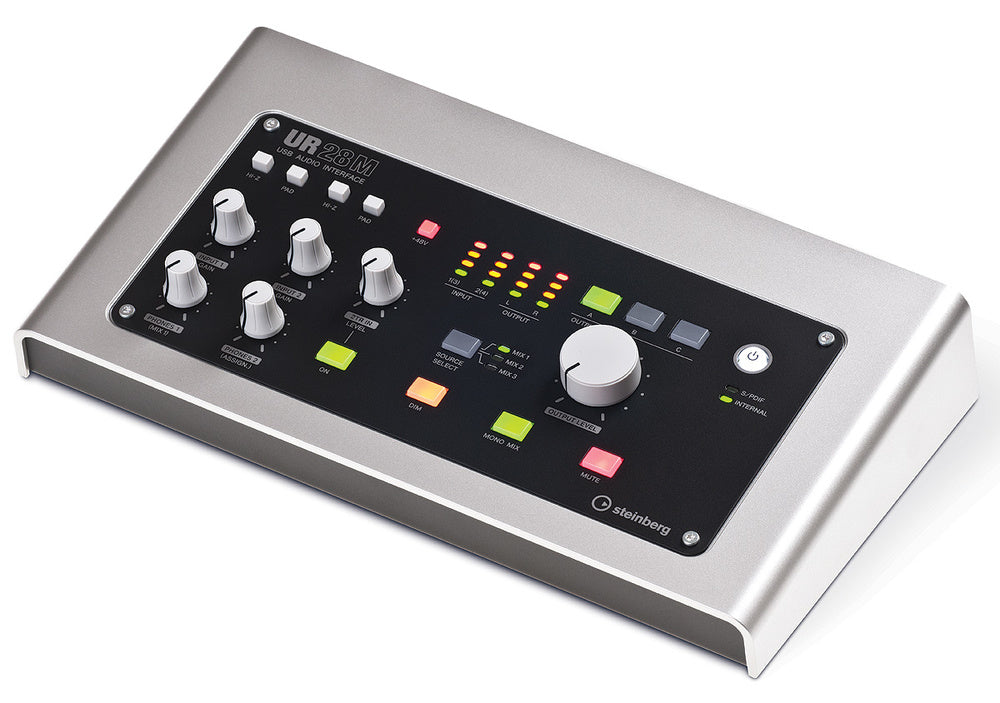

Designed for easy access to controls and connectors, the UR28M’s console comes with a single prominent output volume knob for individually controlling the levels of one of three stereo output pairs or the levels of six outputs simultaneously. You can also select between three monitoring mixes set up in the dspMixFx mixer or Cubase which is routed to the selected outputs. Several smaller rotary knobs to control signal levels of inputs 1 and 2 and the levels of the two headphone outputs, while further dedicated switches for inputs 1 and 2 allow you to employ 48 volt phantom power, 26 dB signal attenuation and connecting high-impedance instruments. Other controls include the Dim button for attenuating all line output signals by 20 dB, the Mono button and the Mute button for muting the selected output signal.
The rear panel provides two TRS line inputs and two Neutrik combo TRS/XLR mic/line inputs alongside six analog balanced TRS outputs plus a coaxial S/PDIF input and output connector. Also included is a 1/8 inch stereo input jack for connecting to a portable audio player or other devices as a reference source
Best setups for your gear
The UR28M represents a top-notch recording system with plenty of inputs and outputs to connect to microphones, instruments, studio monitors and headphones. There’s a USB connector to hook up to either your Mac or PC that lets you record and mix your productions with the included Cubase AI workstation or other audio software.
And with the free update to version 2, the UR28M also works with the iPad (2 or later) through Apple’s iPad Camera Connection Kit allowing you to record up to four input channels in an iOS audio application, such as Steinberg’s Cubasis.
EXCELLENT SOUND, SWIFT WORKFLOW
The UR28M is a recording and production solution for project studios prioritizing excellent sound and a swift workflow. Connections required for studios such as S/PDIF and routable TRS I/Os are at hand. Also on board are EQ and compression tools in the form of the Sweet Spot Morphing Channel Strips on each channel, not to forget the REV-X plug-in that provides quality reverb for modifying the intricacy of a sonic space and the Guitar Amp Classics effects for studio-grade guitar tracks. The UR28M allows for up to 5.1 surround with its six line outputs.
KEEP ON ROCKIN’
The UR28M interface is ideal for rehearsal rooms. Thanks to its practical size you can place it anywhere and even take it home with you. With analog and digital inputs over six channels plus acclaimed D-PRE mic preamps, UR28M provides everything you need to record your band in pristine audio quality. Record instruments and vocals in the rehearsal room and mix them later on at home or in the studio in Cubase AI or your preferred DAW
iOS connectivity and free dspMixFx app
With the latest firmware updates, the UR28M introduces iPad connectivity and the free dspMixFx app alongside some other new features. Together with the UR824, the dspMixFx app allows you to utilize the benefits of Yamaha’s custom-designed SSP2 DSP chip directly on your iPad. The dspMixFx app provides latency-free monitoring while running the highly acclaimed REV-X reverb, the Sweet Spot Morphing Channel Strip and Guitar Amp Classics with other iOS audio apps. With the latest update of dspMixFx you can also connect to Apple’s iPhone.
Two Class A D-PRE mic preamps, S/PDIF digital I/O and much more — check out the connectivity of the UR28M.
D-PRE mic preamps, dspMixFx, True Integrated Monitoring — find out more on the technology behind the UR interfaces.
UR line-up comparison
Each member of the UR family offers a unique set of capabilities. Find out which UR model fits your needs best.
Mac OS X
|Mac OS X 10.7/10.8/10.9/10.10/10.11/10.12/10.13
Mac OS X 10.5.8/10.6/10.7/10.8 (Firmware 1.0-1.5)
|Windows 7 SP1/8/8.1/10
Windows XP/Vista/7/8 (Firmware 1.0-1.5)
|Intel dual core CPU||Intel or AMD dual core CPU|
2 GB RAM
4 GB of free HD space
Display resolution of 1280x800 recommended
DVD-ROM dual-layer drive
USB 2.0/3.0* port
* Tested with Intel USB 3.0 host controller
CC mode requires iOS 9 (or higher) on iOS device.
Requires iOS 6 (or higher) on iPad 2 (or higher)
