USB 3.0 Audio Interface

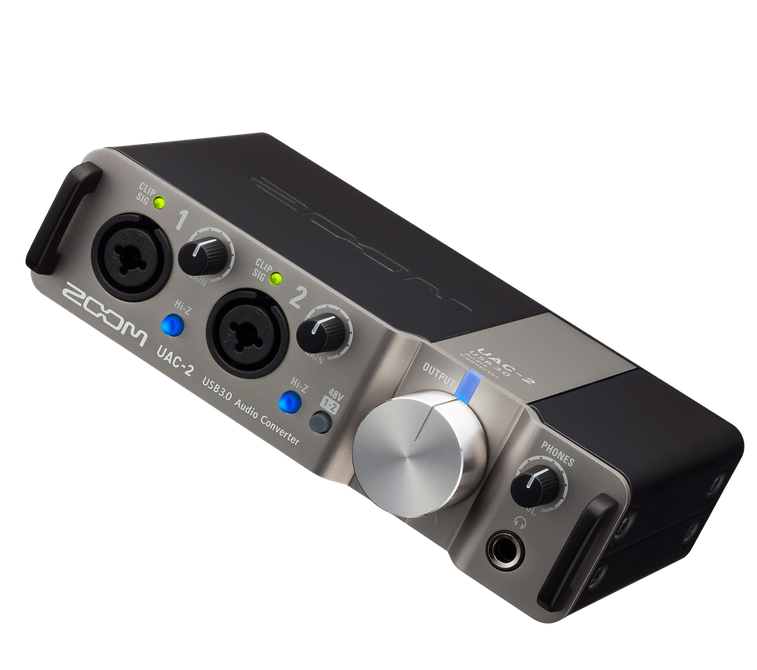

Take your sound new heights with the high-speed, high-resolution, low-latency, and ultra-portable UAC-2 USB 3.0 Superspeed Audio converter.
The bus-powered UAC-2 adds two channels of 24-bit/192 kHz high-resolution audio to any USB 2.0 or 3.0-equipped Windows or Mac computer—even to your iPad.* It utilizes USB 3.0 SuperSpeed technology for low latency and includes advanced features such as 4x upsampling, Loopback, and MIDI I/O. Plug in any microphone, line-level device, or instrument and use the UAC-2 for onstage playback, recording to a DAW, or enjoyment of high-res audio in your home or office. You can also use it for fast low-latency webcasting, podcasting, gaming, and other live streaming applications.
* Optional power adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter required
- 2-in/2-out USB 3.0 SuperSpeed audio interface
- Support for recording and playback up to 24-bit/192 kHz
- Loopback function for webcasting, podcasting, gaming, and other live streaming applications
- Low latency overdubbing and direct monitoring for zero-latency monitoring in mono or stereo
- Two combo balanced XLR/TRS input connectors accept both mic- and line-level signal
- Hi-Z switches allow direct connection of electric guitar or bass
- Switchable +48V phantom power
- Two balanced TRS output jacks for connection to amplifiers or self-powered speakers
- ¼" headphone jack with dedicated level control
- Independent gain controls and clip LEDs for each input
- Large knob output volume control
- Direct Monitoring switch for zero latency monitoring in mono or stereo
- MIDI In and Out
- Compatible with all popular DAW and streaming software, including Cubase, Logic, Garage Band, Pro Tools, Ableton Live, and others
- High-performance mic preamps with up to +60 dB of amplification
- 120 dB of dynamic range
- 4x upsampling during A/D and D/A conversion for reduced noise and enhanced fidelity
- Asynchronous transfer system unaffected by computer jitter
- Bus powered—no AC power required
- Robust metal housing ensures roadworthiness
- Works with all USB 3.0-equipped computers and iPads*
* Optional power adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter required
| Inputs |
| Input 1/2 connectors: |
XLR/TRS combo jacks
(XLR: 2 hot / TRS: TIP hot)
|
| Input gain: |
0 to 60dB in 1dB steps
|
| Input impedance: |
5kΩ (1 MΩ (when Hi-Z ON)
|
| Maximum input level: |
+12 dBu (@0dBFs)
|
| Phantom power: |
+48V
|
| L/R Output |
| Type: |
¼" TRS jack (Balanced)
|
| Maximum output level: |
+14 dBu (@0dBFs)
|
| Output impedance: |
100Ω
|
| Phones Output |
| Type: |
¼" stereo phone jack
20mW + 20mW (into 32Ω load)
|
| Maximum output level: |
+8 dBu (@0dBFs)
|
| Output impedance: |
33Ω
|
| Dynamic range |
| A/D: |
118dB typical (IHF-A)
|
| D/A: |
120dB typical (IHF-A)
|
| Number of audio channels |
| Recording: |
2
|
| Playback: |
2
|
| OTHER |
| Frequency characteristics: |
-1.0 dB: 20 Hz - 60 kHz @ 192kHz
-1.0 dB: 20 Hz - 40 kHz @ 96kHz
-1.0 dB: 20 Hz - 20 kHz @ 44.1kHz
|
| Measured conversion noise (EIN): |
-125dBu (IHF-A) @ 60dB, 150Ω input
|
| Sampling frequencies: |
192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz
|
| Bit depth: |
24-bit
|
| Interface: |
USB 3.0
|
| MIDI In/Out: |
5-pin DIN jack
|
| Power source: |
USB 3.0 Bus Power /
AD-14 AC adapter (DC 5V 1A)
|
| Power consumption: |
5 W maximum
|
| Dimensions: |
113.9mm(D) x 176.0mm(W) x 46.2mm (H)
|
| Weight: |
750g
|
| |
*0dBm?0.775Vrms
|
| UAC-2 System Requirements |
| Windows: |
OS? Windows® 7 SP1 or later / 8 / 8.1 / 10 (32bit/64bit)
CPU: Intel® Core i3 or faster*
USB: USB 3.0/USB 2.0**
* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.
|
| Mac: |
OS? Mac® OS X 10.8.5 or later / 10.9 / 10.10 / 10.11
CPU: Intel® Core i3 or faster
USB: USB 3.0/USB 2.0*
* Operation is not guaranteed when used with USB hubs or expansion cards.
|
| iPad: |
OS? iOS 7.1 or later
* Optional power adapter(AD-14) and Apple Camera Connection kit or Lightning to USB Camera Adapter required.
|
