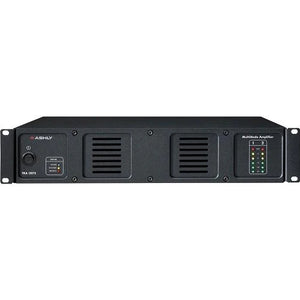

The Ashly TRA-2075 is a 2-channel convection-cooled rackmount P.A. or installation power amplifier housed in a rugged 2RU metal chassis, offering an output of 40 Watts per side at 8 Ohms, designed to drive 4 and 8 Ohm loads and transformer coupled 70V and 100V lines simultaneously. The coupling transformers are internally mounted.
The TRA-2075 incorporates a switch-mode-power supply and Class-D amplifier circuitry, providing a power-efficient solution. The low-noise unit features a switchable HPF filter and selectable gain sensitivity, turn-on delay DIP switches with up to 8 seconds of delay available, and rear-mounted set-and-forget gain controls.
The TRA-2075 is equipped with an internally switchable 120V/240V power supply, extensive protection circuitry, and standard Euroblock inputs along with screw terminal outputs.
| Power Rating | Stereo @ 8 Ohms: 40W per Ch. Stereo @ 4 Ohms: 75W per Ch. Stereo @ 70V: 75W per Ch. Stereo @ 100V: 75W per Ch. |
| Damping Factor | >200, 8-Ohm load, <1kHz |
| Input Sensitivity | 1.5V |
| Input Impedance | 20 kOhms, Balanced |
| Gain | Selectable 26dB or 36dB |
| Frequency Response | 20 Hz - 20 kHz, +/-1.0dB |
| Signal-to-Noise Ratio | >98dB, 20Hz - 20kHz unweighted |
| Total Harmonic Distortion (THD) | <0.01% (8-Ohm load, 10dB below rated power, 20Hz - 10kHz |
| Input Connections | 2 x Ch.1,2 3- Pin Euroblock |
| Output Connectors | 2 x Ch.1,2 Screw Terminals |
| Controls Front Panel | 1 x Power Switch |
| Controls (Rear) | 2 x Gain Control Knobs 4 x Delay DIP Switches 2 x 80Hz HPF On/Off Buttons 2 x Gain Sensitivity Buttons |
| Indicators | 1 x Blue Power On LED 1 x Yellow Standby LED 1 x Red Protect LED 2 x Red Clip LED's 6 x Green -24/-18/-12dB Signal LED's 4 x Yellow -6/-3dB Signal LED's |
| Cooling | Convection-cooled |
| Power Consumption | 18.75W (1/8 Power Pink Noise @ 4 Ohm) Typical Current: Idle: 0.30A 1/8 Power: 0.69A |
| Dimensions | 19 x 3.5 x 11" (483 x 89 x 279.4mm) |
| Weight | 19.5 lb (8.8 kg) |
| Specialties | Adjustable Turn-On delay Switches Convection Cooling Switch-Mode Power Supply |
