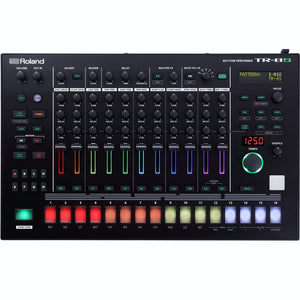

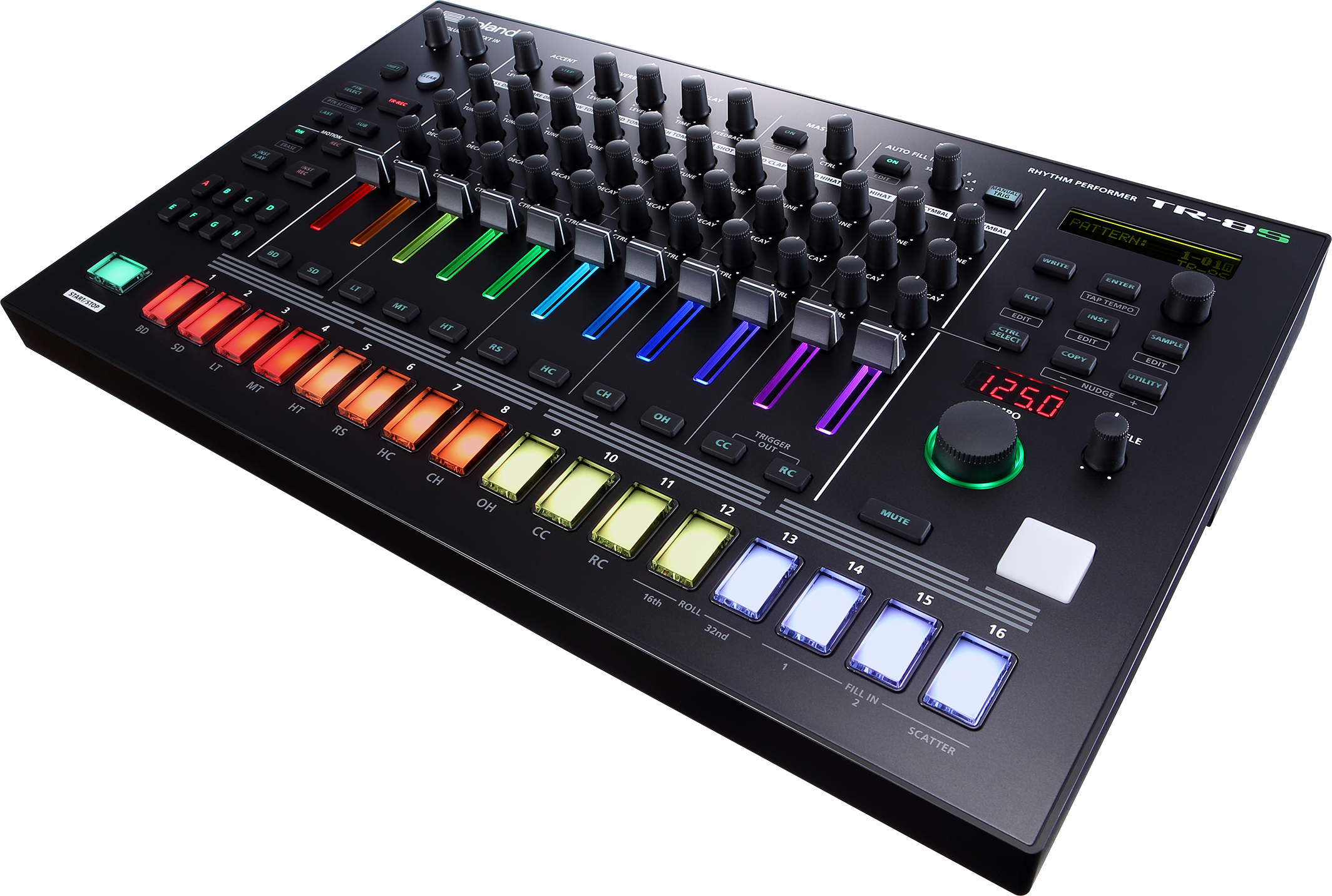

ROLAND TR-8S DRUM MACHINE

The TR-8 is a performance rhythm machine that melds the legendary sound and vibe of the TR-808 and TR-909 with features and functions for the modern age. Genre-defining sounds, classic effects, unprecedented live pattern manipulation, and solid, intuitive performance controls. Its the TR ,evolved.

CAPTURING THE ORIGINALS

• Full reproduction of the classic TR-808 and TR-909 rhythm machines, based on original design spec sheets and detailed analog circuit analysis of many original TR machines, including Rolands own pristine units
• Newly developed Analog Circuit Behavior (ACB) technology allows part-by-part analyses and faithful recreation of tonality and behavior, including the smooth variations of tone that occur when you work the controls of each instrument
• Obsessive attention to detail, such as reproducing the original TRs unique variations in tone that occur when multiple instruments are entered in accented steps
• Authentic 16-step sequencer with faithful TR-REC behavior, including A and B pattern variations and the ability to play instruments and record to steps in real time

TR EVOLVED

• 16 stunning kits made up of 11 instrument types, including custom dream kits that use both TR-808 and TR-909 sounds
• Large Tempo knob with Tap Tempo button and continuous Fine and Shuffle adjustment knobs
• Control the intensity of the Accent function with a dedicated knob
• Per-step reverb and delay effects with dedicated knobs
• Mix sources connected to the External In jacks with built-in per-step Side Chain function for rhythmic ducking and gating effects
• Scatter lets you freak and tweak your grooves with real-time control and perfect sync
• 7 segment, 4 character LED display and 16 per-step pads with bold, full-color LEDs
• Real-time pattern creation up to 32 steps with on-the-fly step count adjustment
• Rec/Play modes have been eliminated, enabling seamless switching between step input and real-time pattern making and performance
• Real-time play of 4 different types of rolls (8th, 16th, VARI 1, VARI 2) and per-instrument mutes
• Pattern copy and pattern randomization for rapid, spontaneous creativity
• Two assignable analog outputs and full parallel outputs via USB for total mixing flexibility

Born of the most famous and influential drum machines ever made,
the TR-8S combines the best of its Roland heritage with modern production techniques and professional sound design.
The result? A forward-thinking, performance-tuned instrument unlike any other.
Build your dream kit from the most iconic drum sounds of all time,
plus the finest selection of samples from our vast library—or import your own custom samples.
Tap, tune, and tweak with hands-on controls and production tools that make your patterns move and groove.
And why keep this kind of percussive power confined to the studio?

The TR-8S was literally made to play live.

Design Kits with Authentic TR Drums,
Sampled Sounds, and Effects

The TR-8S comes loaded with the largest, most authentic collection of TR drum machines available. The powerful new processor gives our next-generation ACB models a whole new level of detail and nuance, giving you that classic Roland boom, snap, and sizzle. And now you can incorporate preset and custom samples, creating unique hybrid and layered kits, and enhance them with specialized effects that inject professional sound design into the TR formula.

Transistor Rhythms

The TR-8S has every sound from the most sought-after TR drum machines, with detailed circuit-models of the 808, 606, 909, 707, 727, and even several modified versions. These are not sound-alike sample-packs or mere recordings of TR drum sounds. Each machine is a detailed, down-to-the-circuit-model that sounds and behaves exactly like the original hardware. All these sounds are yours, at your fingertips, and ready to use in your own productions and performances.

User Drum Kits: 16

User Patterns: 16

Steps per 1 measure

1 , 16 steps x 2 (Variation A/B)

Tempo: 40 , 300

Instruments &amp, Controls

BASS DRUM: LEVEL, TUNE, ATTACK, COMP, DECAY, INST SELECT
SNARE DRUM: LEVEL, TUNE, SNAPPY, COMP, DECAY, INST SELECT
LOW TOM, MID TOM, HIGH TOM, RIM SHOT, HAND CLAP, CLOSED HIHAT, OPEN HIHAT, CRASH CYMBAL, RIDE CYMBAL: LEVEL, TUNE, DECAY, INST SELECT

Effects and Controls

ACCENT: LEVEL, STEP
REVERB: LEVEL, TIME, GATE, STEP
DELAY: LEVEL, TIME, FEEDBACK, STEP
EXTERNAL IN: LEVEL, SIDE CHAIN, STEP

Mode

TR-REC, PATTERN SELECT, INST PLAY, INST REC, DRUM KIT SEL, DRUM INST SEL

Controllers

VOLUME knob
SCATTER knob
TEMPO knob
FINE knob
SHUFFLE knob
PADS: 16
MODE buttons: 6
CLEAR button
VARIATION buttons: A, B
SCALE button
LAST STEP button
START/STOP button
SCATTER ON button
SCATTER DEPTH button
TAP button
Power Switch (Rear)

Display

7 segments, 4 characters (LED)

Effects

REVERB, DELAY, SIDE CHAIN

Scatter

Types: 10

Nominal Input Level

-10 dBu

Input Impedance

100 k ohms

Nominal Output Level

-10/+4 dBu (Selectable)

Output Impedance

MIX OUT, ASSIGNABLE OUT: 1 k ohm
PHONES: 130 ohms

Connectors

PHONES jack: 1/4-inch stereo phone type
MIX OUT (L/MONO, R) jacks: 1/4-inch phone type
ASSIGNABLE OUT (A, B) jacks: 1/4-inch phone type
EXTERNAL IN (L, R) jacks: 1/4-inch phone type
USB port: USB type B (Audio, MIDI)
DC IN jack

USB

Audio, MIDI

Power Supply

AC adaptor

Current Draw

1000 mA

Accessories

Owner's manual
Leaflet ,USING THE UNIT SAFELY,
AC adaptor

SIZE AND WEIGHT

Width

400 mm
15-3/4 inches

Depth

260 mm
10-1/4 inches

Height

65 mm
2-9/16 inches

Weight

1.9 kg
4 lbs. 4 oz.
