A solid foundation for mixing.
A subwoofer provides the extra-deep low frequencies you need when mixing on relatively small monitors, especially for music that requires serious low-end punch. Powerful and musical, Temblor T8 active, downward-firing subwoofers are designed to deliver fast and accurate transient response, extending low frequencies without a hint of tubbines or overshoot. This ensures that Temblor-series subwoofers complement full-range monitors without overshadowing them, naturally extending the reach of your full-range system's low end so that you can produce your best mix from top to bottom.
Features
Main components

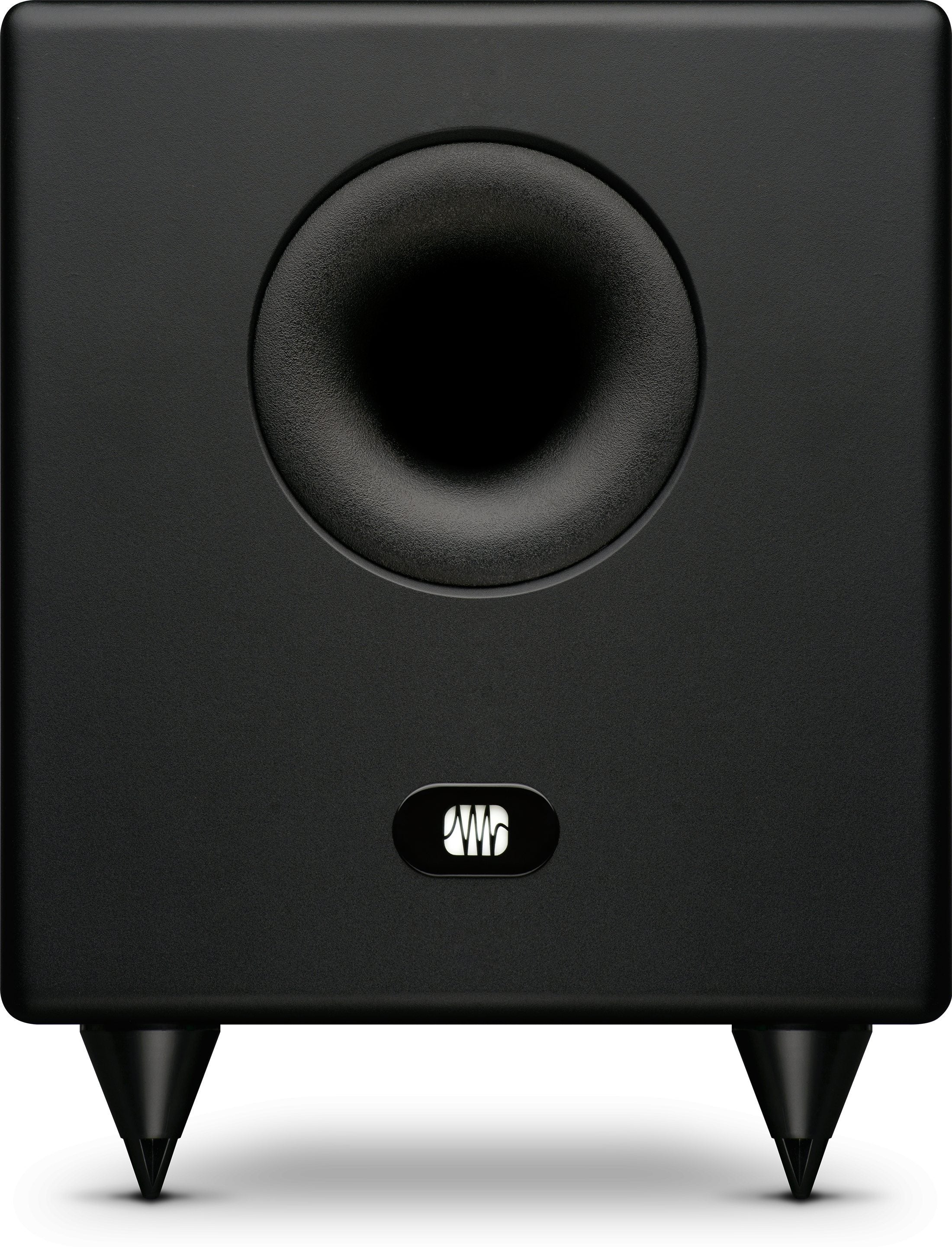

- 8-inch, downward-firing, glass-composite low-frequency transducer
- Round, front-firing, bass-reflex acoustic port
Controls and filters
- Input gain control (-30 dB to +6 dB, continuously variable)
- Continuously variable lowpass filter (50 Hz to 130 Hz)
- Built-in crossover
- Switchable highpass filter removes frequency content below 80 Hz from the full-range signal sent from the Temblor outputs to the main monitors
- Polarity invert
Power and safety
- 200 watt, Class AB amplification
- Internal damping and heat sink
- Integrated rubber feet for stable placement

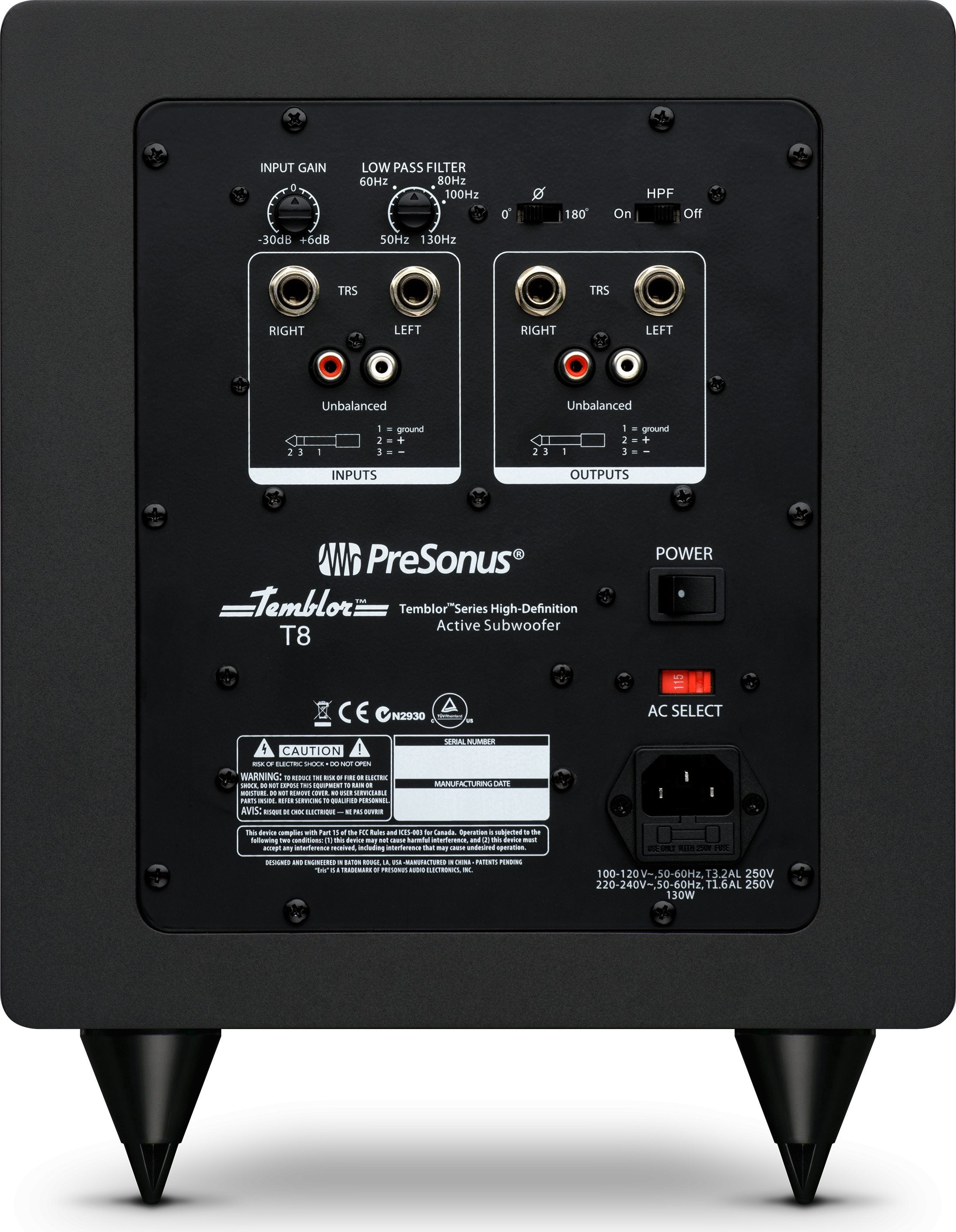

Inputs and outputs
- Left and right, balanced ¼” TRS and unbalanced RCA main inputs
- Left and right, balanced ¼” TRS and unbalanced RCA outputs
Technical Specifications
Inputs |
|
|---|---|
|
2- Balanced ¼” TRS 2- Unbalanced RCA |
Outputs |
|
|---|---|
|
2- Balanced ¼” TRS (full range with 80 Hz HPF option 2- Unbalanced RCA (full range with 80 Hz HPF option) |
Performance |
|
|---|---|
| Frequency Response | 30 Hz – 200 Hz |
| Low Pass Filter Frequency | 50 – 130 Hz (variable) |
| Signal-to-Noise Ratio | >98 dB (A weighted) |
| THD | 0.05% |
| Amplifier Power | 200W peak, 100W RMS |
| Power Consumption | 120W |
| Amplifier Type | Class AB |
| Peak SPL at 1m | 104 dB |
| Woofer | 8” glass-composite, downward-firing |
| Acoustic Port | Front-firing bass reflex (round) |
User Controls |
|
|---|---|
| Input Gain Range | -30 to +6 dB |
| Polarity Switch | 0° or 180° |
| Low Pass Filter Control | 50 Hz to 130 Hz |
| High Pass Filter Switch | On/Off |
Protection |
|
|---|---|
|
RF interference Output-current limiting Over-temperature Turn-on/off transient Subsonic filter External mains fuse |
Power |
|
|---|---|
| 100-120V ~50/60 Hz or 220-240V ~50/60 Hz |
Cabinet |
|
|---|---|
| Vinyl-laminated MDF |
Physical |
|
|---|---|
| Width | 10.2” (260 mm) |
| Depth | 12.6” (320 mm) |
| Height | 11” (280 mm) |
| Weight | 21.2 lbs (9.6 kg) |
As a commitment to constant improvement, PreSonus® Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
