Tight, clean, responsive bass.

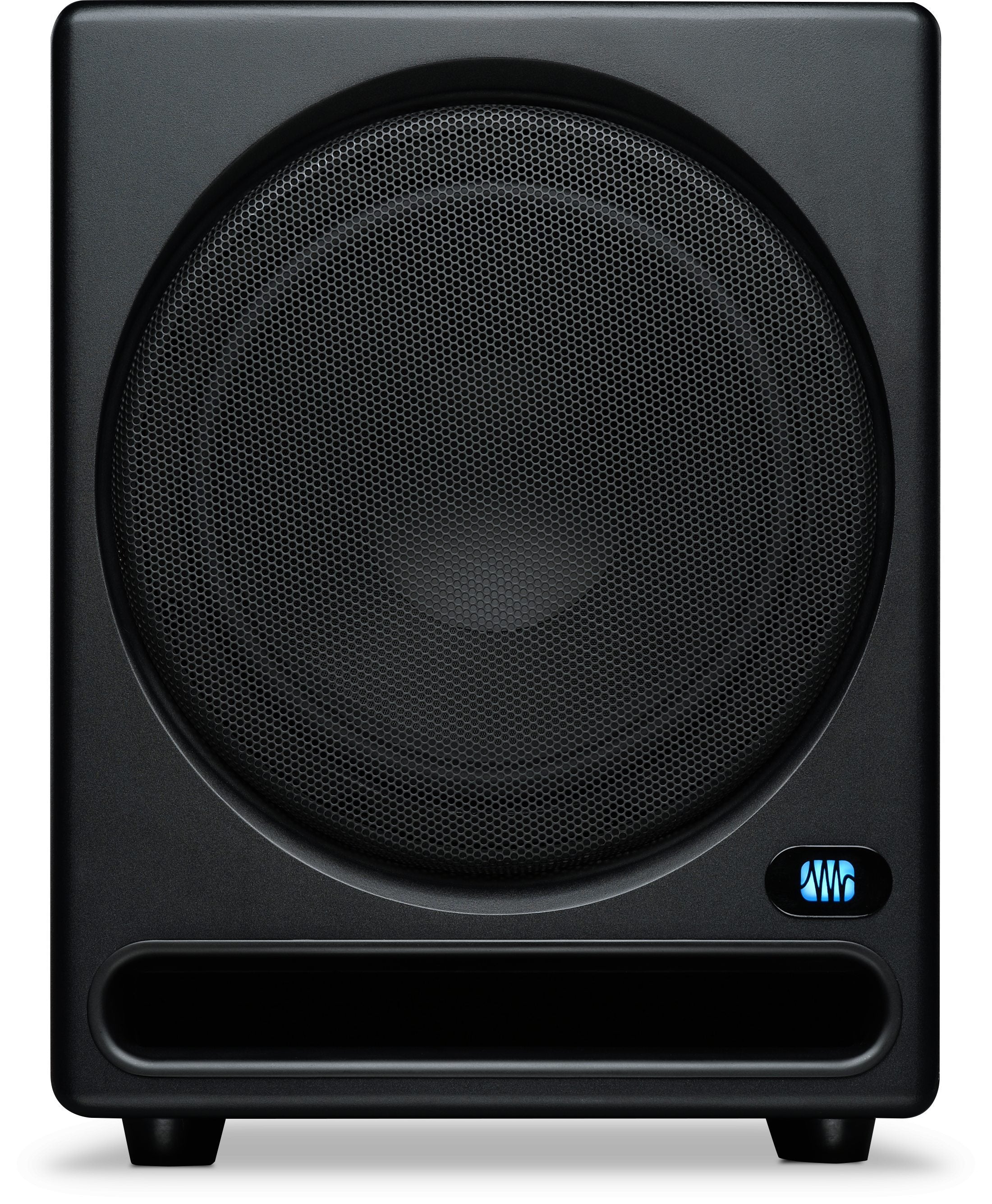

The Temblor T10’s glass-composite low-frequency driver delivers tight and responsive bass, thanks to its lightweight and rigid cone. This design also provides lower distortion than other materials, ensuring that the sub-bass reproduction in your monitoring system is as coherent and clear as your full-range monitors.
A perfect fit with your full-range monitors.
Temblor-series subwoofers make integrating a subwoofer into your monitoring setup easy so you can create the flattest possible response. The Temblor T10 provides a continuously variable lowpass filter (50 Hz to 130 Hz), allowing you to create a seamless crossover transition between your full-range studio monitors and subwoofer for the most accurate listening environment possible.
The central hub of your monitoring setup.
Temblor T10 subwoofers provide the connections and controls necessary to act as the central hub for a basic monitoring setup. A switchable highpass filter on the full-range outputs helps to avoid frequency cancellation and reinforcement in the subwoofer’s upper range. A polarity invert ensures your system is in phase.
The Temblor T10 also features a momentary footswitch (included), making it easy to compare your mix with or without sub-bass frequencies and ensure it will sound good on a wide variety of systems.
Accuracy defined.
When you hear the low-frequency foundation of your mix accurately, you can make more informed decisions and create more translatable mixes. Temblor T10 subwoofers are the natural sub-bass extension for virtually any full-range monitoring system. Hear the Temblor T10 at your favorite PreSonus® dealer.
Technical Specifications
Inputs |
|
|---|---|
|
2- Balanced XLR 2- Balanced ¼” TRS 2- Unbalanced RCA |
Outputs |
|
|---|---|
|
2- Balanced XLR (full range with 80 Hz HPF option) 2- Balanced ¼” TRS (full range with 80 Hz HPF option) 1- Balanced XLR (Sub Out) |
Performance |
|
|---|---|
| Frequency Response | 20 Hz – 200 Hz |
| Low Pass Filter Frequency | 50 – 130 Hz (variable) |
| Signal-to-Noise Ratio | >98 dB (A weighted) |
| THD | 0.019% @ power <160W |
| Amplifier Power | 250W peak, 170W RMS |
| Power Consumption | 230W |
| Amplifier Type | Class AB |
| Peak SPL at 1m | 113 dB |
| Woofer | 10” glass-composite, front-firing |
| Acoustic Port | Front-firing bass reflex |
User Controls |
|
|---|---|
| Input Gain Range | -30 to +6 dB |
| Polarity Switch | 0° or 180° |
| Low Pass Filter Control | 50 Hz to 130 Hz |
| Ground Lift Switch | On/Off |
| High Pass Filter Switch | On/Off |
| Bypass Footswitch | On/Off |
Protection |
|
|---|---|
|
RF interference Output-current limiting Over-temperature Turn-on/off transient Subsonic filter External mains fuse |
Power |
|
|---|---|
| 100-120V ~50/60 Hz or 220-240V ~50/60 Hz |
Cabinet |
|
|---|---|
| Vinyl-laminated MDF |
Physical |
|
|---|---|
| Width | 12.6” (320 mm) |
| Depth | 15.75” (400 mm) |
| Height | 15.75” (400 mm) |
| Weight | 39.46 lbs (17.9 kg) |
