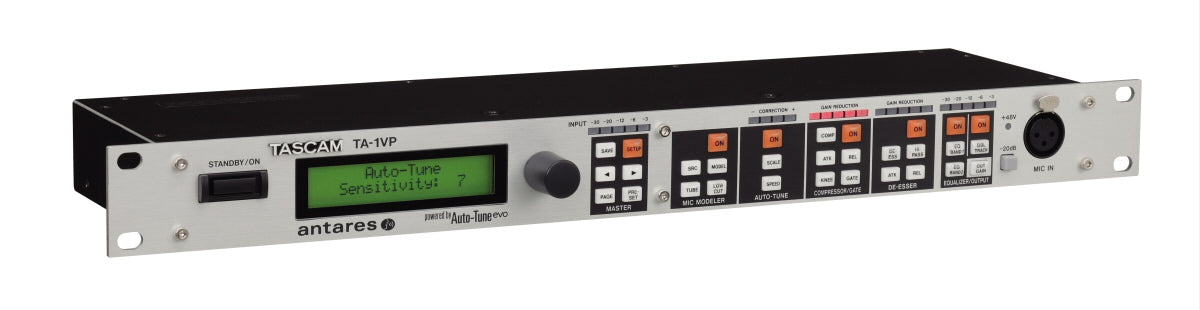

Antares Auto-Tune Vocal Processor
The only hardware processor with Auto-Tune technology for flawless vocal intonation
The TASCAM TA-1VP vocal processor was co-developed with Antares Audio Technologies to bring together everything you need for a polished, modern vocal sound, in the studio or live. The rackmount processor includes a microphone preamp, compression, de-essing, microphone & tube modeling and Antares’ world-famous Auto-Tune™ pitch correction. Whether you want gentle, transparent pitch correction or the full-strength effect that's required for pop or hip hop vocals, the TA-1VP delivers this sound for you on stage. Perfect for live performance, house of worship or studio use, the TA-1VP brings your vocal sound into the 21st century.
Audio input | |
Mic input | |
Connector | XLR-3-31 (1: GND, 2: HOT, 3: COLD) × 1 |
Input impedance | 2.2kΩ |
Nominal input level (PAD) | –56.5dBu (0.001Vrms) to –26.5dBu (0.037Vrms) |
Nominal input level | –20.5dBu (0.073Vrms) to +9.5dBu (2.314Vrms) |
Maximum input level | +9.5dBu (2.314Vrms) |
Line input (Balanced) | |
Connector | 1/4" (6.3mm) TRS Phone jack (Tip: HOT, Ring: COLD, Sleeve: GND) × 1 |
Input impedance | 10kΩ |
Nominal input level | +8dBu (1.947Vrms) to +24dBu (12.283Vrms) |
Maximum input level | +24dBu (12.283Vrms) |
Line output | |
Main (Balanced) | |
Connector | 1/4" (6.3mm) TRS Phone jack (Tip: HOT, Ring: COLD, Sleeve: GND) × 1 |
Output impedance | 100Ω |
Nominal output level | +4dBu (1.228Vrms) |
Maximum output level | +20dBu (7.75Vrms) |
Double Track (Balanced) | |
Connector | 1/4" (6.3mm) TRS Phone jack (Tip: HOT, Ring: COLD, Sleeve: GND)× 1 |
Output impedance | 100Ω |
Nominal output level | +4dBu (1.228Vrms) |
Maximum output level | +20dBu (7.75Vrms) |
Digital output | |
Connector | RCA Pin jack × 1 |
Format | IEC60958-3 (S/PDIF) |
Output impedance | 75Ω |
Output level | 0.5Vp-p/75Ω |
MIDI input | |
Connector | DIN 5 pin × 1 |
Format | MIDI standard |
MIDI output | |
Connector | DIN 5 pin × 1 |
Format | MIDI standard |
Remote I/O | |
REMOTE | |
Connector | 1/4" (6.3mm) TS jack × 1 (for Foot switch) |
RS-232C | |
Connector | D-sub 9 pin × 1 |
PARALLEL | |
Connector | D-sub 25 pin × 1 |
ETHERNET | |
Connector | RJ-45 × 1 |
Compatible standard | 100BASE-TX |
Power | AC 100 - 240V, 50/60Hz (AC adapter TASCAM PS-1220E) |
Power consumption | 4W |
Dimensions | 19.0" × 1.73" × 5.0" / 482.6 × 44 × 128.1 mm |
Weight | 4.4 lbs. / 2.0 kg |
Operating temperature range | 41˚F to 95˚F / 5˚C to 35˚C |
Included items | AC power code, RC-10 remote control unit, rack-mounting screw kit, security screw kit, Owner's manual (with warranty) |
Frequency response | |
Mic input | 20Hz to 20kHz, ±0.5dB (Line output) |
Line input | 20Hz to 20kHz, ±0.5dB (Line output) |
Distortion | |
Line input | 0.008% or less (Line output) |
S/N ratio | |
Mic input | 98dB or more (Line output) |
Line input | 98dB or more (Line output) |
Dynamic range | 120dB or more (Line output) |
Input analog trim | 0dB to +3dB |
Auto-Tune | Chromatic and 24 diatonic scales, all user customizable Return speed Pitch detection sensitivity |
Mic modeler | |
Source Mics | |
Specific Mics | |
SHURE | SM58, SM57, Beta 58a, KSM 32 |
audio-technica | 3035, ATM31, ATM41a, 4050 |
Rode | NT1, NT2, NT3 |
DAC | M177, E200, E350 |
Generic Mics | Hand-held dynamic, Studio dynamic, Wireless, Small diaphragm condenser, Large diaphragm condenser |
Model Mics | Hand-held dynamic, Studio dynamic, Small diaphragm condenser 1, Small diaphragm condenser 2, Small diaphragm condenser 3, Large diaphragm condenser 1, Large diaphragm condenser 2, Large diaphragm condenser 3, Drum mic - kick, Drum mic - snare, Drum mic - cymbal, Telephone |
Tube saturation drive | 0dB to 12dB |
Compressor | |
Threshold | –36dB to 0dB |
Ratio | 1.0:1 to 99:1 |
Attack | 1ms to 200ms |
Release | 1ms to 200ms |
Knee | Continuously various |
Gate | |
Threshold | –96dB to 0dB |
Ratio | 1:1.0 to 1:99 |
De-esser | |
Threshold | –60dB to 0dB |
Ratio | 1.0:1 to 99:1 |
Attack | 1ms to 200ms |
Release | 20ms to 2550ms |
Highpass frequency | 2971Hz to 20kHz |
Attack | 1ms to 200ms |
Release | 1ms to 200ms |
Parametric EQ | 6dB Lowpass, 6dB Highpass, 12dB Lowpass, 12dB Highpass, Bandpass, Notch, Low shelf (variable slope), High shelf (variable slope), Peaking, Double tracking, Stereo or variable mono mix *2 independent bands |
Factory settings | |
Input analog trim | 0dB |
Input | LINE |
Phantom | OFF |
Audio type | Soprano voice |
Auto-Tune detune | 0 cents |
Sensitivity | 7 |
MIDI channel | OMNI |
MIDI prog change | OFF |
MIDI control change | All OFF |
Foot switch assign | All OFF |
MIDI Sysex reception | NO |
LCD contrast | 4 |
Preset | Male voice |
