Description

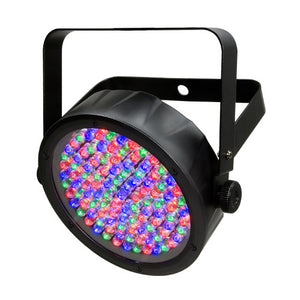

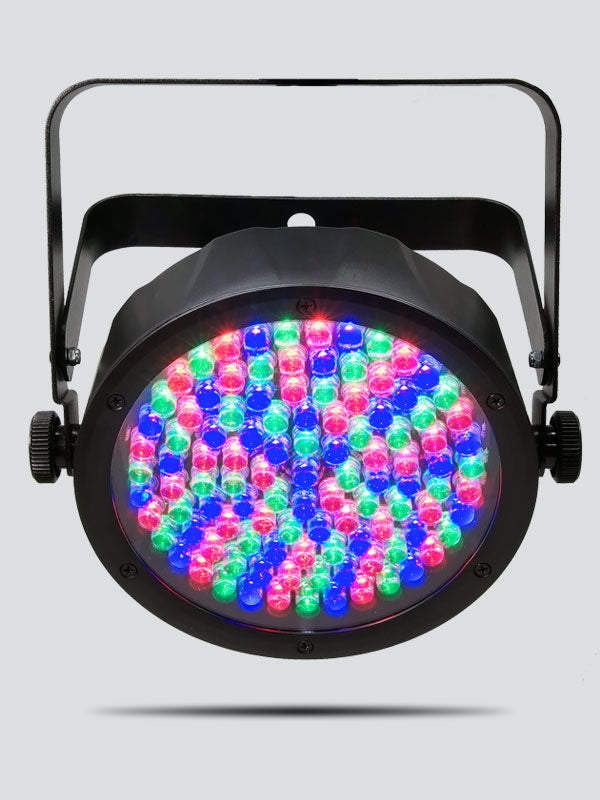

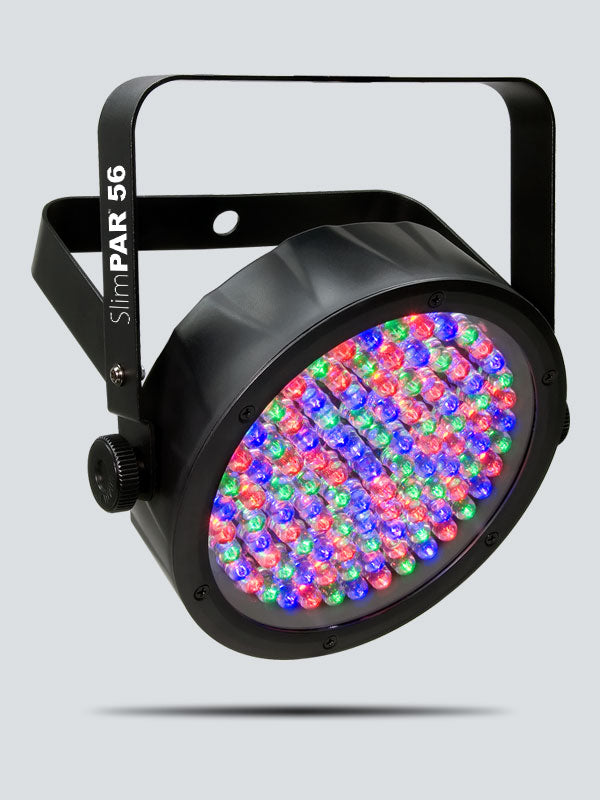

SlimPAR 56
SlimPAR 56 is an LED wash light in a sleek white or black housing. Powered by 108 red, green and blue LEDs, it blends into any décor with ease. Customize light shows in 3- or 7-channel DMX mode.
- 3 or 7-channel DMX-512 slim LED PAR can
- Operating modes:
3-channel: RGB control
7-channel: RGB, macros, run/strobe speed, automatic/sound, dimmer - Static colors and RGB color mixing with or without DMX controller
- Built-in automated programs via master/slave or DMX with variable speed
- Built-in sound activated programs via master/slave or DMX
- Pulse effect with adjustable speed
- Low-profile lights are 2.2in deep
- Additional power output: max 46 units @ 120V (see manual for details)
- Double-bracket yoke doubles as floor stand
- Beam angle: 21°,
- Field angle: 32°,
- Lux: 1,290 @ 1m
- Light Source: 108 (36 red, 36 green, 36 blue) LEDs
- Power and current: 120V, 60Hz: 8W, 0.2A operating, 0.2A inrush
- AC power: Autoswitching 100V-240V 50/60Hz
- Weight: 2.7lbs (1.2kg)
- Size: 8.8in x 7.3in x 7in / 223mm x 184mm x 178mm
-
Highlights
-
LED Par designed for any application in need of a compact wash light
-
Low-profile fixture fits most places other lights cannot
-
Ideal for quiet applications due to silent operation and no moving parts
-
Convenient access to RGB color mixing and static colors without DMX
-
Trigger eye-catching effects with built-in automated programs via Master/Slave or DMX mode
-
Increase standalone versatility with multiple user-configurable settings
-
Achieve flicker-free video operation with high-frequency LED dimming
-
Save time running cables and extension cords by power linking multiple units
-
Easily transports in the optional CHS-SP4 VIP Gear Bag
-
Available with a black housing
-
Compact design easily fits inside sticks of TRUSST®
Specifications
- DMX Channels:3 or 7
- DMX Connectors:3-pin XLR
- Light Source:108 LEDs (36 red, 36 green, 36 blue) 0.25 W (20 mA), 100,000 hours life expectancy
- PWM Frequency:1,200 Hz
- Beam Angle:14°
- Field Angle:23°
- Illuminance:876 lux @ 2 m
- Power Linking:50 units @ 120 V; 100 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current:24 W, 0.2 A @ 120 V, 60 Hz
27 W, 0.1 A @ 230 V, 50 Hz - Weight:2.7 lb (1.2 kg)
- Size:9.5 x 8.8 x 2.2 in (241 x 224 x 56 mm)
- Approvals:CE, MET
WHAT'S INCLUDED
- External power cord
- Quick Reference Guide
-
