Wireless Bodypack Transmitter with TA4F Connector.

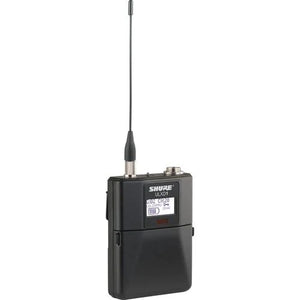

The Shure ULXD1 VHF Wireless Bodypack Transmitter is a lavalier, headworn microphone and instrument transmitter for hands-free wireless microphone and instrument operation (microphones and instrument cables sold separately). The ULXD1 is sold as part of the ULX-D Digital Wireless Microphone System, or may be purchased separately and used with an existing ULXD4 digital wireless receiver.
The compact bodypack transmitter features a rugged metal housing, TA4-M (4-pin male) audio input, comprehensive LCD display and much more. The ULXD1 features pristine, compandor-free digital transmission for uncompromising sound quality, range and detail. Its 256-bit encryption keeps wireless transmissions secure, and its adjustable RF output power delivers maximum range wherever necessary. The ULXD1 operates on either alkaline AA batteries or Li-Ion rechargeable batteries for up to 12 hours.
- AES 256-bit encryption for applications requiring secure data transmission
- Proprietary Shure gain ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
- Shure SB900 Lithium-Ion rechargeable battery provides up to 12 hours of battery life, precision metering with 5-segment battery fuel gauge, and zero memory effect
- External charging contacts for docked charging (with the SBC200 dual docking charger)
- Backlit LCD with easy to navigate menu and controls
- Rugged metal construction
- Detachable 1/4 wave antenna
- Frequency and power lockout
SPECFICATIONS
- Connector TA4F connector
- Unbalanced
- 1 MOhm
- Impedance 50 Ohms
- Operating Range 300' (100 m)
- Gain Range 0 to 21 dB (in 3 dB steps)
- Line Max Input Level Pad Off: 8.5 dBV (7.5 Vpp)
- Pad On: 20.5 dBV (30 Vpp)
- EIN Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20: 120 dBV, A-weighted, typical
- RF Output SMA
- Antenna 1/4 wave
- Bandwidth Occupied Bandwidth: < 200 kHz
- Modulation Shure Proprietary Digital
- Output Power 1 mW, 10 mW, 20 mW
- Frequency Response 20 Hz to 20 kHz (±1 dB), flat
- Note: Dependent on microphone type
- Battery Shure SB900 Rechargeable Li-Ion or AA batteries
- Battery Runtime @ 10 mW:
- Shure SB900: > 12 hours
- Alkaline: 11 hours
- Housing Cast aluminum
- Dimensions (HxWxD) 3.4 x 2.6 x 0.9" (86 x 66 x 23 mm)
- Weight 142 g (5.0 oz), without batteries
- Package Weight 0.95 lb
- Box Dimensions (LxWxH) 12.7 x 4.8 x 3.4"
