Description
- For P10R Personal Listening Receivers
- Dual Channel for Double Program Material
- 66 MHz Tuning Bandwidth
- Networkable via Ethernet
- Wireless Workbench Software Control
- Switchable RF Output Power
- All-Metal Chassis
- Includes Antennas

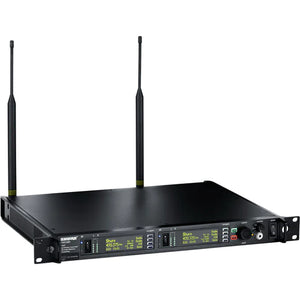

The P10T Full-Rack Dual-Channel Wireless Transmitter from Shure is a wireless transmitter for the PSM 1000 system. It can be used to deliver pristine RF signal and audio quality for professional touring applications when paired with Shure P10R or P10R+ wireless diversity bodypack receivers (sold separately) for live stage and theater events or permanent installations.
Built with an all-metal chassis, the dual-channel P10T allows for up to 2 programs to be transmitted simultaneously on different frequency channels. The P10T features balanced 1/4" and XLR connections as well as a 3.5mm headphone jack on the front for monitoring. Its 66 MHz bandwidth offers a wide tuning range to provide stable transmission. Other features include: LCD display, RF mute switch, IR scan with P10R bodypack for RF sync, networked remote control via Wireless Workbench software, and PSM900 backwards compatibility.
- Full-rack dual-channel transmitter in a professional touring-grade chassis
- 72 MHz wide tuning range provides flexibility and performance in crowded, unpredictable RF environments
-
Networkable-over-Ethernet connection to provide comprehensive frequency coordination and transmitter remote control via Wireless Workbench software:
- RF mute enable/disable
- RF output power adjustments
- Aux/line level
- Audio input level
- Channel/device name edit
- Firmware updates
- Backwards compatible with PSM900 receivers
- RF Mute Switch allows system setup without causing RF interference
- Sync RF scan information from a P10R bodypack quickly and easily over IR link
- Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
- Spectrum display provides a detailed frequency plot on the menu screen with selectable zoom
- Front-panel audio input gain adjustment and LED level meter with clipping indicator
- Exceptional transmitter linearity vastly reduces frequency intermodulation, allowing more compatible channels per frequency range
- High-contrast LCD with grouped menu items provides an intuitive user interface
- Front or back mountable antennas
- Compatible with PA421A and PA821A antenna combiners
- Loop out connectors for multiple mix setups and easy installation
- Switchable +4 dBu and -10 dBV input level
- Balanced, 1/4" and XLR connectors
- 3.5mm headphone out on the front panel for easy monitoring
Shure PT10T Specs
| RF Carrier Frequency Range | H22: 518 to 584 MHz |
| Compatible Frequencies | Per Band: 39 |
| Tuning Bandwidth | 66 MHz |
| Operating Range | 300' / 90 m (Environment Dependent) |
| Frequency Response | 35 Hz to 15 kHz (±1 dB) |
| Signal to Noise Ratio | 90 dB (Typical) A-Weighted |
| Total Harmonic Distortion (THD) | Ref. ±34 kHz Deviation at 1 kHz <0.5% (Typical) |
| Companding | Patented Shure Audio Reference Companding |
| Spurious Rejection | Ref. 12 dB SINAD: >80 dB (Typical) |
| Frequency Stability | ±2.5 ppm |
| MPX Pilot Tone | 19 kHz (±0.3 kHz) |
| Modulation | FM (±34 kHz Deviation at 1 kHz) MPX Stereo Ref. |
| Operating Temperature | 0 to 135°F / -18 to 57°C |
| RF Output Power | Selectable: 10, 50, 100 mW (+20 dBm) |
| RF Output Impedance | 50 Ohms (typical) |
| Power Requirement | Input: 100 to 240 VAC, 50/60 Hz, 0.5 A Max (5.5, with Outlet Loaded) Output: 100 to 240 VAC, 50/60 Hz, 5 A Max, Unswitched |
| Audio Input | Combination XLR-1/4" /6.3 mm TRS |
| Polarity | XLR: Non-Inverting (Pin 2 Positive with Respect to Pin 3) 1/4" / 6.3 mm: Tip Positive with Respect to Ring |
| Configuration | Electronically Balanced |
| Impedance | 70.2 Kilohms (Actual) |
| Nominal Input Level | Switchable: +4 dBu, -10 dBV |
| Maximum Input Level | +4 dBu: +29.2 dBu -10 dBV: +12.2 dBu |
| Pin Assignments | XLR: 1=Ground, 2=Hot, 3=Cold 1/4" / 6.3 mm TRS: Tip=Hot, Ring=Cold, Sleeve=Ground |
| Phantom Power Protection | Up to 60 VDC |
| Connector Type | 1/4" / 6.3 mm TRS |
| Configuration | Electronically Balanced |
| Impedance | Connected Directly to Inputs |
| Dimensions | 1.7 x 19.0 x 13.5" / 4.3 x 48.3 x 34.3 cm |
| Weight | 10.4 lb / 4.7 kg |
