Omni Boundary Mic with Logic & Preamp - White.

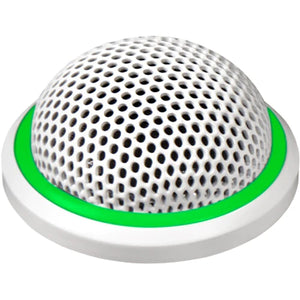

This white Shure MX395-LED Microflex with Logic Control LED is a omnidirectional boundary microphone designed to capture high-quality speech and voice for sound-reinforcement and teleconferencing installations in governmental, institutional, religious, and business settings.
The MX395-LED can be permanently installed on conference tables, desks, or lecterns using the included mounting hardware. Its low-profile design is only 1" in diameter and extends just 0.8" above the mounting surface, ideal for boardrooms and other sites where minimal mic visibility is of high priority and aesthetics are important.
This version of the MX395-LED features an omnidirectional polar pattern best used for several people sitting in a circle around a table. The mic takes advantage of the boundary effect to capture clear speech with reduced room ambience for intelligibility. Use the built-in, low-cut filter to attenuate low-frequency table noise that can muddy your sound.
The MX395-LED can be logic-controlled remotely by various automatic mixers, teleconferencing systems, and control systems. A bi-color LED indicates the status of the mic.
Designed with proprietary CommShield technology, the MX395-LED resists interference from devices such as cell phones and two-way communication devices.
The MX395-LED is equipped with a 5-pin XLR connector and requires 48 to 52V phantom to operate.
Shure MX395 Specs
Microphone
| Form Factor |
Boundary/Surface Mount |
| Sound Field |
Mono |
| Capsule |
Electret Condenser |
| Polar Pattern |
Omnidirectional |
| High-Pass Filter |
150 Hz, 6 dB/Octave |
| Indicators |
1 x Green/Red Ring LED (Status) |
Performance
| Frequency Range |
50 Hz to 17 kHz |
| Maximum SPL |
114 dB SPL |
| Off-Axis Rejection |
45 dB |
| Impedance |
170 Ohms |
| Sensitivity |
-28 dBV/Pa |
| Dynamic Range |
93 dB |
| Signal-to-Noise Ratio |
75 dB |
| Equivalent Noise Level |
21 dB A-Weighted |
| THD |
1% |
| CMRR |
45 dB |
Connectivity
| Output Connectors (Analog) |
1 x XLR 5-Pin Female |
Power
| Operating Voltage |
48 to 52 V (Phantom Power) |
| Operating Current Consumption |
8 mA |
Physical
| Color |
White |
| Mounting |
Surface-Mount (with Included Hardware) |
| Operating Temperature |
0 to 135°F / -17.78 to 57.22°C |
| Operating Humidity |
0 to 95% |
| Storage Temperature |
-20 to 165°F / -28 to 74°C |
| Dimensions |
ø: 1.26 x H: 4.02" / ø: 32 x H: 102 mm |
| Weight |
0.3 lb / 136 g |
