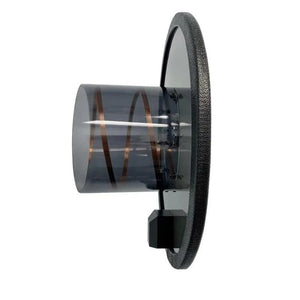

Tour Series Helical Antenna for Wireless & PSM Systems.
The Shure HA-4540 Tour Series Helical Antenna offering outstanding performance in either plane enabling performers to move freely about while mitigating the fear of signal dropouts. This passive antenna system can be used as either a transmitter (IEM use) or receiver (mic use) to enhance your current systems performance.
SPECIFICATIONS
- RF Frequency Range / Bandwidth 460 - 900 MHz
- Impedance 50 ohms
- Beamwidth 72 degrees
- Antenna Gain 7-9 dBi (on axis)
- Front-to-Back Ratio / Rear Rejection 14 dB RF
- Connector BNC female, right angle
- Dual Mounting Adapter 5/8”-27 U.S. standard & 3/8”-16 European standard
