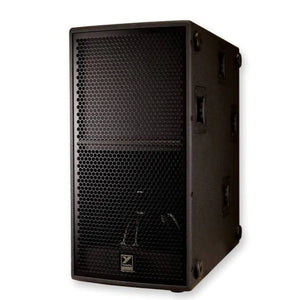

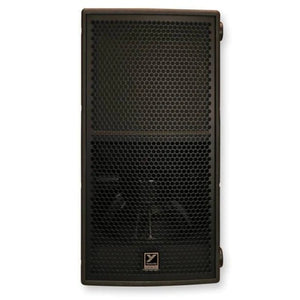

The SA115S is the most compact powered subwoofer in the Synergy series, and an ideal companion for the SA102 full-range loudspeaker. Featuring a Tom Danley patented 15" tapped-horn design, it delivers an astonishing 9000 watts of peak power (4500 watts program).

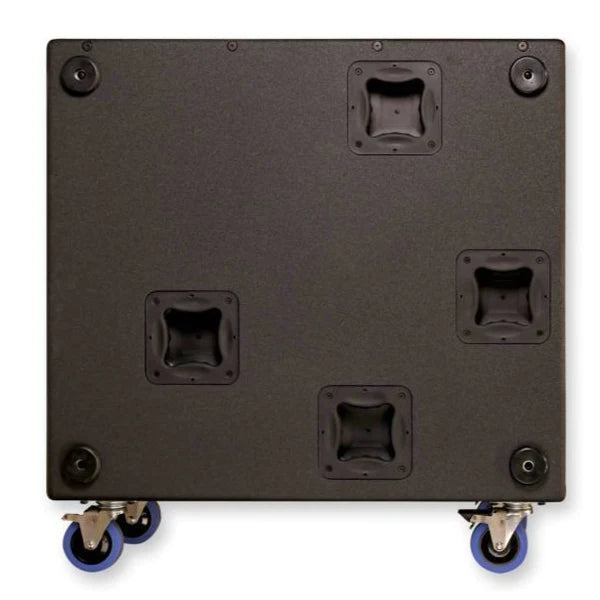

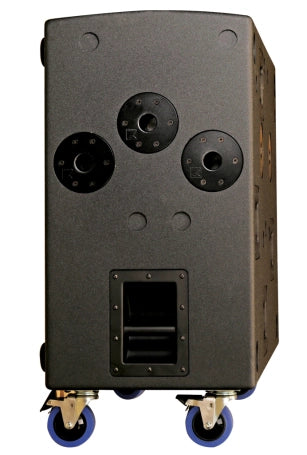

The key features of the Synergy series are versatility and ease of use. The SA115S has multiple stand adapters on the top and sides, so SA102 top boxes can be positioned for optimal coverage in any environment.
For mid-sized and large venues that need big sound and a small footprint, the SA115S packs the exceptional tone of a Synergy subwoofer into a space-saving enclosure that fits comfortably onto any stage.
Features
9000 W Peak Power (4500 W Program)
15” Woofer with 4.5” Voice Coil
Tapped Horn Design
Exceptionally High Output and Deep Bass
Made in Canada
Specifications
System Type
Powered Subwoofer
Power Rating
9000 W Peak (4500 W Program)
Measured Max SPL (C-Weighted CM Max Hold)
135 dB Peak (129 dB Continuous)
Frequency Response (Hz +/- 3dB)
31 Hz - 100 Hz
Crossover Frequency
100 Hz
Cabinet Configuration
Tapped Horn
LF Driver(s)
1x 15" Neodymium with 4.5" Voice Coil
LF Protection
Excursion, Voice Coil Thermal (RMS)
LF Amplifier Type
Class D
Cooling Scheme
Convection
Power Cable
Removable Locking powerCON® TRUE1 Input and Loop Thru Output

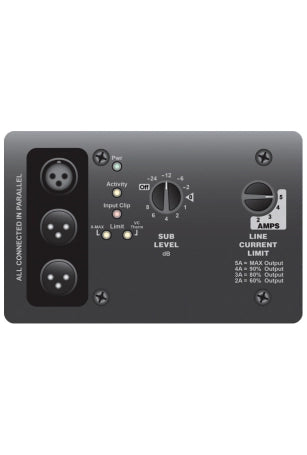

In / Out Connections
1x XLR Inputs / 2x XLR Outputs
Input Sensitivity (Vrms Sine)
Line In 1.4 at Center, 0.56 at Max
Controls
Thermal Limiter Advance for Power Consumption Management
