The SA102 extends the Synergy array series with a smaller, lighter full-range powered cabinet. It’s ideal for medium and large venues, outdoor festivals, and inclined-seating theatres.
The SA102 features a patented Paraline Lens to create a precisely shaped wavefront that matches the horn’s physical coverage pattern. It also uses Synergy Horn technology to couple the Paraline Lens with a 10-inch high-output woofer. The result is increased efficiency and directivity, without the comb-filtering often associated with arrayed horns and woofers.
The cabinet can be used vertically or horizontally, and vertical coverage is asymmetrical so users can change the directivity by simply inverting the cabinet, without the complications of steering software or physically tilting the array.

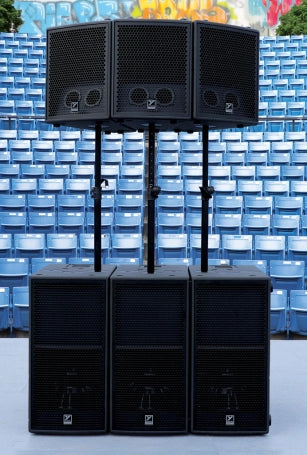

Pair with the SA115S subwoofer for the ultimate point source system.
Features
2400 W Peak Power (1200 W Program)
10” LF Woofer with 3” Voice Coil
4” HF Driver
Incorporates Tom Danley’s Patented Paraline Lens and Synergy Horn Technologies
1x XLR Input, 2x XLR Outputs
Removable Locking powerCON® TRUE1 Input and Loop Thru Output
Supports Vertical, Inverted Vertical, and Horizontal Placement
Extremely Well-Controlled Coverage Pattern
Made in Canada
Specifications
System Type
Full-Range Powered Speaker
Power Rating
2400 W Peak (1200 W Program)
Measured Max SPL (C-Weighted CM Max Hold)
133 dB Peak, 127 dB Continuous
Frequency Response (Hz +/- 3dB)
60 Hz - 18 kHz
Dispersion (H x V)
30° x 45° Asymmetrical (7° Up, 38° Down)
Crossover Frequency
750 Hz
Cabinet Configuration
Patented Synergy Horn and Paraline Lens Technology
Driver Configuration
10" LF Woofer, 4” HF Compression Driver
HF Driver(s)
4" Diaphragm, Neodymium
HF Protection
Peak and Average Limiting
LF Driver(s)
10" Neodymium Woofer with 3" Voice Coil
LF Protection
Excursion, RMS
HF Power Amplifier (Watts)
500 W Peak (300 W Program)
HF Amplifier Type
3-Tier Class H
LF Power Amplifier (Watts)
1600 W Peak (900 W Program)
LF Amplifier Type
Class D
Cooling Scheme
Convection
Power Cable
Removable Locking powerCON® TRUE1 Input and Loop Thru Output
Power Consumption
200 VA / 400 VA

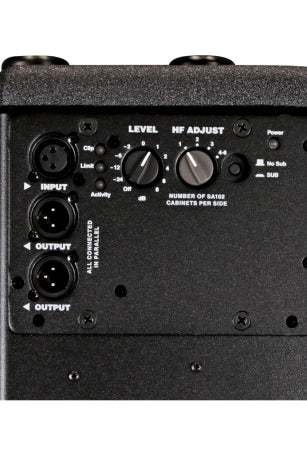

Inputs
1x XLR
Input Sensitivity (Vrms Sine)
Line In 1.4 at Centre, 0.56 at Max
Level Controls
Volume
EQ Controls
HF Adjust, Mode Switch (Sub / No Sub)
LED Indicators
Power, Limit, Clip
Bar Handles
1 (1x Each Side)
Enclosure Materials
Multi-ply 15 mm Birch Plywood
Standard Rigging Hardware
1/4" - 20 Thread Eyebolts (4x Top, 4x Bottom)
Stacking Feature
Interlocking UHMW Feet (Top and Bottom)
Covering / Finish
Paint
Dimensions (DWH)
21.3” x 17.4” x 22.8” (54 cm x 45 cm x 58 cm)
Weight
69 lbs / 31.3 kg
Specifications subject to change without notice
