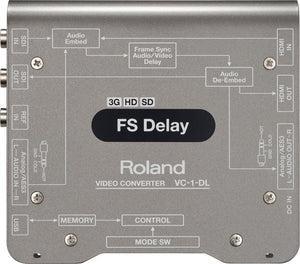

Roland's new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems. They include the VC-1HS (HDMI to SDI), VC-1-SH (SDI to HDMI), VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync) and VC-1-SC (Up/Down/Cross Scan converter to/from SDI/HDMI).
The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.
The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.
In live production as you add more video components to a signal flow, latency is introduced. The VC-1-DL converter not only allows bidirectional conversion of SDI/HDMI but it also provides frame sync and delay adjustment of up to 9 fields (4.5 frames) for audio and video independently. This is helpful when keeping various types of cameras in sync as well as ensuring a projector stays in sync with an LED wall. In this way it is an indispensable tool live production, broadcast and recording applications.

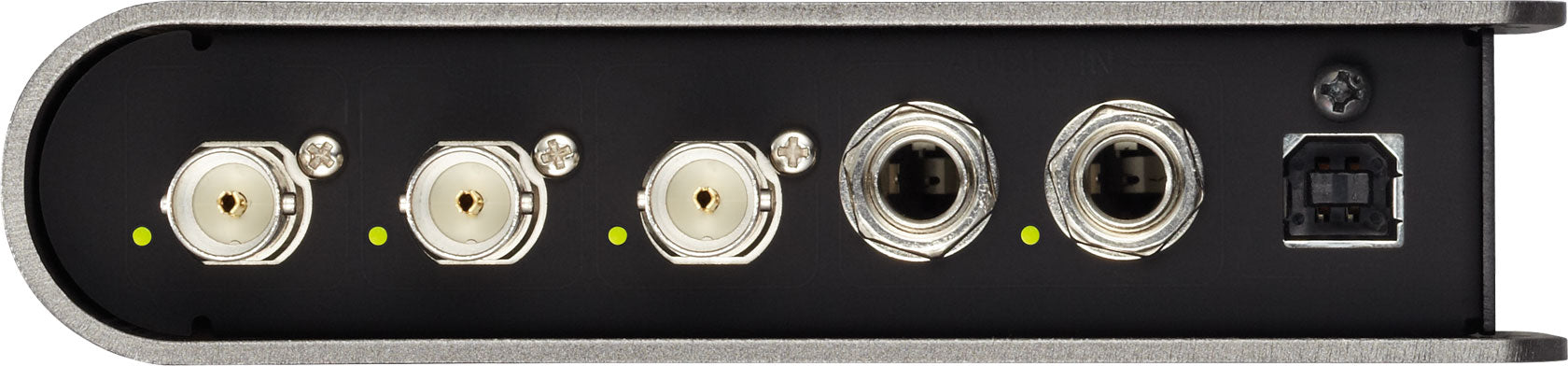

Input | SDI Connector: 1 x BNC type HDMI Connector: 1 x Type A (19 pins) Analog Audio Connector: 1/4" TRS phone type (balanced) x 1 pair (L/R) Digital Audio Connector: 1/4" TRS phone type (balanced) x 1 (Combined use with Analog Audio R ch Connector) Reference Connector: 1 x BNC type Reference Signal Format: Black Burst, Bi-level, Tri-level Reference Impedance: 75 Ω |
Processing | Video delay (0 to 4.5 frames) Audio delay (0 to 4.5 frames) Audio embedding Audio de-embedding |

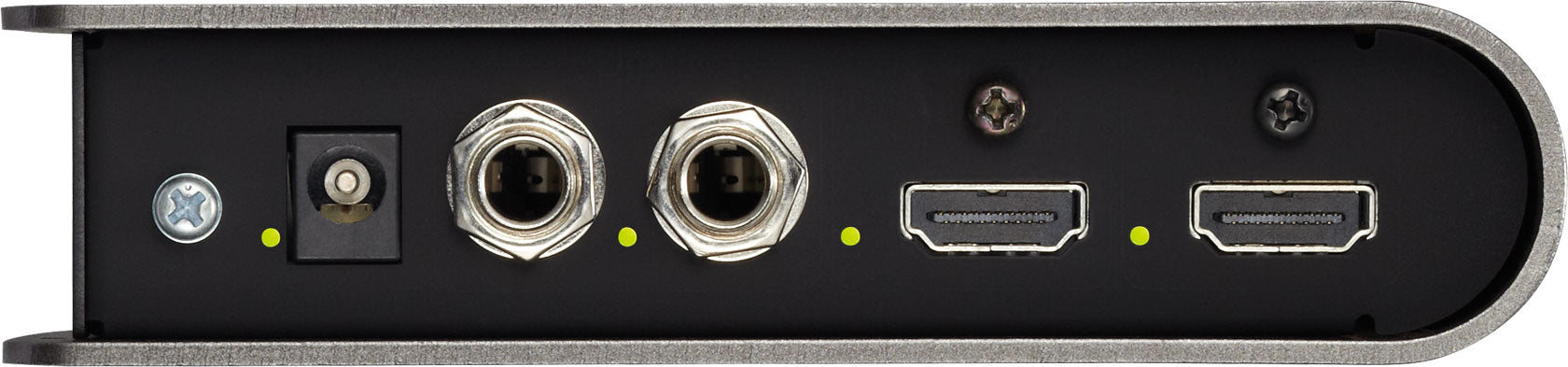

Output | SDI Connector: 1 x BNC type HDMI Connector: 1 x Type A (19 pins) Analog Audio Connector: 1/4" TRS phone type (balanced) x 1 pair (L/R) Digital Audio Connector: 1/4" TRS phone type (balanced) x 1 (Combined use with Analog Audio R ch Connector) |
Input Format | SDI Input Signal Standards: SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C SDI Input Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M), 1280 x 720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720 x 487/59.94i, 720 x 576/50i (Conforms to ITU-R BT.601-5) Audio Format: Linear PCM, 24 bits, 48 kHz, 1 x 16 channel (Conforms to SMPTE 299M, SMPTE 272M-C) HDMI Input Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280 x 720/60p/59.94p/50p/30p/29.97p/25p, 720 x 480/59.94i, 720 x 576/50i (Conforms to CEA-861-E) HDMI Input Audio Format: Linear PCM, 24 bit, 48 kHz, 1 x 8 channel |
Output Format | SDI Output Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C SDI Output Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M), 1280 x 720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720 x 487/59.94i, 720 x 576/50i (Conforms to ITU-R BT.601-5) SDI Output Audio Format: Linear PCM, 24 bits, 48 kHz, 1 x 16 channel (Conforms to SMPTE 299M, SMPTE 272M-C) HDMI Output Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280 x 720/60p/59.94p/50p/30p/29.97p/25p, 720 x 480/59.94i, 720 x 576/50i (Conforms to CEA-861-D) HDMI Output Audio Format: Linear PCM, 24 bit, 48 kHz, 1 x 8 channel |
Level | Analog Audio Input: 4 dBu Analog Audio Maximum Input: 24 dBu Analog Audio Output: 4 dBu |
Impedance | Analog Audio Input: 110 Ω Analog Audio Output: 600 Ω Digital Audio Output: 110 Ω |
Signal Format | Digital Audio Output: AES3, 16/24 bits, 32/48 kHz, 2 channel |
USB | 1 x USB Type B (Hi-Speed USB) |
Power Supply | 9 VDC |
Power Consumption | 8 W |
Operation Temperature | 32 to 104˚F (0 to 40˚C) |
Dimensions (W x D x H) | 5.93 x 5.12 x 1.18" (15.06 x 13.00 x 2.99 cm) |
Weight | 1.10 lb (0.50 kg) |
Package Weight | 2.285 lb |
Box Dimensions (LxWxH) | 11.05 x 10.05 x 2.85" |
