Description

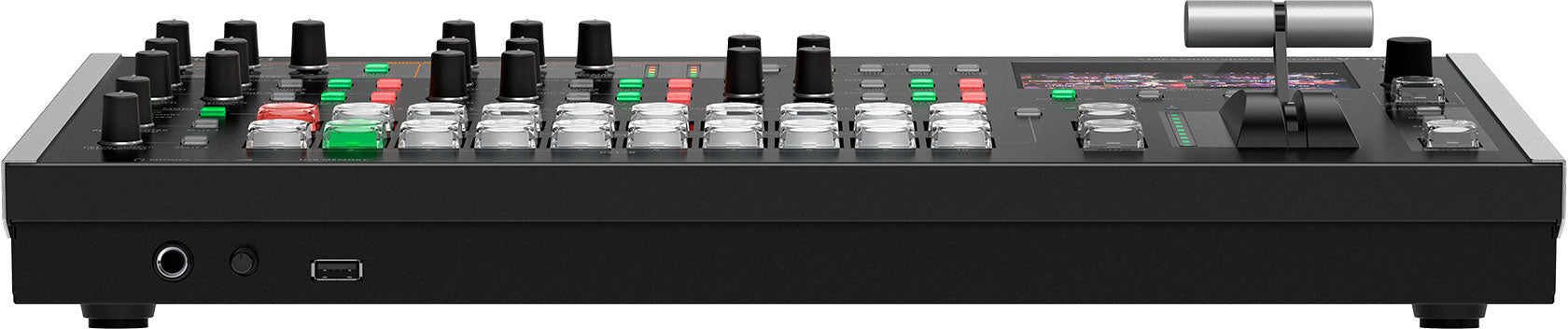

The Roland V-160HD is the next generation of the Roland Professional Video Switcher products lineup. The V-160HD is the first Roland V-Series Streaming capable Video Switcher. This NEW Generation hybrid event switcher incorporates eight SDI and eight HDMI inputs, three SDI and three HDMI outputs, USB-C webcam streaming output, 40-channel audio mixing, advanced automation features, and more.The V-160HD sets a new standard in hybrid event switching. Connect with live audiences in Full HD with comprehensive SDI and HDMI I/O and simultaneously stream to any popular web platform via USB-C. There’s also an eight-layer video effects engine, a 40-channel digital audio mixer, and integrated PTZ camera control, plus next-generation cue management and live show automation features that make tough production tasks simple. Ergonomically wrapped up in a portable design with a broadcast-style interface can be easily handled by a single operator.Main Features:•Portable hybrid event switcher with comprehensive features and connectivity•Eight 3G SDI inputs with frame rate converters•Eight 1080p HDMI inputs with frame rate converters, including four with real-time scalers•Seven total outputs across SDI, HDMI, and USB-C streaming•40-channel digital audio mixer with effects and processing•Eight-layer video effects engine•Powerful live production automation with sequencing, macros, and preset memories•PTZ control with support for multiple brands and mixed protocols running at once•Extensive device control with Bluetooth, USB, RS-232, and LAN•Remote control software available for iPad, macOS, and Windows•Wireless and wired camera tally support
- VIDEO
- Video Processing
- 4:2:2 (Y/Pb/Pr), 8-bit

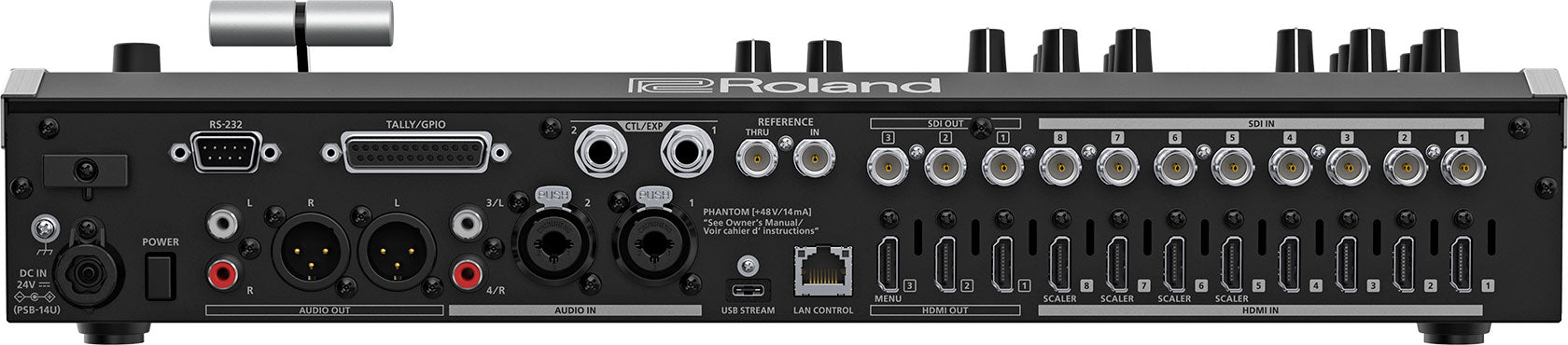

- Input Connectors
- HDMI IN 1--4: HDMI type A x 4
* HDCP Supported
HDMI IN 5--8: HDMI type A x 4
* HDCP Supported
* Multi-format Supported
SDI IN 1--8: BNC type x 8
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M - Output Connectors
- HDMI OUT 1--3: HDMI type A x 3
* HDCP Supported
SDI OUT 1--3: BNC type x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
USB STREAM: USB Type-C (TM)
PREIVEW: HDMI type A - Input Formats
- HDMI IN 1--4, SDI IN 1--8
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz
*4 FRAME RATE = 50 Hz
HDMI IN 5--8
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640×480/60Hz), SVGA (800×600/60Hz), XGA (1024×768/60Hz)
WXGA (1280×800/60Hz), SXGA (1280×1024/60Hz)
FWXGA (1366×768/60Hz), SXGA+ (1400×1050/60Hz)
UXGA (1600×1200/60Hz), WUXGA (1920×1200/60Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz
Still Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
JPG File (.jpg) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 16 files in the internal memory.
* It can be exported in the USB memory.
* PNG alpha channel supported. - Output Formats
- HDMI OUT 1--2, SDI OUT 1--3:
720/59.94p *1, *4
720/60p *1, *5
720/50p *1, *6
1080/59.94i *2, *4
1080/60i *2, *5
1080/50i *2, *6
1080/59.94p *3, *4
1080/60p *3, *5
1080/50p *3, *6
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i
*3 SYSTEM FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 60 Hz
*6 FRAME RATE = 50 Hz
HDMI OUT 3:
1080/59.94p *1
1080/60p *2
1080/50p *3
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 60 Hz
*3 FRAME RATE = 50 Hz
SUSB STREAM:
1080/59.94p, 720/59.94p, 640×480/59.94p ※1
1080/29.97p, 720/29.97p, 640×480/29.97p ※2
1080/50p, 720/50p, 640×480/50p ※3
1080/25p, 720/25p､640×480/25p ※4
*Uncompressed format (YUV2) and Compressed format (Motion JPEG) supported.
*1 FRAME RATE(USB OUT) = 59.94 Hz
*2 FRAME RATE(USB OUT) = 29.97Hz
*3 FRAME RATE(USB OUT) = 50Hz
*4 FRAME RATE(USB OUT) = 25Hz - Video Effects
- Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 4 (SQUARE, CIRCLE, DIAMOND), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key)
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output - AUDIO
- Audio Processing
- Sampling rate: 24 bits/48 kHz
- Audio formats
- USB STREAM (input/output): Linear PCM, 24 bits/48 kHz, 2ch
Bluetooth (input): Linear PCM, 24 bits/48 kHz, 2ch
HDMI IN: Linear PCM, 24 bits/48 kHz, 2ch
HDMI OUT: Linear PCM, 24 bits/48 kHz, 8ch
SDI IN: Linear PCM, 24 bits/48 kHz, 2ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits/48 kHz, 8ch (Conforms to SMPTE 299M) - Input Connectors
- Analog:
AUDIO IN 1--2: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load)
AUDIO IN 3/L, 4/R: RCA phono type
Digital:
USB STREAM: USB Type-C (TM)
Bluetooth
HDMI IN 1--8: HDMI type A x 8
SDI IN 1--8: BNC type x 8 - Output Connectors
- Analog:
AUDIO OUT: XLR type
AUDIO OUT: RCA phono type
PHONES: Stereo 1/4-inch phone type
Digital:
USB STREAM: USB Type-C (TM)
HDMI OUT 1--3: HDMI type A x 3
SDI OUT 1--3: BNC type x 3 - Input Level
- AUDIO IN 1, 2: -60--+4 dBu (Maximum: +24 dBu)
AUDIO IN 3/L, 4/R: -10 dBu (Maximum: +10 dBu) - Input Impedance
- AUDIO IN 1, 2: 9.4 k ohms (ANALOG GAIN 0<24 dBu), 74.4 k ohms (ANALOG GAIN ≧24dBu)
AUDIO IN 3/L, 4/R: 47 k ohms - Output Level
- AUDIO OUT (XLR): +4 dBu (Maximum: +24 dBu)
AUDIO OUT (RCA): -10 dBu (Maximum: +10 dBu)
PHONES: 92 mW + 92 mW (32 ohms) - Output Impedance
- AUDIO OUT (XLR): 600 ohms
AUDIO OUT (RCA): 1 k ohm
PHONES: 10 ohms - Audio Effects
- Auto Mixing, Delay, Reverb, High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, Equalizer, Voice changer
Multi-band compressor, Limiter, Test tone output - Bluetooth
- Ver 4.2
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method) - Display
- 4.3 inches TFT Color LCD: 480 x 272 dots
