Description

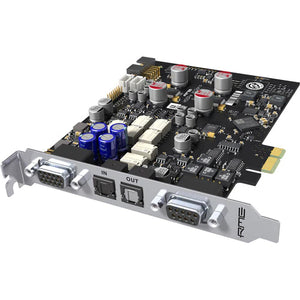

Add analog and multiformat digital I/O to your Mac/Windows computer with the RME HDSPe AIO Pro, a PCI Express audio interface that offers solid clocking, high-performance converters, and flexible inputs and outputs in a single PCIe slot. Utilizing technology from RME's top-shelf ADI-2 Pro AD/DA converter, the HDSPe AIO Pro delivers significant gains in signal-to-noise ratio performance while offering selectable reference levels and ultralow latency.
Between the card and its included breakout cables, there are eight channels of ADAT I/O, stereo AES/EBU and S/PDIF I/O, unbalanced stereo analog I/O, DIN 5-pin MIDI I/O, and a high-power headphone output, all simultaneously operational. The SteadyClock FS clock section ensures maximum jitter suppression of external clock signals along with low inherent jitter. Plus, optional modules can be used to add timecode and word clock connections for tight synchronization.
- Stereo analog input and output with four selectable reference levels
- All analog I/Os capable of 24-bit / 192 kHz with a constant number of available channels
- ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
- S/PDIF stereo digital I/O, capable of 192 kHz
- AES/EBU stereo digital I/O, capable of 192 kHz
- High-power headphone output with a separate D/A converter
- MIDI I/O with 16 channels of high-speed MIDI
- DIGICheck, RME's unique metering and analyzing tool
- TotalMix FX, a 760-channel mixer with 42-bit internal resolution
- Native PCI Express uses no PCI to PCI Express bridge
- Optional time code module (TCO) for external video/SMPTE synchronization
- Optional word clock module (WCM) for wordclock input and output
RME HDSPE AIO PRO Specs
| Form Factor | Internal Card |
| Display | None |
| Channels of I/O | Analog: 2 Inputs / 4 Outputs Digital: 12 Inputs / 12 Outputs |
| Built-In DSP | None |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Preamps | None |
| Built-In Microphone | None |
| Expansion Slots | None |
| Pad | None |
| High-Pass Filter | None |
| Solo/Mute | None |
| Analog Audio I/O | 1 x Stereo RCA Coaxial Unbalanced Line Input (on Included Breakout Cable) 1 x Stereo RCA Coaxial Unbalanced Line Output (on Included Breakout Cable) 1 x 1/4" TRS Unbalanced Headphone Output (on Included Breakout Cable) |
| Phantom Power | None |
| Digital Audio I/O | 1 x RCA Coaxial S/PDIF Input (on Included Breakout Cable) 1 x RCA Coaxial S/PDIF Output (on Included Breakout Cable) 1 x XLR 3-Pin AES3 Input (on Included Breakout Cable) 1 x XLR 3-Pin AES3 Output (on Included Breakout Cable) |
| Host Connection / USB | 1 x PCIe |
| Host Connection Protocol | PCIe |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | 1 x DIN 5-Pin Input (on Included Breakout Cable) 1 x DIN 5-Pin Output (on Included Breakout Cable) |
| Other I/O | 1 x DE-9/DB-9 9-Pin Breakout Cable In/Out 1 x DE-15/DB-15 15-Pin Breakout Cable In/Out |
| Wireless Connectivity | None |
| Frequency Response | RCA Line Inputs: 7 Hz to 20.5 kHz -0.1 dB (at 44.1 kHz) 2 Hz to 45.5 kHz -0.5 dB (at 96 kHz) 2 Hz to 92 kHz -1 dB (at 192 kHz) RCA Line Outputs: 10 Hz to 20.2 kHz -0.1 dB (at 44.1 kHz) 4 Hz to 44.6 kHz -0.5 dB (at 96 kHz) 3 Hz to 83 kHz -1 dB (at 192 kHz) |
| Maximum Output Level | Headphone Outputs: +19 dBu at 0 dBFS (150-Ohm Load) +7 dBu at 0 dBFS (16-Ohm Load) |
| Headphone Output Power | 730 mW per Channel into 32 Ohms (Max, 0.1% THD) |
| Impedance | RCA Line Inputs: 18 Kilohms RCA Line Outputs: 75 to 80 Ohms Headphone Outputs: 0.1 Ohms |
| SNR | RCA Line Inputs: 117 dB RMS (Unweighted, at +19 dBu, at +24 dBu) 120 dB (A-Weighted, at +19 dBu, at +24 dBu) 116 dB RMS (Unweighted, at +13 dBu) 118 dB (A-Weighted, at +13 dBu) 112 dB RMS (Unweighted, at +4 dBu) 114 dB (A-Weighted, at +4 dBu) RCA Line Outputs: 117 dB RMS (Unweighted, at +19 dBu) 119 dB (A-Weighted, at +19 dBu) 116 dB RMS (Unweighted, at +13 dBu) 118 dB (A-Weighted, at +13 dBu) 114 dB RMS (Unweighted, at +4 dBu) 116 dB (A-Weighted, at +4 dBu) 110 dB RMS (Unweighted, at -2 dBu) 112 dB (A-Weighted, at -2 dBu) Headphone Outputs: 117 dB RMS (Unweighted, at +19 dBu) 119 dB (A-Weighted, at +19 dBu) 113 dB RMS (Unweighted, at +7 dBu) 115 dB (A-Weighted, at +7 dBu) |
| THD | RCA Line Inputs: -113 dB / 0.0002% (at -1 dBFS) RCA Line Outputs: < -107 dB / 0.0005% |
| THD+N | RCA Line Inputs: -110 dB / 0.0003% (at -1 dBFS) RCA Line Outputs: -105 dB / 0.0006% (at 0 dBFS) Headphone Outputs: -97 dB / 0.0016% (32-Ohm Load) |
| Channel Separation | RCA Line Inputs: > 110 dB RCA Line Outputs: > 110 dB |
| dBFS Reference Level | Line Inputs: +4 / +13 / +19 / +24 dBu = 0 dBFS (Selectable) Line Outputs: -2 / +4 / +13 / +19 dBu = 0 dBFS (Selectable) |
| Sample Rates | Up to 192 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit |
| Latency | Zero-Latency Direct Monitoring A/D Conversion: 0.11 ms at 44.1 kHz A/D Conversion: 0.1 ms at 48 kHz A/D Conversion: 0.06 ms at 96 kHz 0.026 ms at 192 kHz D/A Conversion: 0.14 ms at 44.1 kHz D/A Conversion: 0.13 ms at 48 kHz |
| Sync Sources | ADAT, AES3, Internal, S/PDIF |
| Clocking | AES: Lock Range: 28 to 200 kHz Jitter Suppression: > 50 dB (2.4 kHz) S/PDIF: Output Voltage: 1 to 2.3 V p-p Lock Range: 28 to 200 kHz Jitter Suppression: > 50 dB (2.4 kHz) ADAT: Lock Range: 31.5 to 50 kHz Jitter Suppression: > 50 dB (2.4 kHz) |
| Memory Card Slot | None |
| OS Compatibility | Windows XP or Later macOS 10.6 or Later *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
| Included Software | None |
| Included Plug-Ins | Special Processing: Ozone 10 Elements Scuffham Amps SGEAR Brainworx BX Masterdesk Dynamics: Brainworx Opto Compressor Tuning: Auto-Tune Unlimited Virtual Instruments: True Sound Studio RME Drum Sample Pack |
| Supported Drivers/API & Plug-Ins | Proprietary |
| Mobile App Compatible | No *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile Device Compatibility | None |
| Required Hardware | Available PCIe Card Slot |
| Internet Connection | Required for Software/Driver Download |
| Power Requirements | PCIe |
| Package Weight | 1.405 lb |
| Box Dimensions (LxWxH) | 12.1 x 7 x 3.9" |
