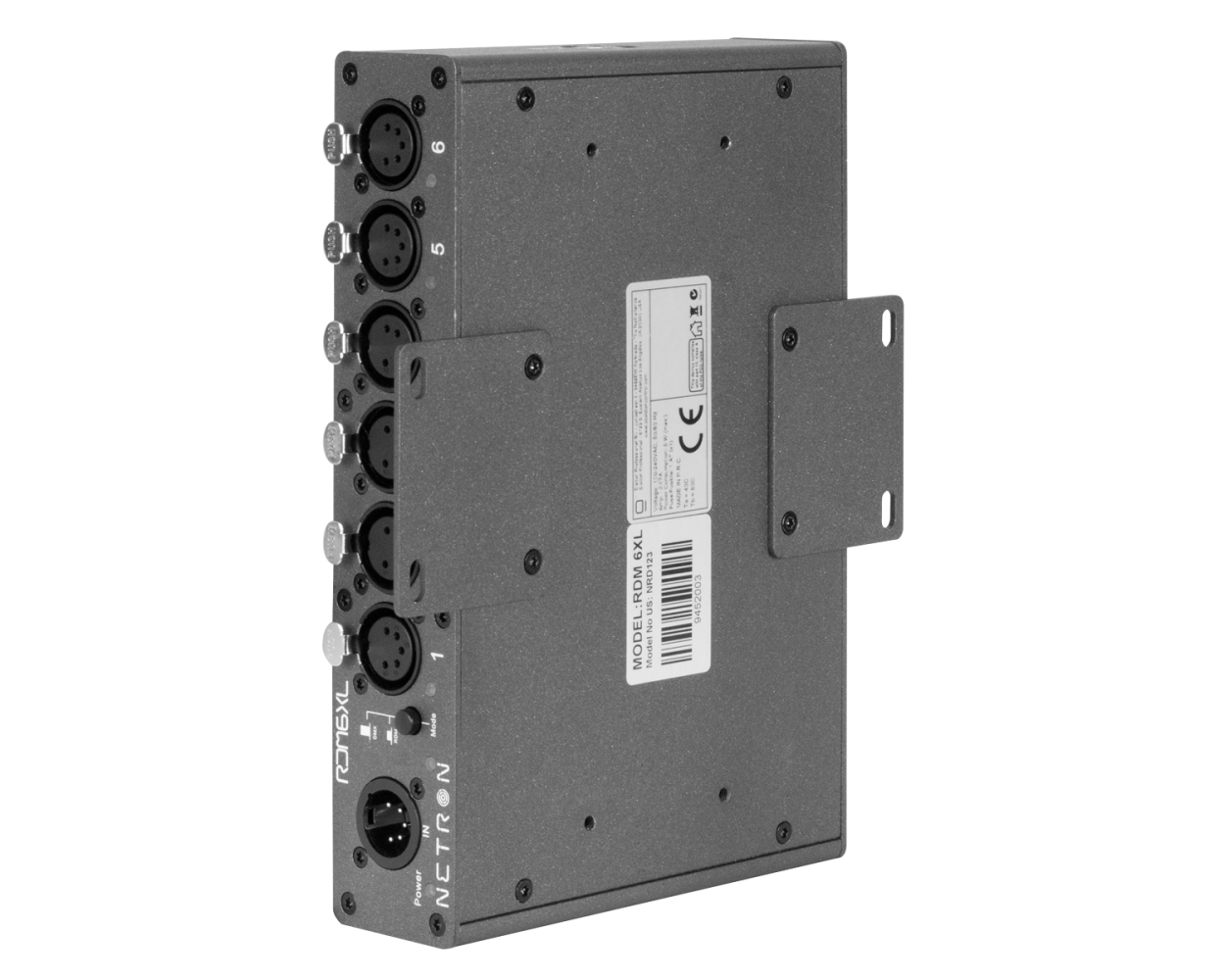

The Netron RDM 6XL is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated 5pin XLR outputs and flexible mounting options to cover any situation.

Key Features

(6) XLR 5pin outputs
DMX and RDM compliant
Optically isolated ports
Power / DMX Through connectors
Powder-coated aluminum rack housing

Front

5pin DMX Input
(6) 5pin Opto-Isolated DMX Outputs
RDM Enable

Back

5pin DMX Input (parallel with front)
5pin DMX Through
Terminate
Locking Power In/Thru

Standalone
Truss-mount (M10 or M12 mounting hole)
Wall-mount horizontal or vertical (included)
DIN Rail horizontal or vertical (included)
Rack-mount option (requires NET Shelf)

Front

5pin DMX Input
(6) 5pin Opto-Isolated DMX Outputs
RDM Enable

Back

5pin DMX Input (parallel with front)
5pin DMX Through
Terminate
Locking Power In/Thru

Physical

Length: 215 mm (8.5 in.)
Width: 139 mm (5.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)

Electrical

100-240 V nominal, 50/60 Hz, 10W

Approvals / Ratings

cETLus / CE / IP20
