The NETRON RDM 10 is a first of its kind hybrid splitter. Dual DMX input, 10 port RDM Splitter, Merger and EtherDMX Gateway are unified into the RDM10, with an advanced feature set to cover a wide variety of applications. 99 internal cues, factory and user presets plus external contact closures provide a unique combination of multiple devices to solve many required tasks in one powerful unit.
Key Features
10 assignable DMX outputs
Integrated 2 Universe Artnet/sACN node
Configurable DMX refresh rate
Dual DMX Inputs for backup and signal loss options
Remote configuration via internal webpage
1.8'' OLED Display with rotary knob
99 Internal cues with fade and delay time
Contact closures for cue or preset recall
Powder-coated aluminum rackmount housing

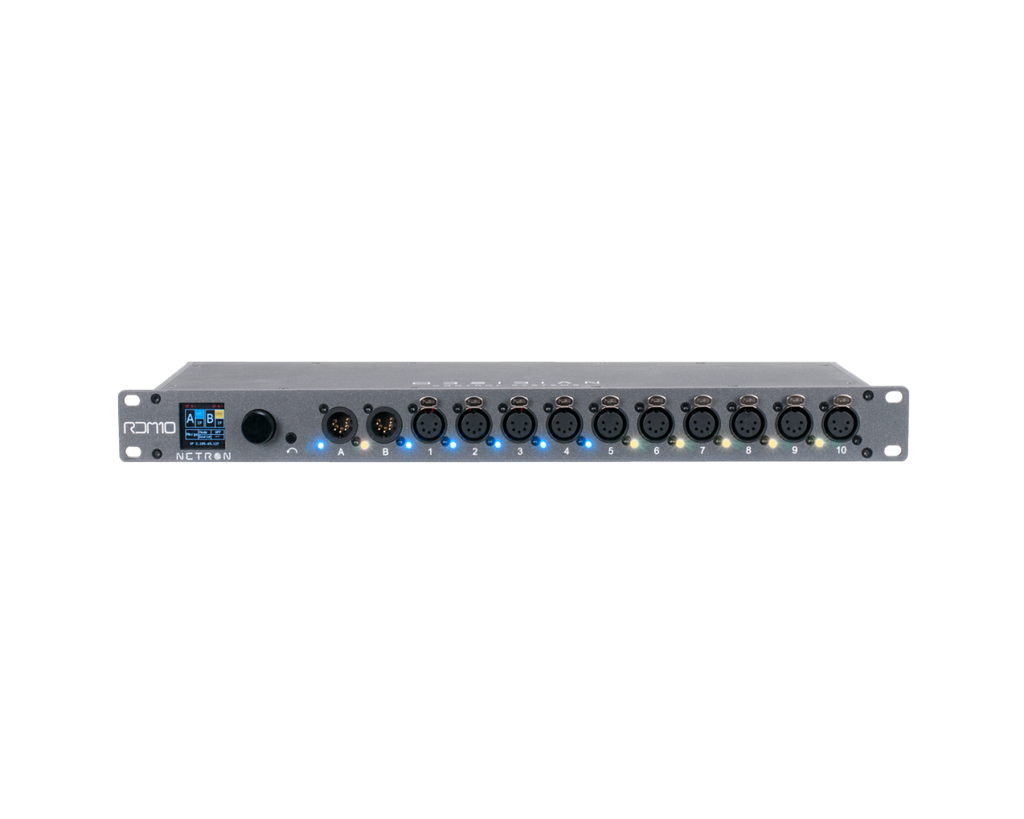

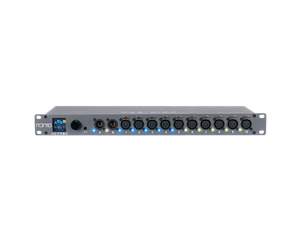

Front
(2) 5pin DMX Input
(10) 5pin Opto-Isolated DMX Outputs
Full color OLED display
Encoder w. Push to Select / Exit Button

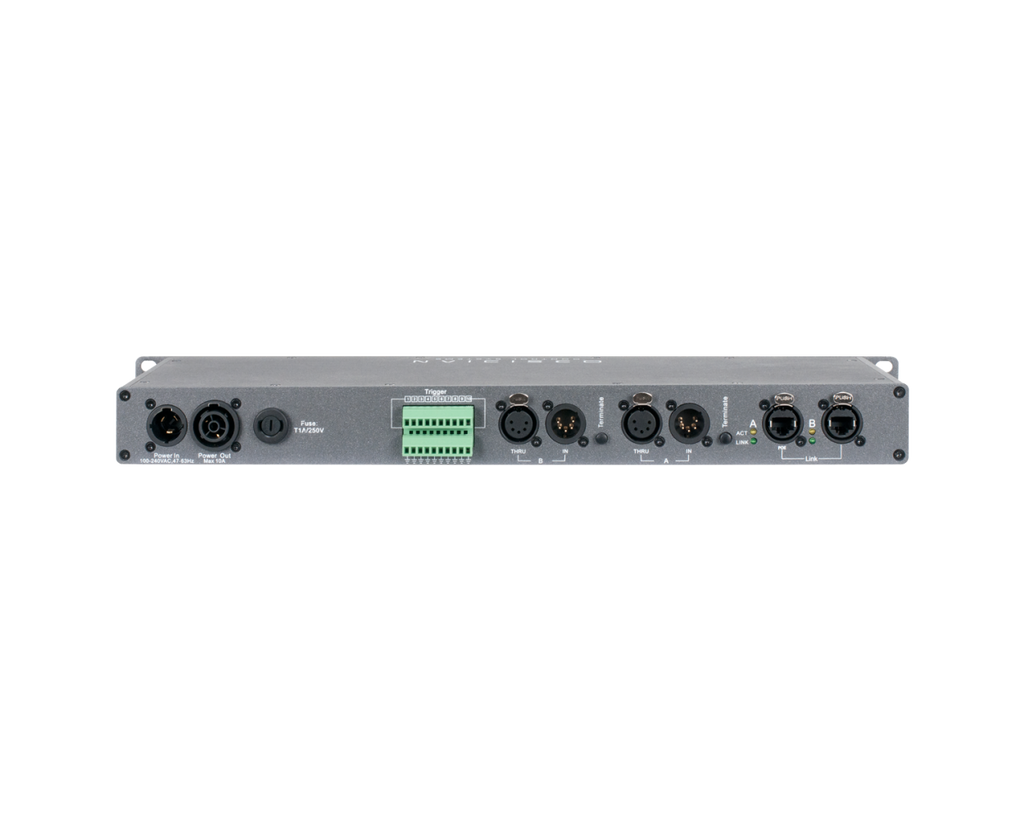

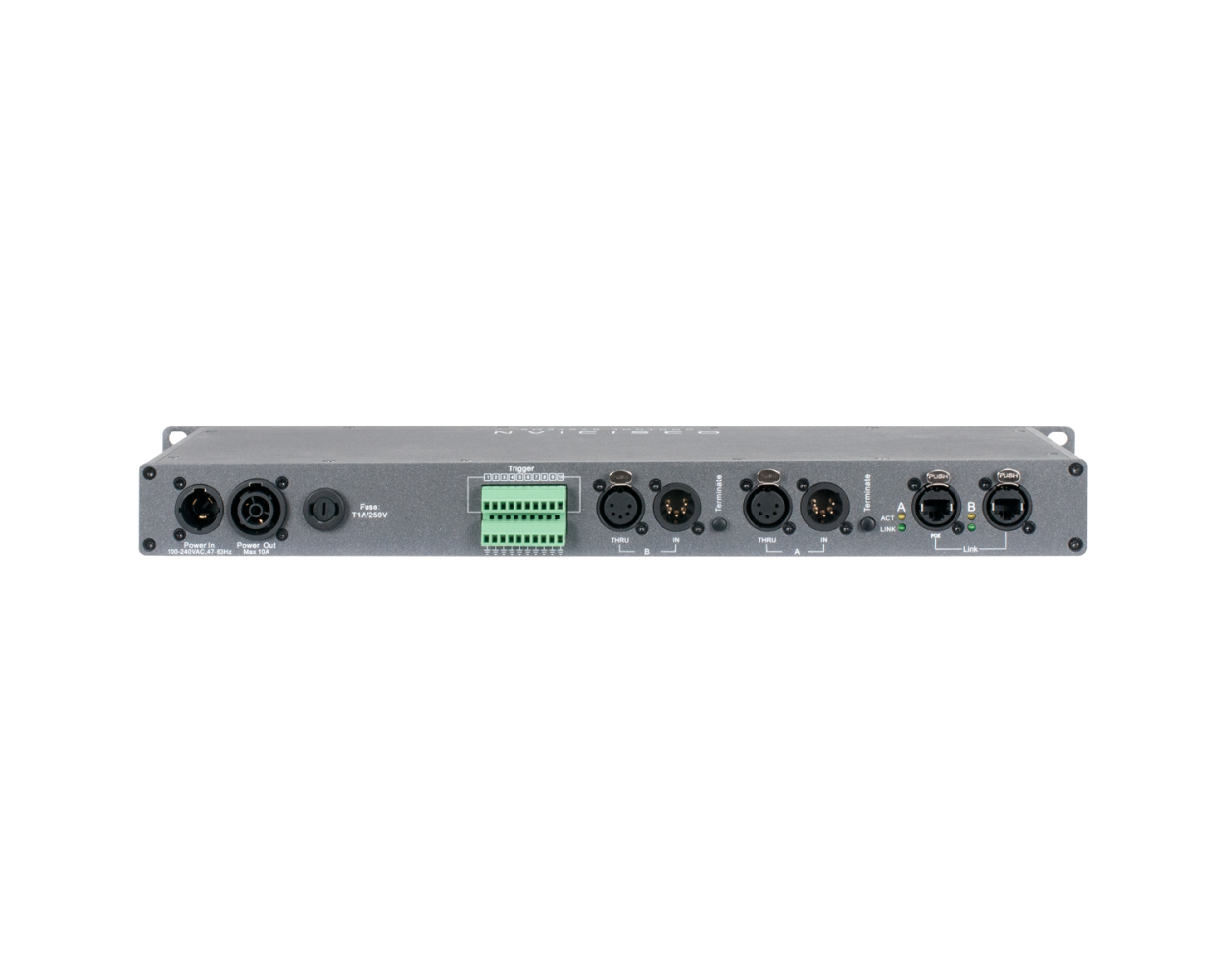

Back
(2) 5pin DMX Input (parallel with front)
(2) 5pin DMX Through
(2) Locking RJ45 Ethernet Network In
(10) Contact Closures (Terminal Block)
Locking Power In/Thru
Rackmount
Front
(2) 5pin DMX Input
(10) 5pin Opto-Isolated DMX Outputs
Full color OLED display
Encoder w. Push to Select / Exit Button
Back
(2) 5pin DMX Input (parallel with front)
(2) 5pin DMX Through
(2) Locking RJ45 Ethernet Network In
(10) Contact Closures (Terminal Block)
Locking Power In/Thru
Physical
Length: 482.5 mm (19 in.)
Width: 146 mm (5.7 in.)
Height: 44 mm (1.7 in.)
Weight: 1.82 kg (4 lbs)
Electrical
100-240 V nominal, 50/60 Hz
POE 802.3af
Power Consumption: 10W
Approvals / Ratings
cETLus / CE / IP20
