Description
1400 Watt, 2 - way power
• 128 dB max SPL
• 8 IN digital mixer w/ multiple FX, Amp simulator and remote control
• 12” Woofer, 2.5” v.c.
• 8 x 2” Ultra compact fullrange, 1.0 v.c.
• 120° x 30° slightly tilted pattern control
• DSP processing
• Pole mountable, easy set-up and transportation

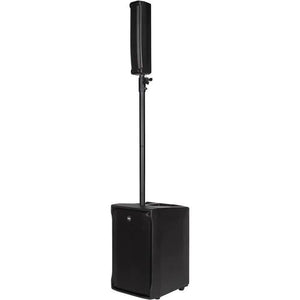

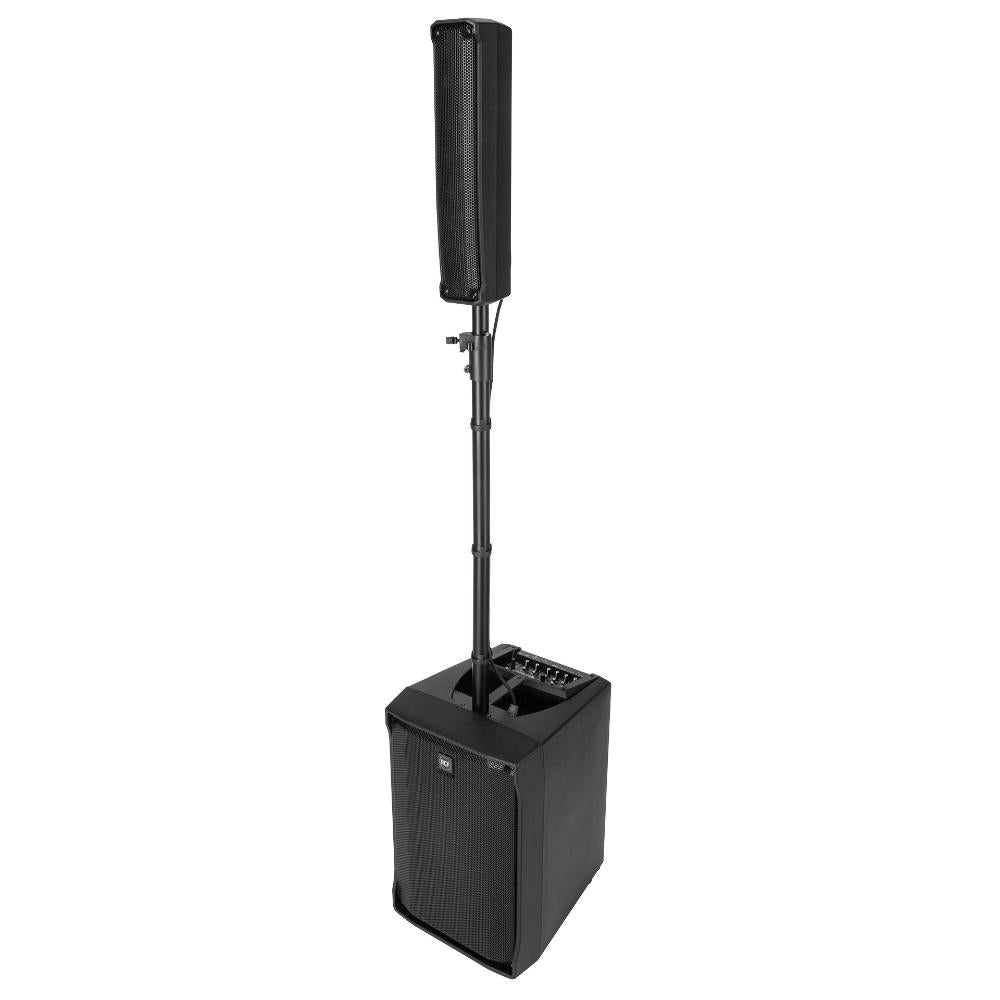

The black RCF EVOX JMIX8 is an active 12" 2-way 1400W portable line array PA system with an 8-input mixer designed to deliver powerful sound projection and flexible multi-source mixing for musicians, presenters, and audio engineers in clubs, parties, and live stage applications. Class-D amplification pumps 1400W peak (700W RMS) through a 12" high-excursion woofer and eight 2" full-range drivers, resulting in a frequency response of 40 Hz to 20 kHz. The system design produces a 120° horizontal by 30° vertical coverage pattern.
Four XLR-1/4" combo inputs, stereo 1/4" inputs, stereo RCA jacks, and a built-in Bluetooth receiver feed the digital mixer. The subwoofer and satellite components interconnect via speakON and balanced XLR jacks are present for stereo linking with another speaker. Integrated DSP processing with FiRPHASE technology grants adjustable compression, EQ, guitar amp and cabinet simulation, reverb, delay, and more. Access all mixer functions from the panel controls or via the RCF EVOX iOS or Android app.
The polypropylene composite cabinet minimizes weight and can be easily transported via the built-in carry handle. The adjustable pole mount offers simple height positioning of the satellite unit, which conveniently stores in the subwoofer enclosure. One speakON cable and a power cord are included with the EVOX JMIX8.
The RCF EVOX App ensures a comprehensive control of J Series mixers: all the processing you need, on your smartphone, via Bluetooth. Featuring attractive and intuitive graphics created by audio professionals, the app allows you to navigate between pages and fully control the mixer’s parameters even while playing. RCF EVOX J The EVOX App is available for iOS and Android operating systems.
HIGH FREQUENCIES - The ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance.
LOW FREQUENCIES - The high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.
PORTABILITY In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.
MOUNTING Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.
PLAY! Carrying and mounting your audio system has never been so quick.
From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task. Check out some standard configurations to understand the system set-up.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
SPECIFICATIONS
- Active or Passive Active
- USB 1 x USB Type-B
- Footswitch Input 1 x 1/4" (6.3 mm)
- Coverage Angle Horizontal: 120°
- Vertical: 30°
- Signal Processing 32-bit floating point
- A/D and D/A Conversion 24-bit/48 kHz
- Input Sensitivity -2 dBu / +4 dBu
- THD + N 0.004% (20 dB gain, 0 dBu out)
- Dynamic Range 108 dB
- Gain Range 0 to 45 dB
- Input Noise -114 dBu A-weighted
- Input Impedance Mic: 3 kOhms
- Line: 11 kOhms
- Hi-Z: 1 MOhm
- Output Impedance 150 Ohms
- Output Level 19 dBu
- Low-Cut Filter 20 Hz to 1 kHz
- Phantom Power +48 V
- Enclosure Material Polypropylene composite cabinet
- Steel grille
- CE Compliance Yes
- Power Supply Internal
- Dimensions (H x W x D) 24.5 x 15.7 x 18.1" / 62.3 x 40.0 x 46.0 cm
- Weight 53.8 lb / 24.4 kg
- Specialties Thermal and RMS protections
- Soft limiter
