Description
All-In-One Standalone Motorized DJ System
SYSTEM ONE redefines what’s possible for open format DJs, allowing for dynamic, laptop-free performances and an unmatched level of creative freedom—all in one system.
One System for Every Source, Every Stage, Every Set

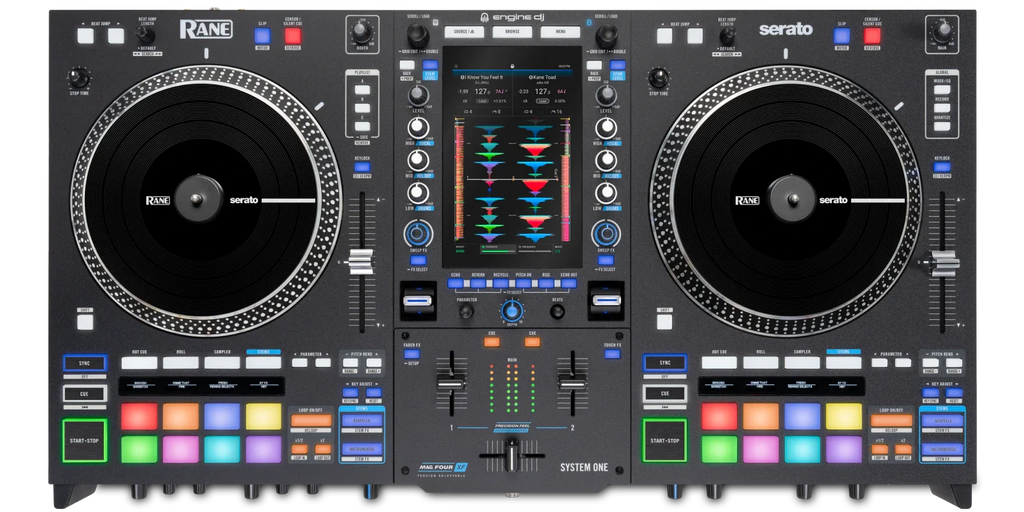

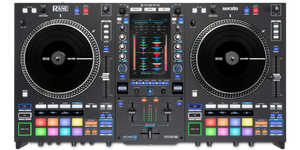

RANE SYSTEM ONE is the world’s first all-in-one standalone DJ system with motorized platters, fusing the legacy feel of turntables with the freedom of modern, laptop-free standalone DJ technology.
The first RANE product with Engine DJ on board, SYSTEM ONE allows open format DJs to experience the trusted performance of RANE hardware while seamlessly mixing between standalone media, music streaming services, and software sources like Serato DJ and Algoriddim djay (support coming in early 2026.) With loads of FX options and multiple ways to DJ with Stems, this all-in-one system gives you the power to unlock new levels of creativity and elevate every performance.
The Freedom and Feel DJs Demand

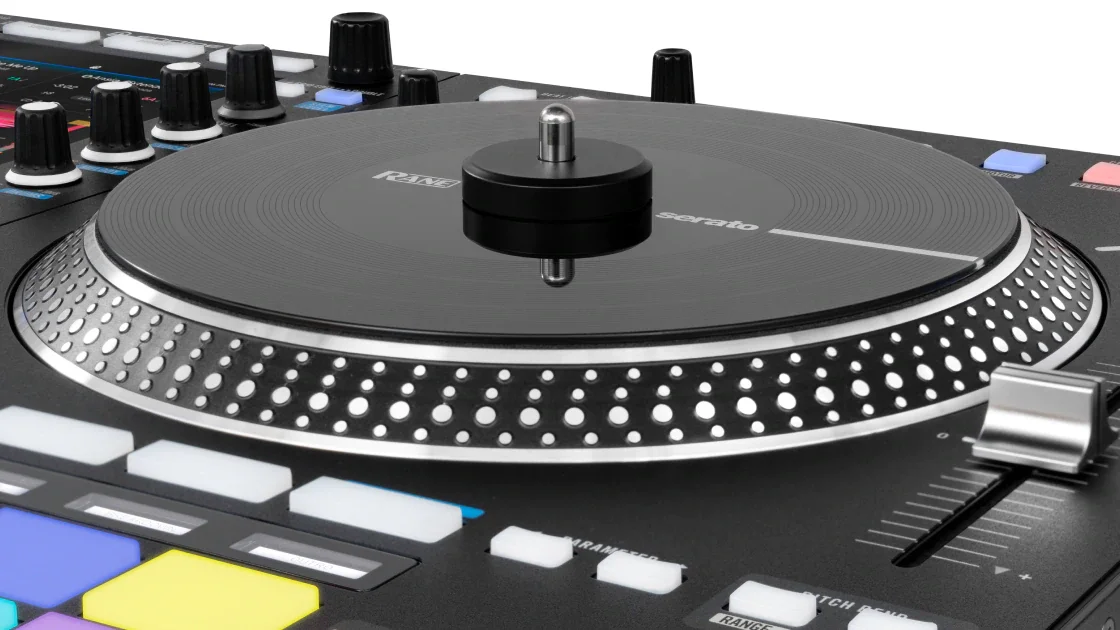

SYSTEM ONE is designed to streamline your entire workflow. The embedded Engine DJ operating system allows you to deliver dynamic performances without a laptop. This technology, combined with the 7.2” aluminum motorized platters, empowers open format DJs with an unmatched level of freedom while maintaining the legacy feel of turntables.
OmniSource system architecture enables seamless mixing between tracks saved on USB sticks, SD cards, or the internal hard drive (sold separately), streaming music services, and software sources like Serato DJ and Algoriddim djay (support coming in early 2026), enabling a fluid and flexible performance workflow.
Execute blends and remixes on the fly with standalone Stems, Stem FX, Instant Acapella and Instrumental buttons, Stems pad mode, and Stem Level EQ control. Render tracks for Stems ahead of time with Engine DJ desktop or directly on the SYSTEM ONE (on-board Stems rendering coming early 2026).
Seamless FX Integration

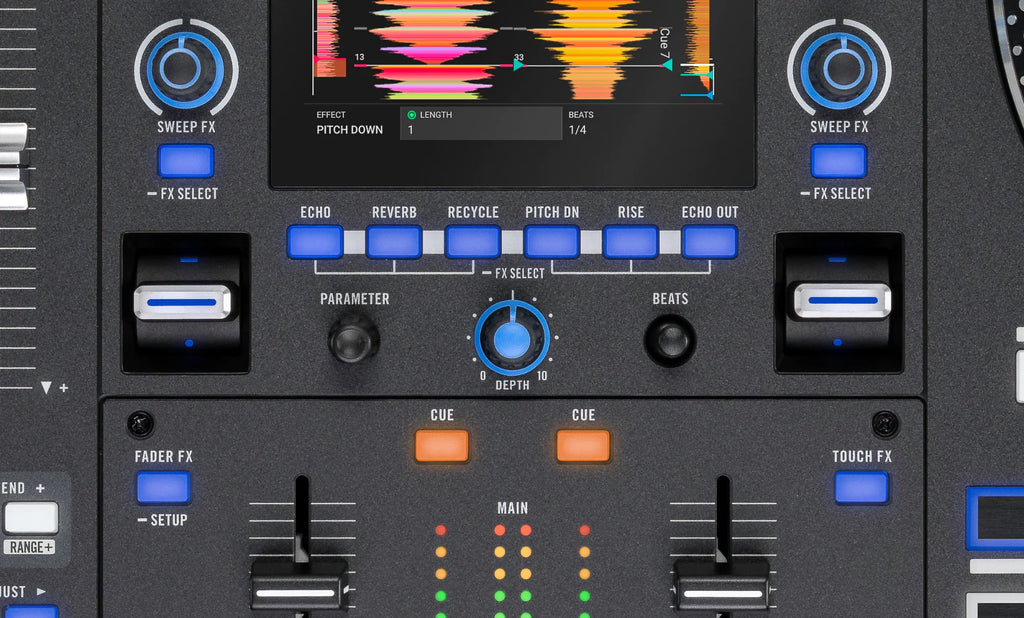

SYSTEM ONE features over 25 onboard Main FX across six assignable slots with aluminum toggle activation, plus 5 knob-controlled Sweep FX, 10 on-screen Touch FX, and 4 fader-activated Fader FX, giving you a robust arsenal of creative tools to execute incredible routines and sets. Along with internal effects, you also have the option to tap into Serato's software FX collection for even more flexibility.
SYSTEM ONE is the first RANE standalone DJ system, designed to make the transition to standalone seamless. Engine DJ desktop software enables the full import of Serato DJ libraries, including crates, hot cues, loops, BPM, key, and other metadata, allowing you to transfer your existing collection to a USB drive, SD card, or the internal hard drive (sold separately) and perform on SYSTEM ONE without a laptop.
High-Def Touchscreen with Instant Visual Feedback

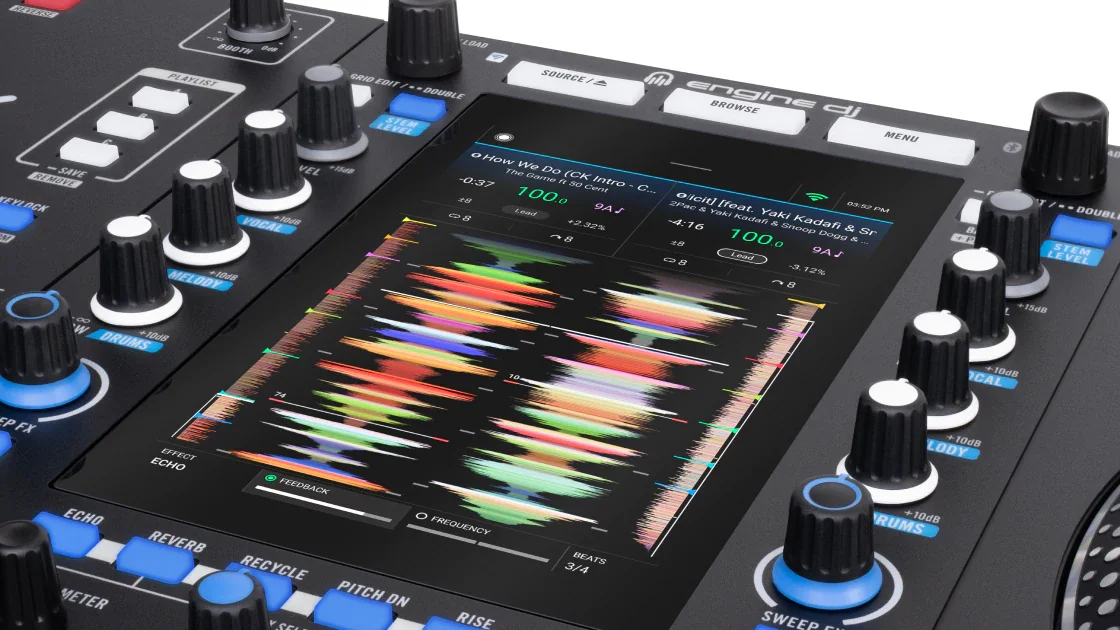

Browse tracks, monitor deck status, visually cue and mix with moving RGB waveforms, and control FX and lighting, all from a single, streamlined interface. With customizable view options, waveforms can be displayed vertically or horizontally, with or without the track list, and with the option to enable Day Mode, allowing you to customize the layout to match your ideal DJ workflow.
Immediate Access to Every Track
With Playlist Banks, you can save and instantly access your favorite Engine DJ or streaming services playlists or Serato DJ crates. Three dedicated buttons provide fast recall, keeping go-to tracks, crates, and playlists just a tap away.
Performance Pads with OLED Displays
The 8 Performance Pads on each deck feature dynamic RGB lighting that reflects the active pad mode with custom colors for Hot Cues and Loops. OLED displays above the pads provide clear visual feedback for all pad modes, allowing you to instantly see Hot Cue and Sample names as well as different Stem elements and Roll beat divisions.
Integrated SoundSwitch Lighting Control
Wirelessly connect to Philips Hue and Nanoleaf smart lighting for dynamic automated light shows at home, perfect for livestreams and content creation. The addition of a SoundSwitch Micro DMX interface or Control One allows the SYSTEM ONE to control DMX lighting fixtures with access to beat-synced Auto Loops and on-screen override controls.
Pro-Level Sound and Connections

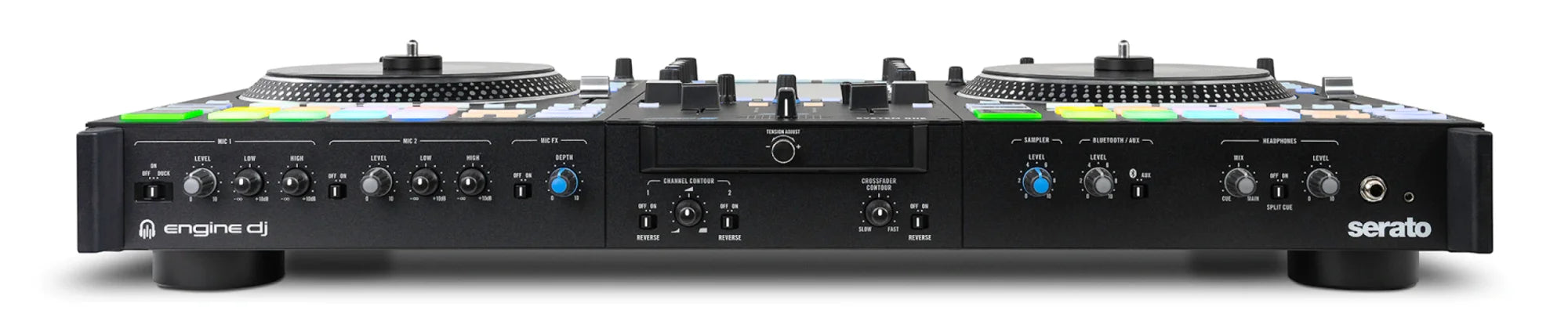

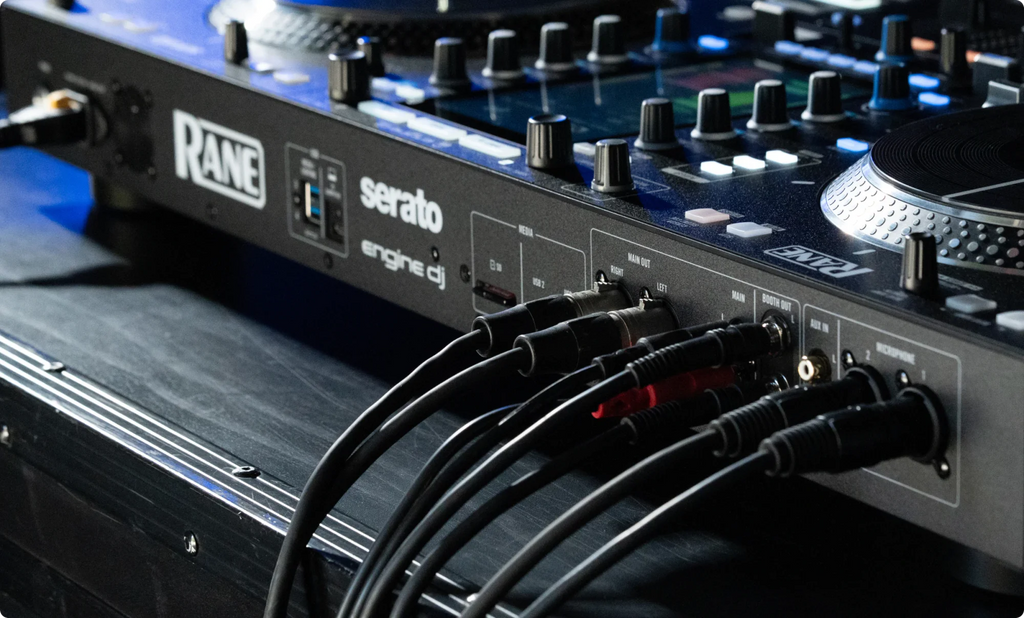

SYSTEM ONE features signature RANE high-fidelity audio with plenty of input and output options, ensuring that you always sound your best in every setting. Audio output options include XLR Main, RCA Main, ¼” Booth, and Bluetooth while input options include a selectable Bluetooth/RCA Auxiliary input with front volume knob, and two XLR combo jack microphone inputs with EQ, Echo and Reverb FX, Talkover, and Anti-Feedback. An on-screen 10 band EQ lets you further craft your own sound for both the Main and Booth outputs.
Feature Overview
Discover the features and functionality of SYSTEM ONE as we break it all down in this in-depth walkthrough.
Quickstart Guide
This official Quickstart Guide walks you through everything you need to know to get up and running with RANE SYSTEM ONE, the all-in-one standalone motorized DJ system.
Technical Specifications
Digital Audio
Converters
Cirrus Logic, 24-bit PCM, 44.1 kHz
Digital Signal Processing
32-bit, Floating Point, Double Precision
Audio Outputs
Main Output
(XLR, RCA stereo pair)
DAC:
24-bit
Dynamic Range:
117 dB
Output Type:
Balanced XLR
Max Output Level (XLR):
8 Vrms
Max Output Level (RCA):
4 Vrms
Frequency Response:
20 Hz–20 kHz: +0, -1 dB
THD+N:
0.002% @ 1 kHz, 4 Vrms
Channel Separation:
> 80 dB
Input Gain Trim Range:
Off to +12 dB
Output Level Range:
Off to 0 dB
Booth Output
(1/4” [6.35 mm] TRS)
DAC:
24-bit
Dynamic Range:
117 dB
Output Type:
Balanced TRS
Max Output Level:
8 Vrms
Frequency Response:
20 Hz – 20 kHz: +0, -1 dB
THD+N:
0.002% @ 1 kHz, 4 Vrms
Channel Separation:
> 80 dB
Input Gain Trim Range:
Off to +12 dB
Output Level Range:
Off to 0 dB
Headphone Output
(1/4” [6.35 mm] and 1/8” [3.5 mm] TRS)
DAC:
24-bit
Dynamic Range:
117 dB
Output Type:
Stereo TRS (1/8” and 1/4” jacks)
Cue Features:
Cue / Split Cue
Max Output Level (No Load):
4 Vrms
Max Power Output @ 50 Ω:
150 mW
Frequency Response:
20 Hz – 20 kHz: +0, -1 dB
THD+N @ 1 kHz, 4 Vrms (No Load):
0.002%
THD+N @ 1 kHz, Full Power @ 50 Ω:
0.08%
Channel Separation:
> 80 dB
Level Control Range:
Off to 0 dB
Inputs (Combo XLR/1/4” [6.35 mm] TRS)
ADC:
24-bit, 115 dB DR
Input Type:
Balanced XLR/TRS combo
Max Input Level:
110 mV
Analog Gain:
25 dB
Max System Gain:
60 dB
Frequency Response @ 20 Hz:
-2.5 dB
Frequency Response @ 20 kHz:
-5 dB
THD+N @ 0.1 Vin, Gain = 25 dB:
0.015% (100 Hz–20 kHz)
DR (A-weighted), Gain = 25 dB:
102 dB
DR (A-weighted), Gain = 60 dB:
72 dB
IRN (A-weighted), Gain = 60 dB:
-132 dB
IRN (20 Hz–20 kHz), Gain = 60 dB:
-130 dB
Auxiliary Input
(RCA stereo pair)
ADC:
24-bit, 115 dB DR (A-weighted)
Input Type:
Unbalanced RCA
Max Input Level:
4 Vrms
Frequency Response:
20 Hz –20 kHz: +0, -1 dB
THD+N @ 3 Vrms, Unity Gain:
0.005% (20 Hz–20 kHz)
Gain Range:
Off to +12 dB
DR (A-weighted), Unity Gain:
108 dB
Crosstalk:
≤ -90 dB
Performance Pads
Pads:
16 total, on/off multi-color back-lit (8 per deck)
Faders
Channel Faders:
2 PRECISION FEEL tension-adjustable with contour and reverse
Crossfader:
1 MAG FOUR tension-adjustable with contour and reverse
Displays
Main Display:
7"/178 mm (diagonal) full-color LED-backlit display with touch interface
Pad Displays:
(8) 128 x 32 monochrome OLEDs
CPU
Processor:
Quad-core ARM®
RAM:
4 GB
Wi-Fi & Bluetooth
Wi-Fi:
- 2.4GHz/5GHz
- 802.11a/b/g/n/ac
- Wi-Fi 5
Bluetooth:
v5.4
Supported Media
File Systems
- exFAT (recommended)
- FAT32
Playable Formats
- AAC/M4A
- AIF/AIFF (44.1–192 kHz, 16–32-bit)
- ALAC
- FLAC
- MP3 (32–320 kbps)
- MP4
- Ogg Vorbis
- WAV (44.1–192 kHz, 16–32-bit)
Streaming Services
- Onboard Streaming Services (subscription required)
- Amazon Music Unlimited
- Apple Music
- Beatport
- Beatsource
- SoundCloud Go+
- TIDAL
Lighting
Onboard Smart Lighting
- Philips Hue
- Nanoleaf
Supported DMX
- SoundSwitch DMX Micro
- SoundSwitch Control One
Power
(Internal with locking IEC)
Input Type:
Locking IEC
Input Voltage:
100–240 VAC
Frequency:
50/60 Hz
Power Consumption:
150 W
General
Dimensions (W x D x H):
Inches: 29.00 x 15.87 x 5.70
Centimeters: 73.66 x 40.30 x 14.47
Weight:
29.4 lbs (13.33 kg)
Connections
Inputs
Microphones:
- Mic 1: XLR + 1/4” Combo Jack
- Mic 2: XLR + 1/4” Combo Jack
Aux:
Stereo Pair (RCA)
Outputs
Main:
(2) XLR, Stereo Pair (RCA)
Booth:
(2) 1/4” TRS Jacks
Headphones:
- 1/4” Stereo Jack
- 3.5-mm Stereo Mini-Jack
Media Inputs
USB:
- USB 1: Type-A, USB 2.0 High Speed
- USB 2: Type-C, USB 3.0 SuperSpeed
- USB 3: Type-A, USB 3.0 SuperSpeed
- USB 4: Type-A, USB 3.0 SuperSpeed
- USB to Computer: Type-C, USB 3.0 SuperSpeed
SD Media:
SD, SDHC, SDXC
Internal HD:
SATA 3.0
Power
Input:
Locking IEC
