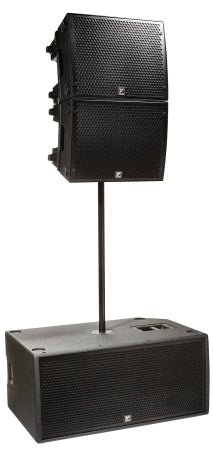

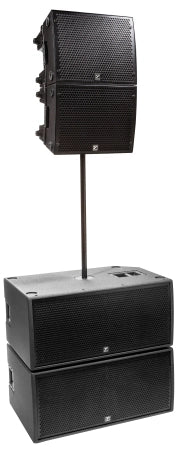

Designed for medium-sized events, Paraline subwoofers are designed to complement PSA1 powered loudspeakers in a scalable array system. They feature bass reflex cabinets and Class D power amplifiers for efficiency and long-term reliability, and can accept both line and speaker-level signals to integrate easily into any system.

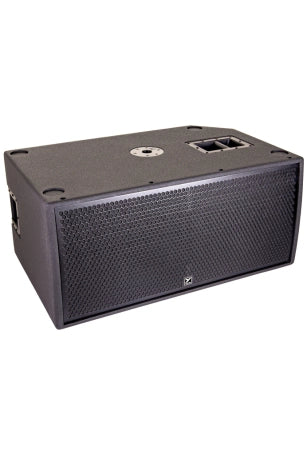

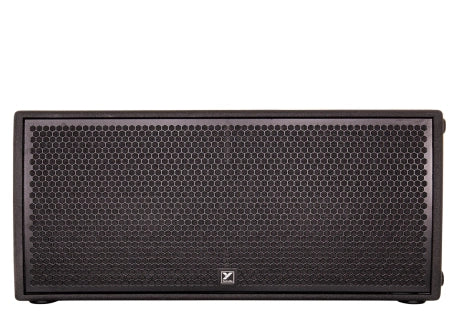

The PSA2S offers two 15-inch woofers, 4800 watts of peak power (2400 watts program), and a frequency response down to 30 Hz.
The PSA2S also features Yorkville Sound’s Heavy Duty Precision Stand Adapter. With extremely thick cast aluminum walls and an extra-wide mounting plate, this precision-machined adapter provides an exceptionally stable and secure mounting system when used in combination with the SW-TUBEHD subwoofer tube.
The PSA2SF variation is also available for applications that require a flown subwoofer.
Features
- 4800 W Peak Power (2400 W Program)
- 2x 15” Woofer with 3” Voice Coil
- Bass Reflex Cabinet Design
- Solid 15mm Birch Construction
- Heavy Duty Precision Stand Adapter
- Heavy Duty Wheels
- Also Available as PSA2SF Flyable Version
- Made in Canada
Specifications
| System Type |
Powered Subwoofer |
| Power Rating |
4800 W Peak (2400 W Program) |
| Max SPL |
134 dB Peak (131 dB Continuous) |
| Frequency Response (Hz +/- 3dB) |
30 Hz - 100 Hz |
| Crossover Frequency |
100 Hz |
| LF Driver(s) |
2x 15” Woofer with 3” Voice Coil |
| LF Power Amplifier (Watts) |
Class D |
| Power Consumption (typ/max) |
660 VA / 900 VA |

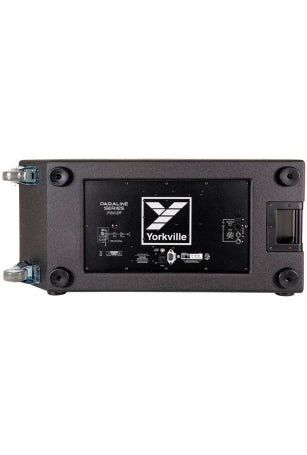

| Inputs |
1x XLR Input
1x 1/4" Input |
| Controls |
Line / Speaker Mode |
| Master Volume Control |
Level |
| Link In/Out (type / configuration) |
1x XLR
1x 1/4" |
| LED Indicators |
Clip, Limit, Power |
| Wheels |
2 (Rear Tilt-back) |
| Bar Handles |
4 (1x Each Side, Bottom, Top) |
| Flyable Version |
PSA2SF (4x EYEBOLT3/8A Required) |
| Pole Mount Adapter (1 3/8 |
1 (Side) |
| Enclosure Materials |
15mm Birch |
| Baffle Material |
15mm Birch |
| Covering / Finish |
Paint |
| Dimensions (DWH) |
23.8” x 18” x 38” (60.3 cm x 45.7 cm x 96.5 cm) |
| Weight |
156 lbs / 70.8 kg |
Specifications subject to change without notice
