Designed for medium-sized events, Paraline subwoofers are designed to complement PSA1 powered loudspeakers in a scalable array system. They feature bass reflex cabinets and Class D power amplifiers for efficiency and long-term reliability, and can accept both line and speaker-level signals to integrate easily into any system.
The PSA1S offers two 12-inch woofers, 2800 watts of peak power (1400 watts program), and a frequency response down to 37 Hz.
The PSA1S is also one of the first products to use Yorkville Sound’s Heavy Duty Precision Stand Adapter. With extremely thick cast aluminum walls and an extra-wide mounting plate, this precision-machined adapter provides an exceptionally stable and secure mounting system when used in combination with the SW-TUBEHD subwoofer tube.
The PSA1SF variation is also available for applications that require a flown subwoofer.
Features
2800 W Peak Power (1400 W Program)
2x 12” Woofer with 3” Voice Coil
Bass Reflex Cabinet Design
Solid 15mm Birch Construction
Heavy Duty Precision Stand Adapter

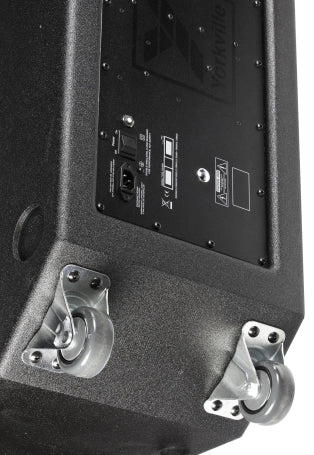

Heavy Duty Wheels
Also Available as PSA1SF Flyable Version
Made in Canada
Specifications
System Type
Powered Subwoofer
Power Rating
2800 W Peak (1400 W Program)
Max SPL
135 dB Peak (129 dB Continuous)
Frequency Response (Hz +/- 3dB)
100 Hz
Crossover Frequency
fixed @ 100Hz
Cabinet Configuration
Bass Reflex Cabinet
LF Driver(s)
2x 12" Ceramic with 3" Voice Coil
LF Impedance (Ohms)
2x4 Ohm Load
LF Power Amplifier (Watts)
Class D
Power Consumption (typ/max)
210 VA / 440 VA
Inputs
1x XLR Input 1x 1/4" Input
Controls
Line / Speaker Mode
Master Volume Control
Level
Link In/Out (type / configuration)
1x XLR 1x 1/4"
LED Indicators
Clip, Limit, Power
Wheels
2 (Rear Tilt-back)
Bar Handles
2 (1x Each Side)
Flyable Version
PSA1SF (4x EYEBOLT3/8A Required)
Pole Mount Adapter (1 3/8
1 (Side)
Enclosure Materials
15mm Birch
Covering / Finish
Paint
Dimensions (DWH)
22.8” x 14” x 32” (57.8 cm x 35.6 cm x 81.3 cm)
Weight
120 lbs / 54.6 kg
Specifications subject to change without notice
