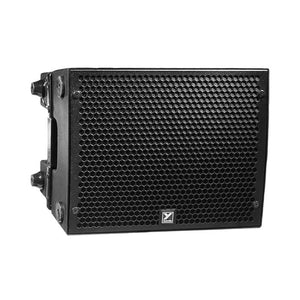

Two BMS 1.75-inch compression drivers mounted to the patented Paraline lens delivers a focused 15-degree vertical dispersion and wide 110 degree horizontal coverage. Celestion 6-inch woofers provide a tight and ultra responsive low frequency program.

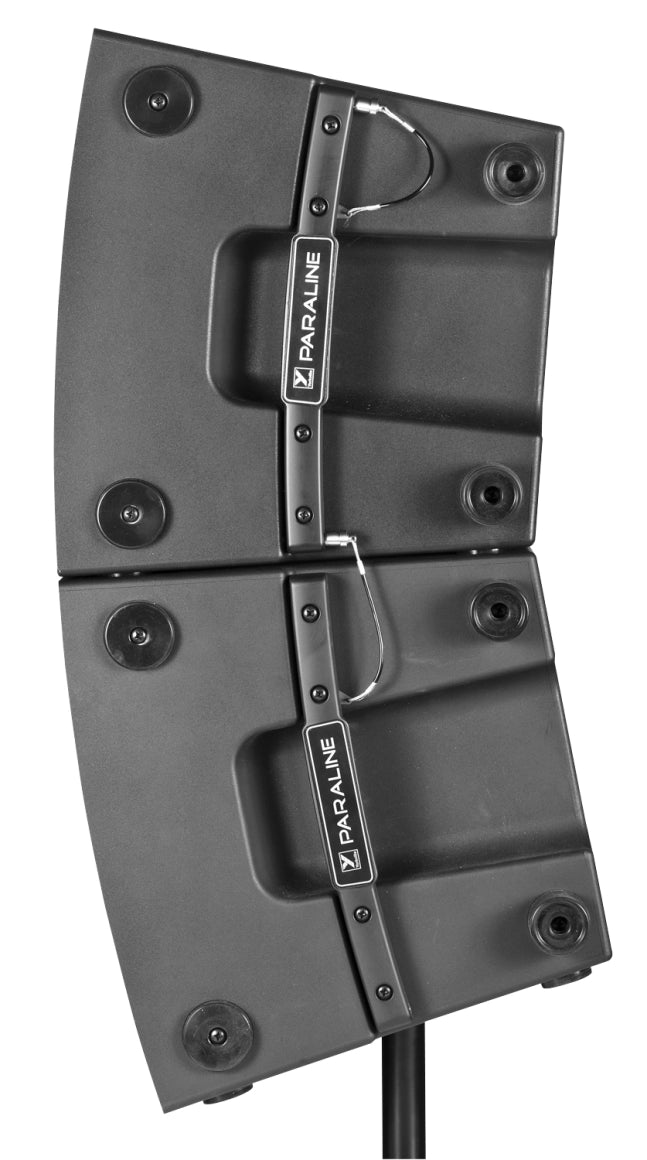

Ideal for mobile PA applications in venues where access to complex trussing or roof hangs isn't practical, the Yorkville PSA1 cabinet mounts quickly and securely on a typical speaker stand. Innovative dual position stand mount offers two potential cabinet angles for expanded setup options. Up to two PSA1 cabinets can be stacked safely and securely on a single traditional stand.
Optional PSA1 Installation Hardware
Yorkville Paraline Series PSA1 cabinets can be flown in any installation quickly, securely and very cost effectively with the addition of optional flying hardware (PSA1RIGKIT) and a proprietary bumper (PSA1FRAME). The PSA1RIGKIT installs directly to the PSA1 without modification to the cabinet using mounting points integrated in the all-metal aluminum cabinet handles. A maximum of four PSA1 cabinets can be arrayed safely using PSA1RIGKIT assemblies. The entire array can then be safely flown using a single PSA1FRAME bumper.
The PSA1FRAME bumper has several flying points to angle the array in simple two-point hangs. The efficient design allows the PSA1 cabinets to be rigged with the frame kit in the field with a minimum of time and effort. The hardware maintains fixed cabinet to cabinet splay angles for seamless vertical coverage.
The Modular PSA1 system can be configured for optimum coverage in most installations quickly and effectively without complicated hardware, or additional external signal processing making it the most cost effective installation solution delivering the performance of a compact vertical array.

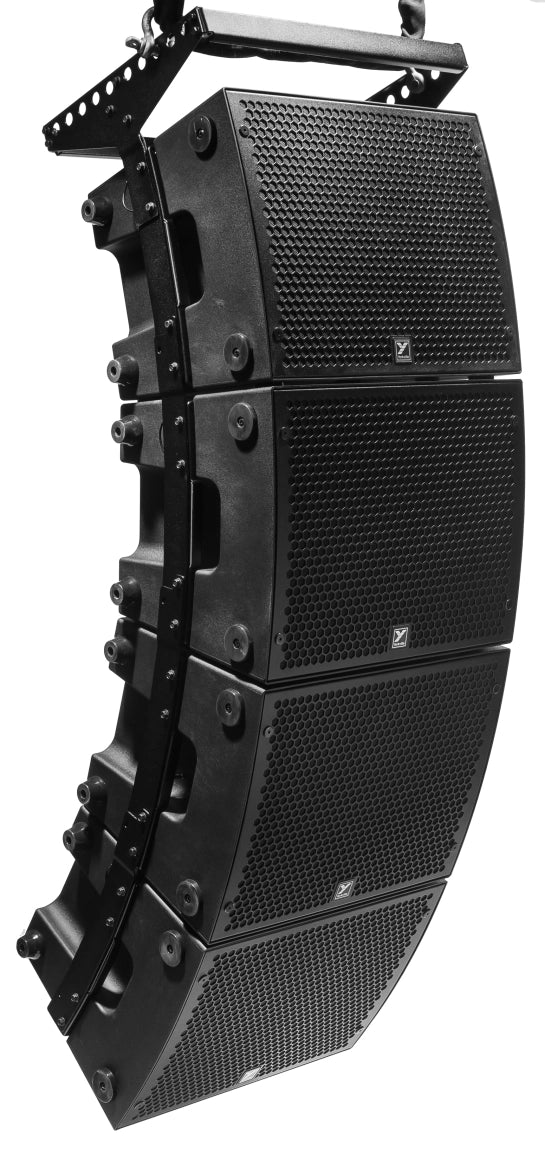

A system comprised of two PSA1 cabinets delivers 30°V x 110°H coverage using two PSA1RIGKITs and one PSA1FRAME. A three cabinet 45°V x 110°H array can be created with the addition of one PSA1 and one additional PSA1RIGKIT. A maximum of four cabinets can be configured for specialized installs where a 60°V x 110°H array may be required.
High quality Speaker Components (including Celestion 6-inch Woofers and BMS Compression Drivers)
Focused 15° Vertical Dispersion for Minimum Interference Between Arrayed Cabinets
Wide 110° Horizontal Dispersion Pattern
Manufactured Using Light-weight/Strong ABS Cabinet Material

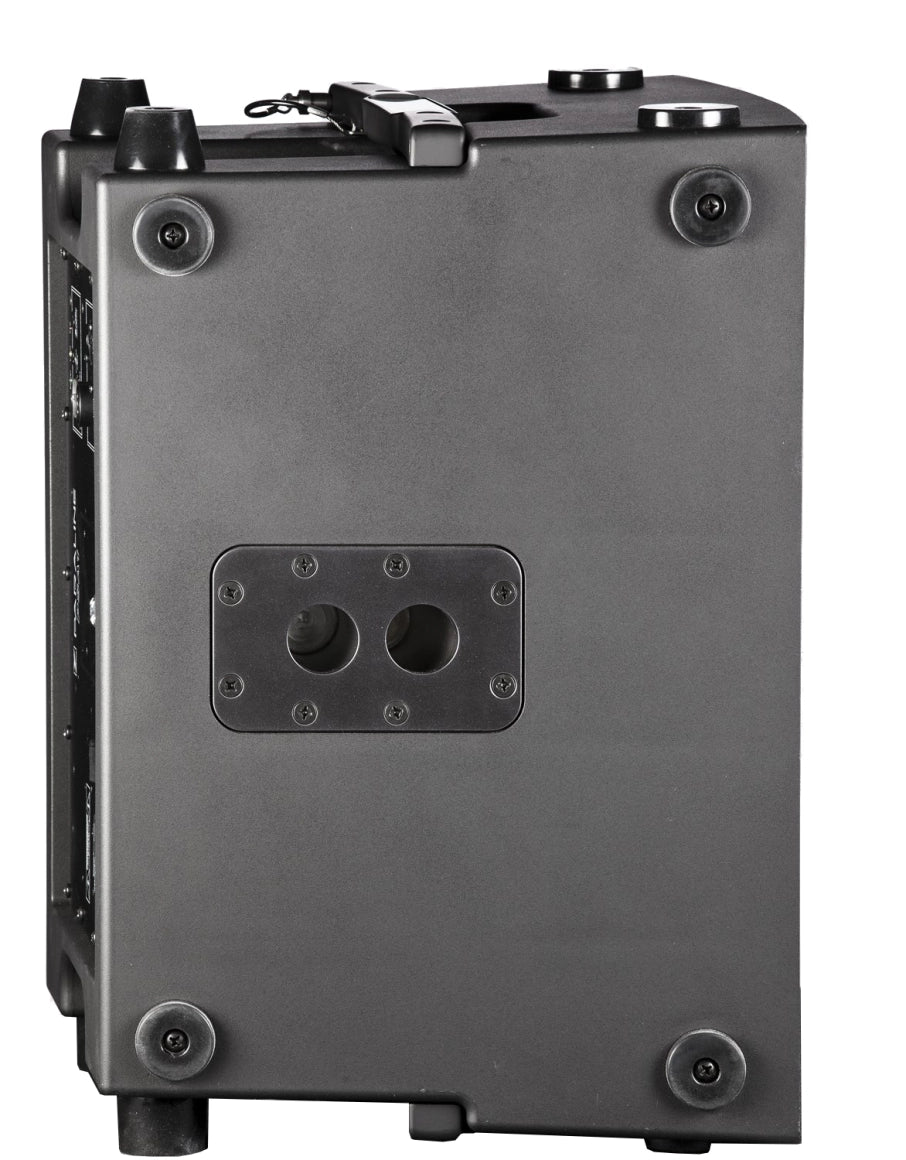

Stacks using Standard Speaker Stand on Integrated Dual Angle Stand Mount Adaptor (Maximum Two Cabinets per stand)
Installation Hardware Available
Up to Four PSA1 Cabinets Can Be Easily Powered on one 15 Amp Circuit
Optional PSA1COVER available
Made in Canada
Specifications
System Type
Powered Loudspeaker
Power Rating
1200 W Peak (700 W Program)
Biampable
Biamp
Max SPL
128 dB Peak (125 dB Continuous)
Frequency Response (Hz +/- 3dB)
75 Hz - 20 kHz
Dispersion (H x V)
110° x 15°
Crossover Frequency
1.2 kHz
Cabinet Configuration
4x 6”, 2x 1”
HF Driver(s)
2x 1" Ceramic w/ 1.75" Voice Coil
HF Program Power (Watts)
200 W Peak (75 W Program)
HF Dispersion (°H x °V)
110° x 15°
HF Protection
Peak and Average Limiting
LF Driver(s)

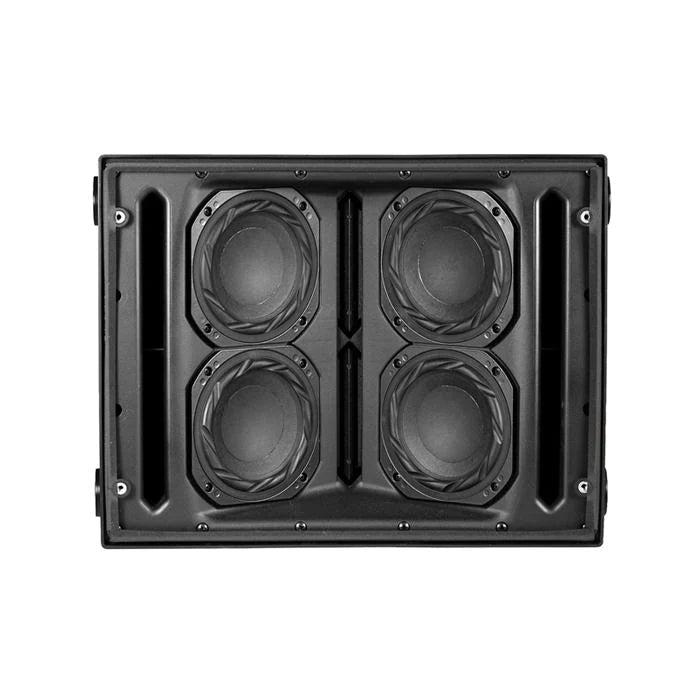

4x 6” Neodymium with 1.75” Voice Coil
LF Program Power(Watts)
1000 W Peak (675 W Program)
LF Protection
Excursion, RMS
HF Power Amplifier (Watts)
75 W
HF Amplifier Type
2-Tier Class H
LF Power Amplifier (Watts)
625 W
LF Amplifier Type
Class D
Cooling Scheme
Convection

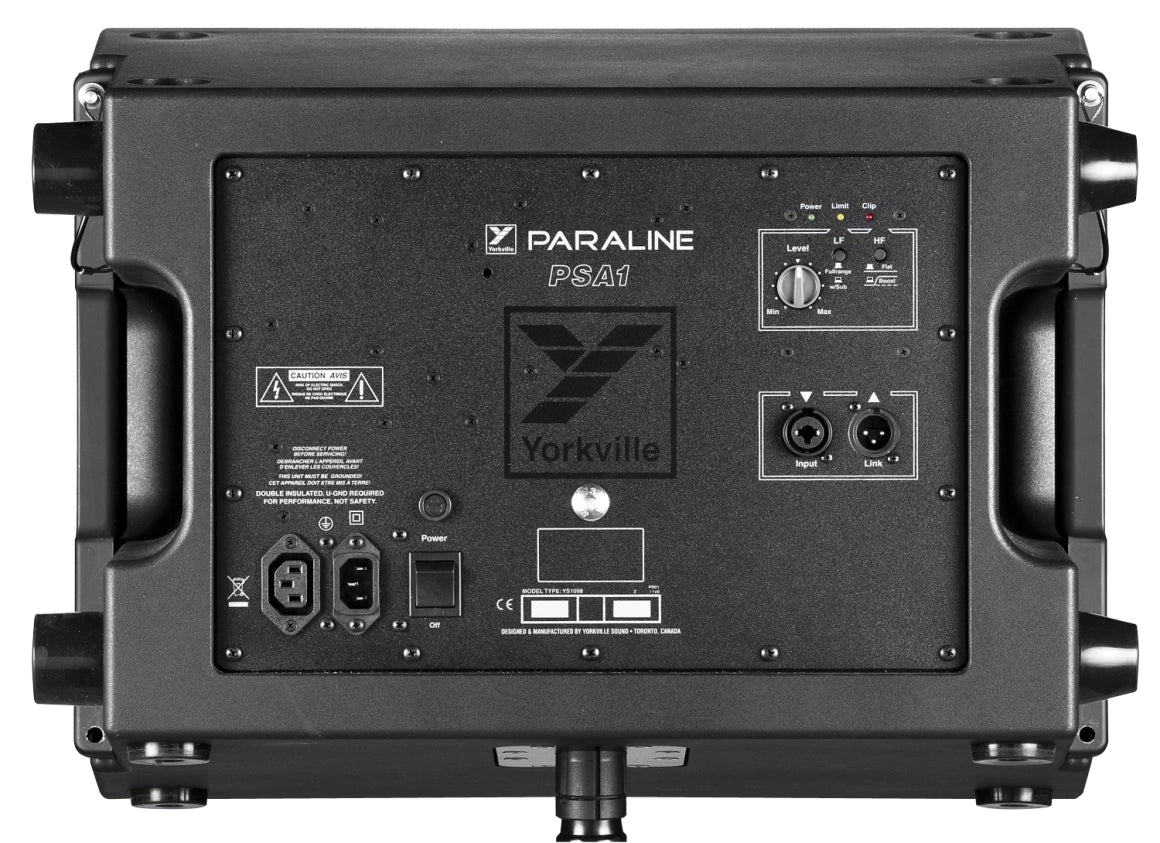

Power Cable
Removable Locking IEC Input and Loop Thru Output
Power Consumption (typ/max)
135 VA / 225 VA
Inputs
1x Combi-Jack (XLR / 1/4")
Input Sensitivity (Vrms Sine)
Line in 1.4 at Center, 0.35 at Max
Level Controls
Volume
EQ Controls
HF Boost switch, Fullrange / Sub switch
Limiter
Peak and Average limiting on Horn and Woofer
LED Indicators
Power, Limit, Clip
Optional Flying Hardware
PSA1RIGKIT (1 per Cabinet) PSA1FRAME1 (1 per Array, Maximum 4x PSA1)
Pole Mount Adapter (1 3/8
Dual Angle (1x Bottom)
Enclosure Materials
Injection Molded ABS
Baffle Material
Injection Molded ABS
Covering / Finish
Paint
Optional Covering / Finishes
White (PSA1W)
Dimensions (DWH)
14.5” x 20.5” x 16” (36.8 cm x 52.1 cm x 40.6 cm)
Weight
52 lbs / 23.6 kg
