2400W PARASOURCE SUB W/ FLY POINTS.
The 1200-watt active PS18S subwoofer delivers maximum low frequency support in as compact a design as possible for a fully featured 18-inch subwoofer. Designed to be the ideal companion to the Parasource PS15P full range loudspeaker, the PS18S actually can be easily integrated in to virtually any venue or PA application. Capable of connecting to any audio source (including speaker level input) the PS18S can easily be added to virtually any mobile live sound or installation PA system quickly for added low end support.
Features
- Ultra High Performance Compact Active Subwoofer
- High Quality Single 18-inch Woofer
- Max SPL 135dB Peak (129dB Continuous)
- Handles Line or Speaker Level (Powered) Input Sources
- XLR and ¼-inch Inputs and Link Outputs
- Ideal Companion Subwoofer for Parasource PS15P
- Solid 15mm Birch Cabinet Construction
- Integrated Pole Mount Adaptor and All Metal Handles
- Made in Canada
Specifications
| Active or Passive |
Active |
| Power Rating (Watts) |
1200 Watts Program (2400 Watts Peak) |
| Max SPL (dB) |
135dB Peak (129dB Continuous) |
| Frequency Response (Hz +/- 3dB) |
45Hz-100Hz |
| Crossover Frequency (Hz) |
fixed @ 100Hz |
| Driver Configuration |
1x18-inch |
| LF Driver(s) |
1x18-inch Ceramic w/ 4-inch VoiceCoil |
| Power Consumption |
3.8 Amps |

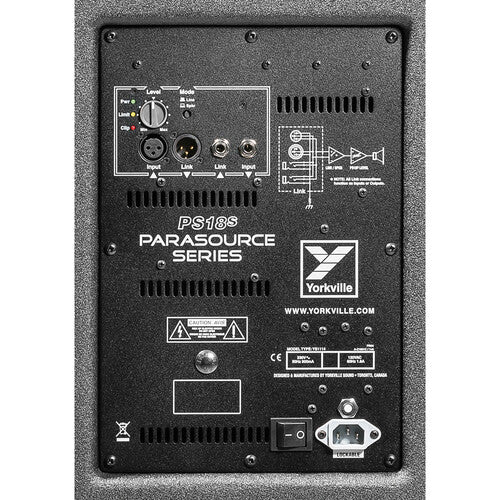

| Inputs |
XLR Balanced Line Level Input
¼-inch Line or Speaker Level Input |
| Outputs |
XLR Balanced Link Output
¼-inch Link Output |
| Controls |
Output Level, Line/Speaker Level Switch
Power/Limit/Clip LED's |
| Enclosure Materials |
15mm Birch |
| Baffle Material |
15mm Birch |
| Covering / Finish |
Paint |
| Dimensions (DWH xbackW, inches) |
22.25 x 21.25 x 32.25 |
| Dimensions (DWH xbackW, cm) |
56.5 x 54.0 x 81.9 |
| Weight (lbs/kg) |
111/50.5
|
