1800W PEAK 1X12" POWERED SUBWOOFER.

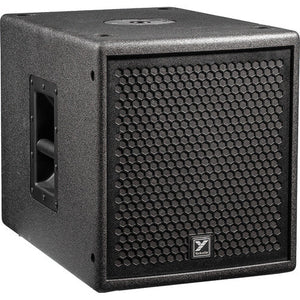

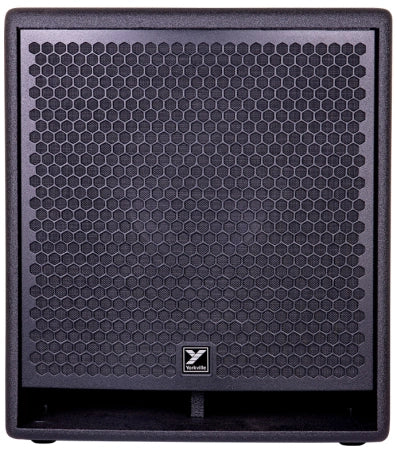

The PS12S Parasource Powered Subwoofer from Yorkville Sound is a compact single 12" active bass reflex subwoofer. The solid 15mm birch plywood cabinet construction and an efficient 900W Class-D power amplifier design subwoofer can be easily integrated into small or medium format PA application because of its cable direct connection to any audio source. The unit is equipped with metal handles and a pole mount adapter.
Compact high performance active subwoofer
Single 12" long throw woofer with a 3" voice coil
Maximum SPL 129dB peak (123dB continuous)
Handles line or speaker level (powered) input sources
XLR and 1/4" inputs and link outputs
Integrated pole mount adapter and all metal handles
Solid 15mm birch cabinet construction
Compact bass reflex design
Made in Canada
Yorkville Sound PS12S Specs
| Active or Passive |
Active |
| Power |
900 W program (1800 W peak) |
| Frequency Response |
45 Hz - 100 Hz |
| Crossover Frequency |
Fixed @ 100 Hz |
| Driver |
12" (30 cm) (Bass reflex cabinet) |
| Low Frequency Driver |
12" (30 cm) Long throw ceramic with 3" (7.6 cm) VoiceCoil |

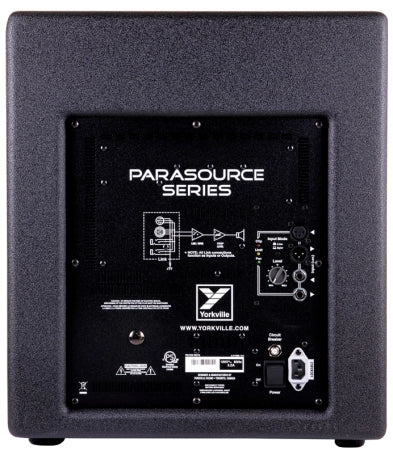

| Connectors |
XLR balanced line level input
1/4" line or speaker level input
XLR balanced link output
1/4" link output |

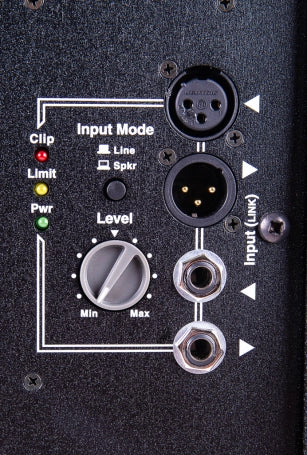

| Controls |
Output Level
Line/Speaker Level Switch |
| LED Indicators |
Power
Limit
Clip |
| Enclosure Material |
0.6" (1.5 cm) Birch |
| Baffle Material |
0.6" (1.5 cm) Birch |
| Dimensions |
23.0 x 14.0 x 22.5" (58.4 x 35.6 x 55.93 cm) |
| Weight |
65.0 lb (29.6 kg) |
