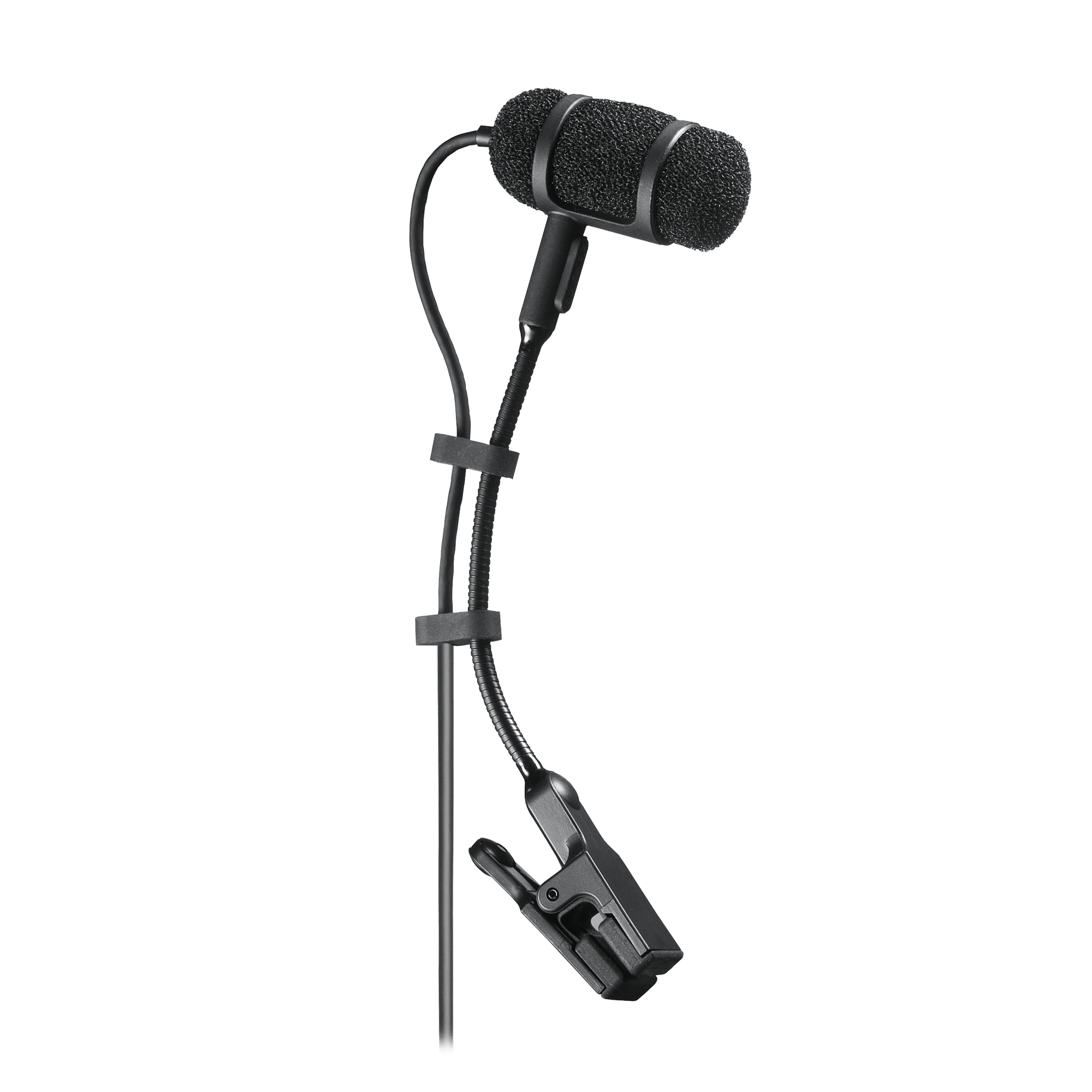

Cardioid condenser clip-on instrument microphone with 55" cable terminated with locking 4-pin HRS-type connector for Audio-Technica wireless systems using UniPak transmitters
Designed for sax, toms, brass, and percussion, the PRO 35 excels in high-SPL applications and is ideal for active stage performances. Its extended frequency response captures subtle nuances of the performance. The included AT8418 UniMount® clip permits accurate positioning and provides shock resistance while protecting the element. The microphone’s cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source.
Available configurations:
PRO 35:6' (1.8 m) permanently attached miniature cable terminated with a TA3F connector for use with the included AT8538 phantom power only in-line power module (80 Hz high-pass filter).
PRO 35cH:55" (1.4 m) permanently attached miniature cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters.
PRO 35cW:55" (1.4 m) permanently attached miniature cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters.
UniMount® clip permits accurate positioning, provides shock resistance and protects element
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Extended frequency response captures subtle nuances of the performance
6' (1.8 m) cable permanently attached to microphone
Microphones
Element
Fixed-charge back plate, permanently polarized condenser
Polar Pattern
Cardioid
Frequency Response
50-15,000 Hz
Low Frequency Roll Off
80 Hz, 18 dB/octave (wired only)
Open Circuit Sensitivity
-45 dB (5.6 mV) re 1V at 1 Pa
Maximum Input Sound Level
145 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range
115 dB, 1 kHz at Max SPL (wired only)
Signal-to-Noise Ratio
64 dB, 1 kHz at 1 Pa
Phantom Power Requirements
11-52V DC, 2 mA typical (wired only)
Switches
Flat, roll-off (wired only)
Weight (microphone)
0.3 oz (8 g)
Weight (power module)
2.9 oz (81 g) (wired only)
Cable
6.0' (1.8 m) long (permanently attached to microphone), 0.10" (2.6 mm) diameter, 2-conductor, shielded cable
