Description
The best digital mixer for your rack.
Inside the StudioLive 24R, you’ll find the dual-core PreSonus® FLEX DSP Engine powering 40 mixing channels, 22 mix buses, and 270 simultaneous processors, including 4 stereo reverberation systems and Fat Channel plug-in models on every input channel and mix bus. Add an nsb 8.8 stagebox, and you’ve got an analog input and output for every channel and bus. This is a true 32-channel digital mixer that can comfortably fit in any size rig. Simply connect it to a standard wireless router and control every mix parameter from your iPad®, Android™ tablet, or Windows® Touch computer using UC Surface. UC Surface was designed to make mixing on a touch screen as intuitive as mixing on faders but with the benefit of allowing you to mix front-of-house from anywhere in the venue.
An integrated monitor mixer.
Professional venues and touring acts know that having a dedicated monitor mixer is the best way to ensure musicians can hear themselves clearly on stage. When connected to a StudioLive Series III console mixer, the StudioLive 24R provides remote inputs and main outputs while simultaneously retaining full control over its FlexMixes, so you can create up to 16 monitor mixes complete with independent gate, compression, EQ, and effects on every channel and bus.
The perfect personal monitoring system.

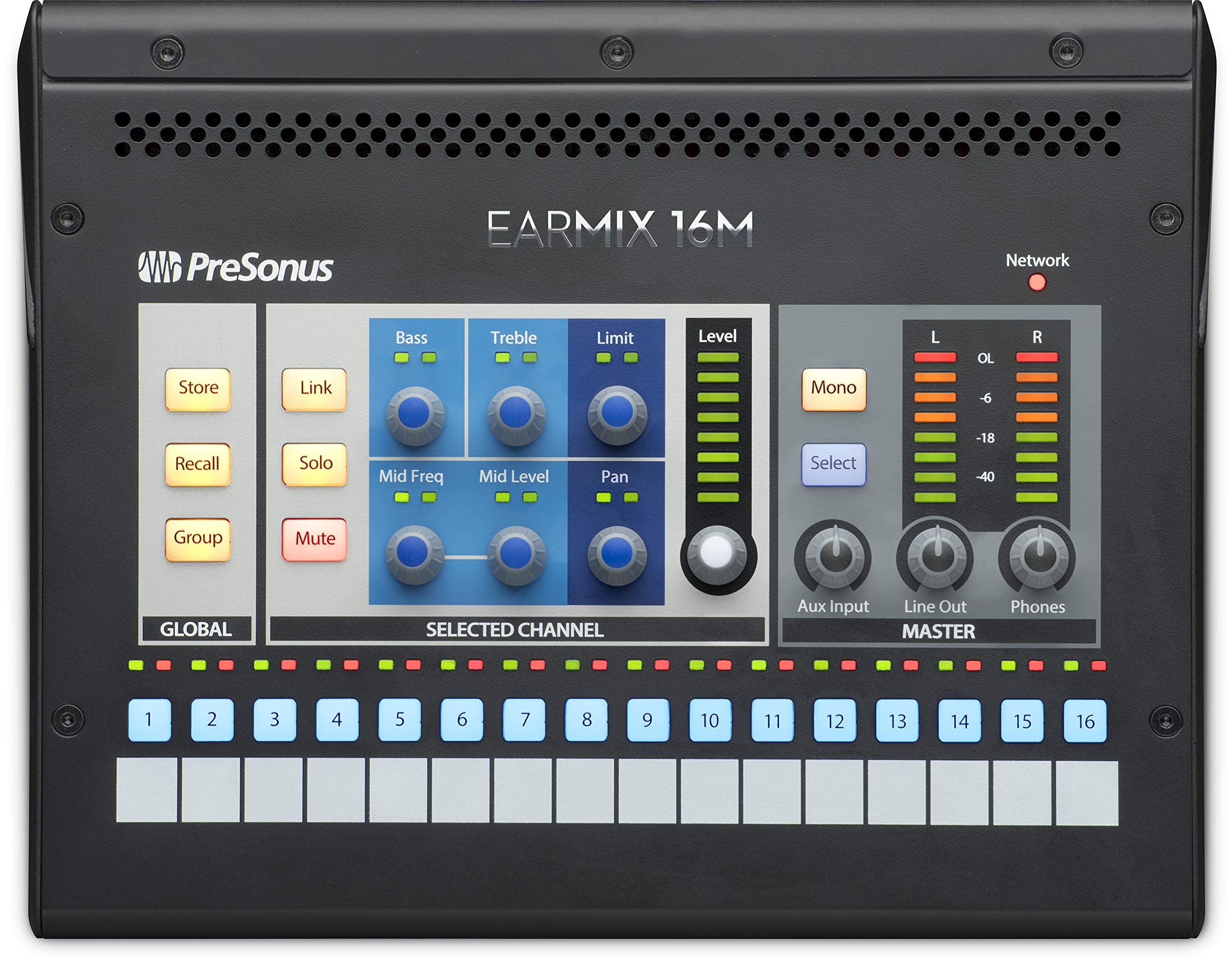

Modern musicians sometimes want more than just remote control: They want total control. When combined with up to 16 EarMix 16M personal monitor mixers, the StudioLive 24R is the most powerful personal monitoring hub available. With 16 FlexMix buses that can be configured as aux mixes, subgroups, or matrix mixes, the StudioLive 24R makes it easy to bus down larger channel counts, providing simplified 16-channel mixes for your musicians to manage. Four dedicated effects buses let you add reverb and delay and let the musicians control the blend from stage. No other personal monitoring system offers so much powerful processing with flexible, easy-to-use routing features
As a digital stage box for StudioLive Series III console mixers, the StudioLive 24R provides 24 remote digitally controlled XMAX preamps that can be gain-staged right from your StudioLive Series III console Fat Channel. The outputs of the StudioLive 24R automatically mirror the mixes available on your console mixer, making routing fast and easy. Best of all, when you need a rackmount mixer for a small mobile gig, simply disable Stage Box mode and you have a full-featured 32-channel digital mixer that fits into two rackspaces.
The 64-channel audio interface.
Recording engineers searching for a high-channel-count audio interface with near-zero latency monitor mixing, integrated plug-in models, and recallable mic preamps need look no further than the StudioLive 24R. An integrated 128-channel (64x64) audio interface lets you record all your inputs and buses over USB.
The StudioLive 24R also provides a complete rack of vintage EQ and dynamics processors. Every channel and bus can be processed with Fat Channel plug-in models pre- or post-recording. Modeled after classic analog studio designs, these compressor and EQ plug-ins load both natively on the StudioLive 24R and inside Studio One®, providing the ultimate mixing and recording flexibility. You get 6 models preinstalled, plus an additional 15 plug-ins from the Fat Channel Collection Vol. 1—a $149 (USD) value if purchased separately. Like every PreSonus interface, the StudioLive 24R is ready to record right out of the box with studione artist or capture®—both of which are included, along with Ableton® Live Lite.
A complete networked solution.
StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The StudioLive 24R combines the powerful processing for which studiolive serie 3 mixresare known with flexible modes to pair perfectly with console mixers and 16 m eramix personal monitoring mixers. Whether used standalone as a digital mixer and audio interface, or utilized with other StudioLive Series III ecosystem products, the StudioLive 24R combines flexibility with DSP power to become the ultimate compact audio solution.
Apple Silicon, iOS, and iPadOS compatibility—standard.
The PreSonus StudioLive 24R is natively compatible with Apple Silicon-based Mac computers*, as well as iOS and iPadOS devices, including iPad Pro, iPad, iPad Air, iPad Mini, iPod Touch, and iPhone. Because it's USB class-compliant, there are no special drivers or applications to download and install. You'll be able to produce on the go—everything from podcasts to folk rock to trap—wherever sound takes you.
Three year warranty—for all Series III and III S mixers
When we introduced the StudioLive Series III S mixers, we upgraded all Series III mixer warranty programs to three years as well, including both console and rack mixers. Even if you bought yours two and a half years ago, you're covered.
We take our build quality seriously, and if anything goes wrong with your mixer in your first three years of ownership (assuming you don't throw it in a swamp or anything like that) we'll repair it.
Features
- Powered by the new dual-core PreSonus® FLEX DSP Engine to provide the most processing of any digital mixer in its class
- 36 input-channel digital rack mixer
- 24 local digitally controlled XMAX mic/line inputs
- 4 FLEX FX returns
- 26 mix buses
- 16 FlexMixes (Aux, Subgroup, Matrix)
- 4 dedicated FLEX FX buses
- Stereo Main bus
- 286 simultaneous processors
- HPF
- Gate/Expander
- Compressor with Fat Channel plug-in models
- 4-band/6-band parametric EQ with Fat Channel plug-in models
- Limiter
- 31-band graphic EQ
- 4 FLEX FX slots featuring legendary classic reverb emulations and delays
- State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
- FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
- 24 DCAs to control groups of channels
- 128-channel (64x64) recording over USB
- Onboard stereo SD recorder with true Virtual Soundcheck mode
- AVB networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
- Monitor Mix and Stage Box mode for use with StudioLive Series III console mixers
- Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
- Remote control every mix function from your computer, iPad®, or Android™ tablet with UC Surface (included)
- Put your musicians’ monitor mix under their fingers with QMix®-UC (included) for iOS® or Android
- Capture® 3.0 multitrack software included
- Automated Virtual Soundcheck
- Store StudioLive® mix scenes with your audio
- Advanced Studio One® integration (Studio One Artist Included)
- XMAX mic preamp control from Studio One
- Control Fat Channel parameters from Studio One mixing console
- Ableton® Live Lite included
