Description
Your network translator
The PreSonus® AVB-D16 is the first plug-and-play endpoint that bridges AVB and Dante® networks. Now you can send and receive up to 16 audio channels between an AVB and Dante network with one simple device, making it the perfect solution to connect your StudioLive® Series III AVB ecosystem to your favorite Dante-equipped products, like the PreSonus cdl12 constant-directivity loudspeaker. Built-in asynchronous sample-rate conversion ensures that the AVB-D16 provides precision clock isolation between your AVB and Dante networks for pristine, clear audio with no dropouts or artifacts.
StudioLive Series III… now with Dante
Onboard AVB networking and the AVB-D16 make it possible to add Dante functionality to your StudioLive Series III mixer without the unnecessary hassle of an internal option card. Simply connect one or more AVB-D16 AVB-to-Dante bridges to your existing StudioLive Series III AVB network to add 16 channels of Dante I/O with each bridge. AVB-D16 makes the vision of plug-and-play functionality between audio networks a reality!
One endpoint, two networks
Whether you’re looking at your Dante network setup from Audinate’s Dante Control software or managing your StudioLive Series III AVB ecosystem from UC Surface or a StudioLive Series III console touchscreen, the AVB-D16 presents itself as a simple 16x16 network device. This lets you easily patch up to 16 audio sources on your StudioLive Series III mixers or PreSonus NSB-series stage boxes to any available input on your Dante network and receive 16 channels of audio from your Dante network to route to your StudioLive Series III mixers, earmix16m personal monitor mixers, or the outputs on your NSB-series stage boxes, creating a truly cohesive networking experience between the two protocols.
One endpoint, two sample rates
With built-in asynchronous sample-rate conversion, the AVB-D16 provides precision clock isolation between the AVB and Dante networks. This ensures pristine, clear audio with no dropouts or artifacts. It also allows you to run different sample rates on the AVB and Dante networks. So even if you're operating a Dante network at 96 kHz, you can still connect streams between your StudioLive Series III AVB network operating at 48 kHz with total confidence that the audio will be clean and error free.
Features
- 16 x 16 AVB
- 16 x 16 Dante®
- Asynchronous sample-rate conversion
- Precision clock isolation

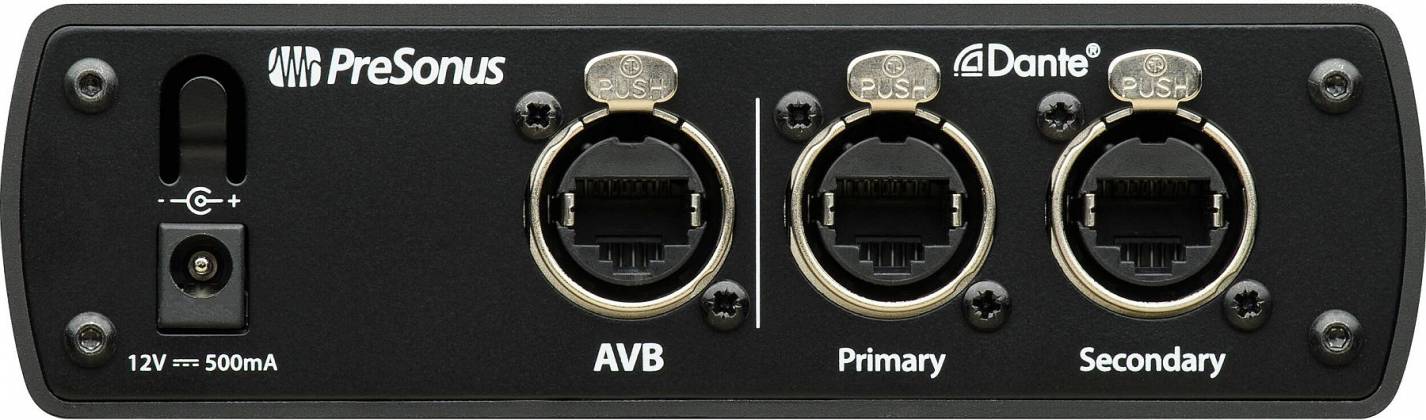

- 1 AVB port on locking etherCON™
- 2 Dante ports on etherCON™
- Use multiple AVB-D16 AVB-to-Dante bridges to add more channels
- Network Link/Activity indicators
- Support for 44.1 kHz and 48 kHz (AVB and Dante)
- Support for 88.2 kHz and 96 kHz (Dante)
- Rugged metal chassis
