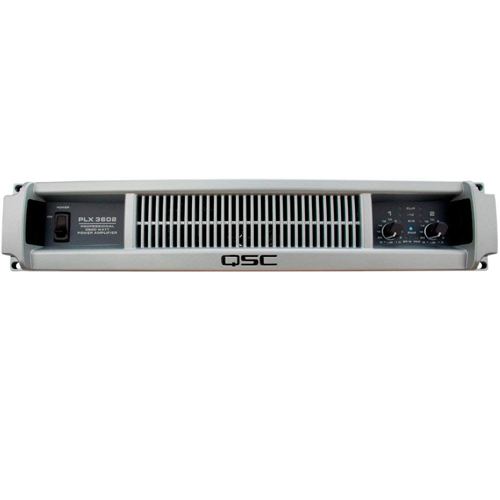

The PLX3602 is an excellent choice for users who need to drive up to four loudspeakers from each amplifier channel (2 ohm loading), or when extremely high power bridge mono operation is required. The PLX3602 features built-in subwoofer processing, filter switches, and front panel indications of bridge mono status.
| SPECIFICATIONS | PLX3602 |
|---|---|
| STEREO MODE, both channels driven * | |
|
8 ohms FTC 20 Hz - 20 kHz 0.05% THD EIA 1 kHz 0.1% THD |
725 W 775 W |
|
4 ohms FTC 20 Hz - 20 kHz 0.05% THD EIA 1 kHz 0.1% THD |
1100 W 1250 W |
| 2 ohms EIA 1 kHz 1% THD | 1800 W |
| BRIDGE MONO MODE * | |
|
8 ohms 20 Hz-20 kHz 0.1% THD EIA 1 kHz 0.1% THD |
2500 W 2600 W |
| 4 ohms 1 kHz 1% THD | 3600 W |
| Signal to Noise (20 Hz - 20 kHz) | -107 dB |
| Input Sensitivity @ 8 ohms | 1.25 Vrms |
| Gain @ 8 ohms | 36 dB |
| Output Circuitry | 2-Tier Class H |
| Distortion (SMPTE-IM) | Less than 0.02% |
| Typical Distortion 1/8 rated power, 20 Hz-20 kHz Full rated power, 20 Hz-20 kHz |
Less than 0.02% Less than 0.02% |
| Frequency Response | 20 Hz-20 kHz, -0.5 dB |
| Damping Factor | Greater than 500 |
| Input Impedance | 20k ohms balanced 10k ohms unbalanced |
| Input Clipping | 11 Vrms (+21 dBu) |
| Cooling | Variable-speed fan, rear-to-front air flow |
| Input Connectors, each channel | 3-pin XLR and 1/4", TRS balanced |
| Output Connectors, each channel | Neutrik®, NL4 Speakon®, and Touch-proof binding posts (Both channels available on Ch 1 NL4 connector) |
| Rear Panel Switches | Input Configuration: Bridge/Stereo/Parallel Clip Limiters each channel Filters (per channel): Top 100 Hz HPF/Full/Sub 100 Hz LPF &, 33 Hz HPF/Full (infrasonic) |
| Front Panel Controls | Detented Gain Attenuator: 0 to &infin, dB Power On/Off |
| Front Panel Indicators | Clip: Red LED -10: Green LED Signal (-35 dB): Green LED Power: Blue LED Parallel: Amber LED Bridge Mono: Amber LED |
| PROTECTION | |
| Amplifier Protection | Full short circuit, open circuit, thermal, infrasonic, ultrasonic, and RF protection Stable into reactive or mismatched loads |
| Load Protection | On/off muting, DC-fault power supply shutdown |
| Infrasonic | -3 dB, 5 Hz |
| DC fault | Power supply shutdown |
| Ultrasonic | -3 dB, 85 kHz |
| Short Circuit | Cutback |
| Thermal | Muting at 90°, C |
| Over Current | Active clip limiting Power supply cutback |
| High Line | Standard +15%, survive +25% |
| Low Line | -33% |
| PHYSICAL | |
| Dimensions Height Width Depth, Rack mounting surface to rear panel Overall Depth |
3.5", (8.9 cm) 2 rack spaces 19", (48.3 cm) 12.8", (32.6 cm) 14.875", (37.9 cm) |
| Weight | 21 lbs. (9.5 kg) net 26 lbs. (11.8 kg) shipping |
