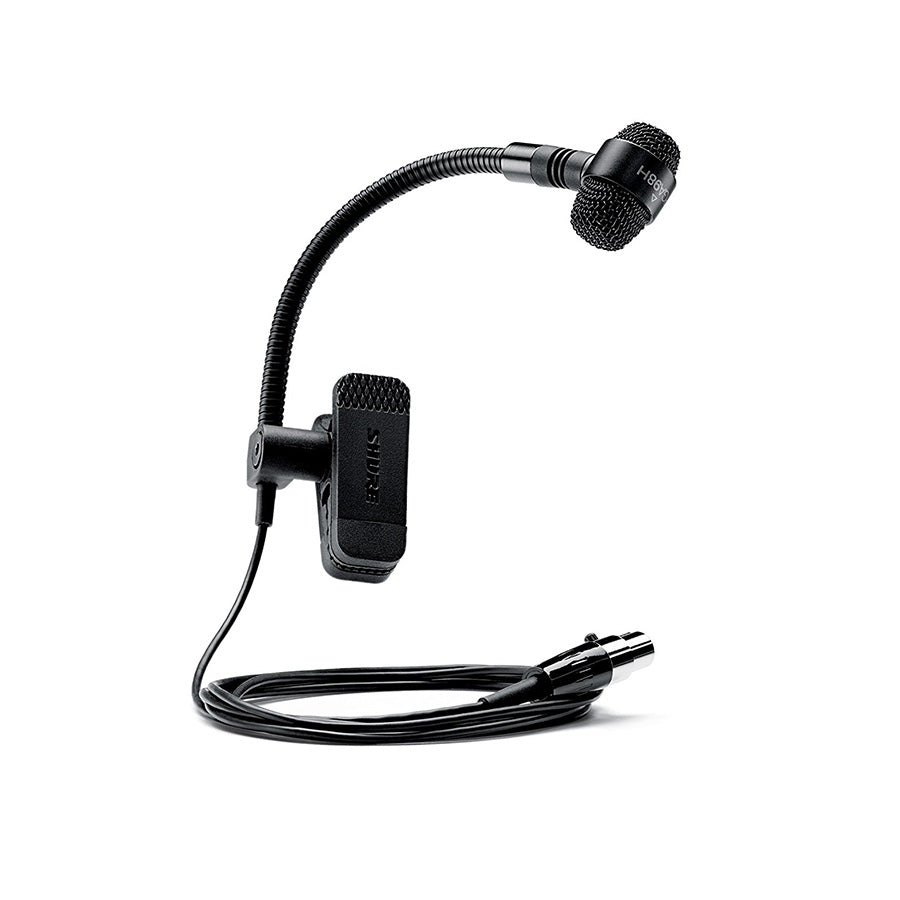

The PGA98H is a professional quality wind instrument microphone with an updated design that features a black metallic finish and grille offering an unobtrusive visual presence. Featuring a flexible, discrete gooseneck design with highly durable construction, horn clamp, and TA4F connector for use with wireless systems, the PGA98H is ideal for both live performance and recording.
Tailored microphone cartridge design for clear reproduction of wind instrument sound sources.
Flexible gooseneck design makes accurate positioning quick and easy
Integrated horn clamp for quick and easy mounting
In-line preamplifier requires phantom power and a direct XLR connection
Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
Updated industrial design with black metallic finish and grille for unobtrusive visual presence
With TA4F connector for use with wireless bodypack systems (no preamplifier provided)
Zipper pouch included for additional protection during storage or transport
Legendary Shure quality design and construction for exceptional performance in rigorous environments
Phantom Power
All condenser microphones require phantom power to operate. This microphone performs best with a 48 V DC supply (IEC-61938), but it can operate with lower voltages.
Phantom power is provided by the mixer or audio interface that the microphone is connected to, and requires the use of abalancedmicrophone cable: XLR-to-XLR or XLR-to-TRS. In most cases, there is a switch or button to activate the phantom power. See the user guide for the mixer or interface for additional information.
NOTE:This microphone is compatible with non-Shure bodypacks that have a TQG connector and supply 5V on pin 2.
Mounting the Microphone
Use the integrated clamp to quickly and securely attach the microphone to horns or other instruments.
Squeeze the clamp to open it, and attach to an instrument or other object.
Aim the microphone by rotating the swivel base and bending the gooseneck.
Aiming the Microphone
Position the microphone with the arrow pointed at the sound source.
Specifications
Type
Electret Condenser
Polar Pattern
Cardioid
Frequency Response
60 to 20,000 Hz
Output Impedance
at 1 kHz, open circuit voltage
PGA98H-XLR
850 Ω
PGA98H-TQG
600 Ω
Sensitivity
at 1 kHz, open circuit voltage
-52 dBV/Pa[1] (2.51 mV)
Maximum SPL
1 kHz at 1% THD, 1 kΩ load, typical
130 dB SPL
Self Noise
A-weighted, typical
27 dB SPL-A
Polarity
PGA98H-XLR
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
PGA98H-TQG
Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Connector
PGA98H-XLR
Three-pin professional audio (XLR), male
PGA98H-TQG
TA4F
Weight
PGA98H-XLR
245 g (0.5 lbs)
PGA98H-TQG
75 g (0.2 lbs)
Housing
Cast Zinc
Power Requirements
11 to 52 V DC phantom power (2 mA)
[1] 1 Pa=94 dB SPL
Accessories
Foam windscreen for PGA98H and PGA98D microphones
AP98WS
