Description

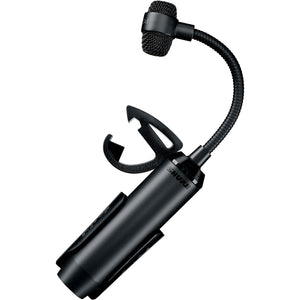

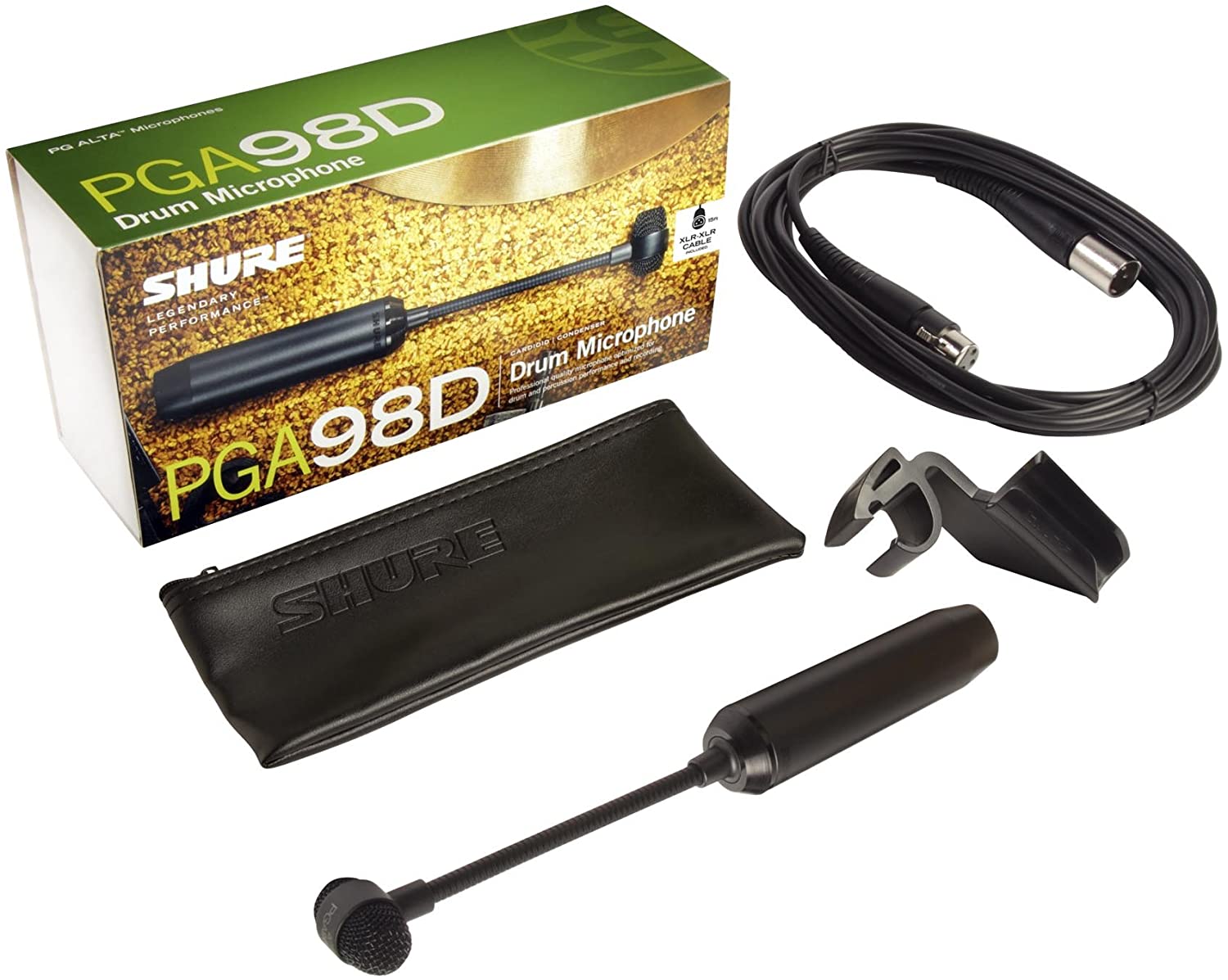

Cardioid condenser drum microphone delivers clear reproduction of rum and percussion sound sources. The product includes drum mount, zipper pouch, a flexible gooseneck design and an integrated preamplifier for phantom power and XLR connection.
Applications
The small, flexible design of the PGA98D microphone allows it to fit into tight spots around drums. The included drum microphone clip makes drum mounting fast and easy, but the microphone can also be used on other sources by mounting it in a standard clip.
Drums
- For more stick attack, aim the microphone towards the center of the drum head.
- To capture more resonance and overtones, aim the microphone towards the edge of the drum head.
- Positioning the microphone closer to the drum head delivers increased bass.
Other Instruments
The PGA98D can effectively capture other instruments where space is limited. Simply mount the microphone in a standard clip and adjust the gooseneck to aim it at the source.
Drum Microphone Mounting

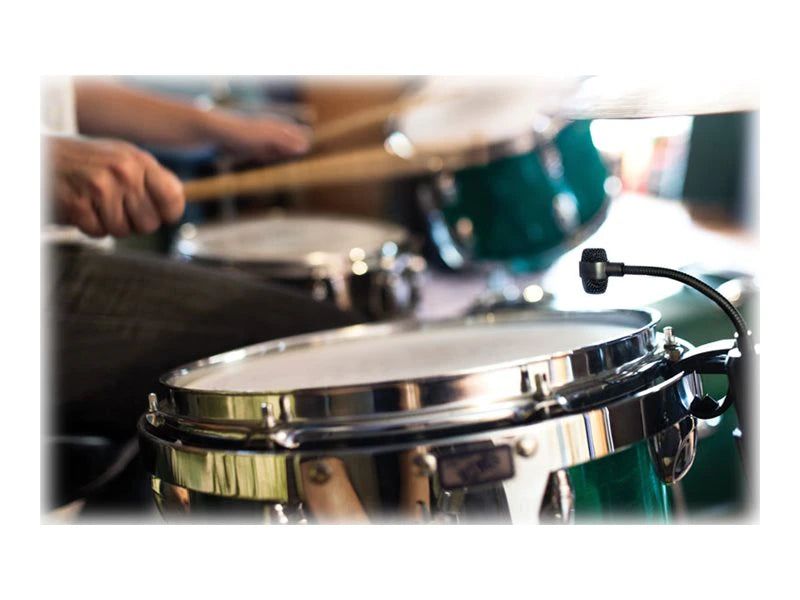

To attach the microphone clip to a drum rim:
- Place the microphone clip with the groove seated securely over the top of the drum rim
- Position the bottom of the clip to wrap underneath the drum rim. The clip is flexible and can be gently bent to fit if necessary.
- Insert the microphone into the clip and adjust the gooseneck as necessary
Aiming the Microphone
Position the microphone with the arrow pointed at the sound source.
Specifications
Type
Electret Condenser
Polar Pattern
Cardioid
Frequency Response
60 to 20,000 Hz
Output Impedance
at 1 kHz, open circuit voltage
850 Ω
Sensitivity
at 1 kHz, open circuit voltage
-52 dBV/Pa [1] (2.51 mV)
Maximum SPL
1 kHz at 1% THD, 1 kΩ load, typical
130 dB SPL
Self Noise
A-weighted, typical
27 dB SPL-A
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector
Three-pin professional audio (XLR), male
Weight
210 g (0.5 lbs)
Housing
Cast Zinc
Power Requirements
11 to 52 V DC phantom power (2 mA)
Optional Accessories and Replacement Parts
| Foam windscreen for PGA98H and PGA98D microphones | AP98WS |
| Drum mounting clip for PGA98D | AP98DM |
