- Connect a Keyboard to a Mic Input
- Connect a Guitar/Bass to a Mic Input
- Converts Instrument Level to Mic Level
- Adapts Unbalanced Hi-Z to Balanced Lo-Z
- 2 x 1/4" TS Inputs
- Balanced 3-Pin XLR Output
- Right 1/4" Input Doubles as Thru Jack
- Pad, Low-Cut, Polarity & Ground Lift
- 48 VDC Phantom Powered
- Durable Metal Housing with Nylon Bumpers

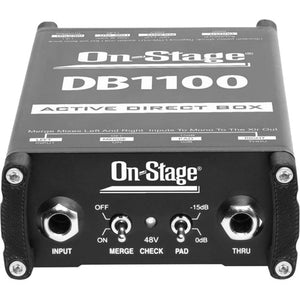

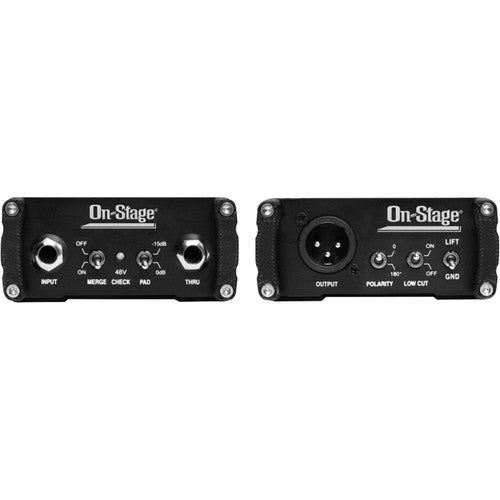

Connect your mono or stereo keyboard, or a guitar and bass directly to a single mic preamp with the On-Stage DB1100 active DI box. Thanks to a selectable stereo-to-mono summing function, it adapts up to two high-impedance, instrument-level 1/4" TS inputs to one low-impedance, mic-level XLR output.
Short Description:
Active DI Box
Application
Acoustic guitars, bass guitars, keyboards, and more
Inputs
Stereo 1/4"
Output
XLR (mono)
Power
Phantom
Pad
15dB
Ground Lift
Yes
Polarity Switch
Yes
Low Cut Switch
Yes
Merge Switch
Yes - Stereo-to-Mono summing
Input Resistance
220K Ohms
Construction
Metal w/ nylon bumpers
Dimensions
6" x 3.5" x 1.5"
Weight
0.70 lbs.
