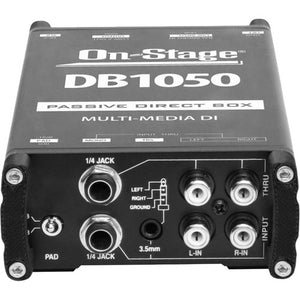

Our DB1050 Passive Multimedia DI Box converts any line-level stereo source to a low-impedance XLR mono signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power, a -15 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, throughput connectors to pass unaltered signal to a stage amp, a Hi-Z/XLR input selector, and a variety of input connectors to enable convenient use with various sources. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.
Short Description:
Passive Multimedia DI Box
Application
Computers, mp3 players, keyboards, projectors, and DJ equipment
Inputs
Stereo 1/4", 3.5mm, stereo RCA, and XLR
Output
Mono XLR Low-Z out
Power
Passive/not required
Pad
15dB
Ground lift
Yes
Input Resistance
220K Ohms
Frequency Response
10Hz - 40kHz
Construction
Metal w/ nylon bumpers
Dimensions
6" x 3.5" x 1.5"
Weight
0.70 lbs.
