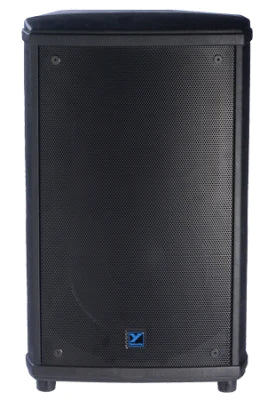

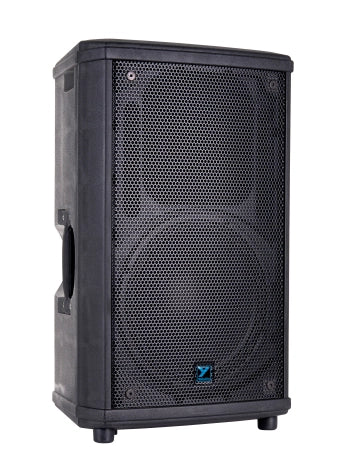

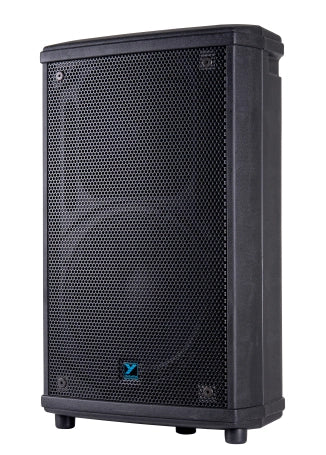

For over twenty years, NX loudspeakers have earned a reputation for proven reliability. The traditional design works equally well as a front of house speaker or stage monitor. Designed for venues with external power amplifiers, the NX35-2 offers NX-quality sound in a passive cabinet.
Featuring a 12-inch woofer and 1000 watts of peak handling power (500 watts program), the NX35-2 is an evolution of the original NX20. Upgrades include increased cabinet volume for significantly improved low-frequency response, and an 80° x 50° horn modeled after the custom waveguide in Yorkville Sound’s popular Elite series for balanced high frequencies.
The custom-molded enclosure is designed to fit into clusters or for use as a monitor wedge. The composite construction uses low-resonance, variable-density materials and rigid internal bracing, for a durable cabinet that resists UV and moisture.
The NX35-2 is a versatile, high-performance solution for applications that require a compact unpowered speaker.
Features
- 12” LF Driver with 2.5” Voice Coil
- 1.4” HF Driver
- 2x 1/4" Inputs, 2x speakON® Inputs
- Integrated Flying Hardware
- Made in Canada
Specifications
| System Type |
Unpowered Loudspeaker |
| Power Rating |
1000 W Peak (500 W Program) |
| Biampable |
No |
| Sensitivity (dB AT 1Watt/1m) |
100 dB |
| Max SPL |
130 dB Peak (127 dB Continuous) |
| Frequency Response (Hz +/- 3dB) |
60 Hz - 18 kHz |
| Crossover Frequency |
2 kHz |
| HF Driver(s) |
1.4” Aluminum Diaphragm, 1” Exit |
| HF Dispersion (°H x °V) |
80° x 50° |
| HF Protection |
Dual Bulb CTL™ |
| LF Driver(s) |
12” with 2.5” Voice Coil |
| LF Protection |
Thermal / Overcurrent |
| LF Amplifier Type |
2-Tier Class H |

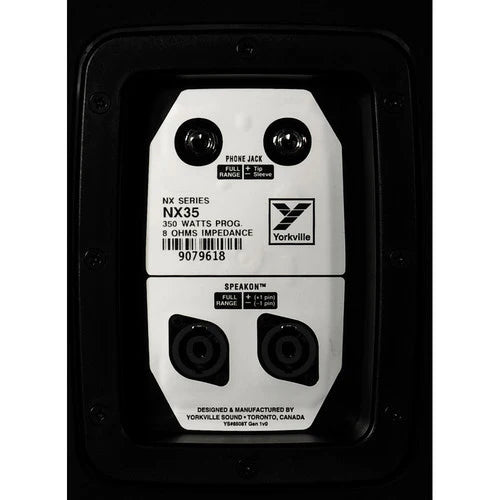

| Inputs |
2x 1/4"
2x speakON® 4-Pin |
| Input Sensitivity (Vrms Sine) |
1.23 Vrms Sine, +4 dBu |
| Mixer Controls |
Line Level
Mic Level
Bass
Treble |
| LED Indicators |
Power, Activity, Limit |
| Bar Handles |
1 (Side) |
| Flypoints |
4 (2 Top, 2 Bottom), 1 Pullback |
| Flying Hardware |
1/4-20 |
| Optional Flying Hardware |
NXF Flyware |
| Pole Mount Adapter (1 3/8 |
1 (Bottom) |
| Enclosure Materials |
Molded Polypropylene |
| Dimensions (DWH) |
12.25" x 16" x 26.5" (31.1 cm x 40.6 cm x 67.3 cm) |
| Weight |
28 lbs / 12.7 kg |
Specifications subject to change without notice
