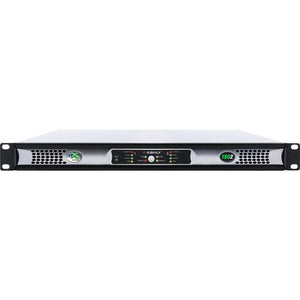

The nX Series 2-Channel Multi-Mode Power Amplifier from Ashly is capable of driving 2, 4, and 8 ohms loads at full power and offers a maximum rated output power of 150W per channel at 25V, 70V, and 100V modes. It features a universal switch-mode power supply with PFC (Power Factor Correction) that operates from 70 to 270 VAC. The multi-mode output capability allows each individual amplifier output channel to be set for low-impedance (2, 4, and 8 Ohms) or constant voltage (25, 70, or 100V) operation using DIP switches.
The amplifier has power-saving Ashly EMS (Energy Management System) that provides an automatic sleep-mode drawing less than 1W. It is suitable for live sound and fixed installation sound systems in stadiums, arenas, performance venues, places of worship, and convention centers.
Number of Channels | 2 |
Voltage Gain | Selectable at 26, 32, or 38 dB, or 1.4 V |
Damping Factor | >250 (8 Ohms load <1 kHz) |
Filter | Input High Pass Filter: 80 Hz second-order |
Distortion | SMPTE (Typical): <0.5% THD-N (Typical): <0.5% (8 Ohms, 10 dB below rated power, 20 Hz to 20 kHz) |
Channel Separation | -75 dB (dB from full output, 1 kHz) |
Signal-to-noise | >99 dB (un-weighted 20 Hz to 20 kHz, Gain @ 26 dB) |
Frequency Response | 20 Hz to 20 kHz, ±0.05 dB |
Input Impedance | 10 kOhms |
Balanced Input | Euroblock 3.5 mm |
Maximum Input Level | +21 dBu |
Speaker Output | Euroblock 7.62 mm |
Level Control | Remote DC Level Control: Euroblock 3.5 mm - Gnd, CV, V+ per input |
Attenuation | Per Channel: Rear panel, fully off= mute |
Front Panel LED Indicators | White LED: Power Switch: On, off, flashing (standby mode) Red LED: Protect: On (fault condition or shut down), Off Clip / Mute (Per Channel): Clip @ 1 dB below rated output / mute Blue LED: Sleep Mode: On (when the amplifier is asleep from audio inactivity) Yellow LED: Disable: On (when the power switch & attenuators are disabled) Temperature (Per Channel): On dim at 90% maximum operating temperature, full bright + protect at 100% Green LED: Signal (Per Channel): -18 dB, below rated output Bridge (Per Channel): Pair, On, off Current (Per Channel): Brightness is proportional to output current |
Protection Circuits | Inrush current limitation, temperature monitoring, output over-power protection, and mains fuses |
Cooling | Continuously variable temperature controlled fan |
Nominal Voltage | Input: 120 to 240 VAC @ 50/60 Hz |
Operating Range | 70 to 270 VAC @ 50/60 Hz |
Power-Up Action | Minimum Power-Up: 70 VAC @ 50/60 Hz |
Power Supply Type | SMPS with active PFC (Power Factor Correction) |
AC Mains Power Cord | Connector: Detachable NEMA 5-15 for USA |
Maximum Output Power | Low Impedance Output Mode (All Channels Driven at Rated Load): 2, 4, & 8 Ohms: 150 W |
Low Impedance | Low Impedance Output in Bridge Mode (All Channels Driven at Rated Load): 4, & 8 Ohms: 300 W |
Voltage Output | Constant Voltage Output (All Channels Driven at Rated Load): 25, 70, & 100 V (Per Channel): 150 W |
Power Draw | Total AC Mains Power Draw (Typical Input): Sleep Mode: <1 W Standby Mode: 15 W Idle (No Signal): 33 W Typical Input (1/8 Max Power @ 2 Ohms): 133 W |
Current Draw | For 120 VAC (Typical Input, Total for all Channels): Sleep Mode: 94 mA Standby Mode: 0.2 A Idle (No Signal): 0.35 A 1/8 Max Power @ 2 Ohms: 1.16 A For 240 VAC (Typical Input, Total for all Channels): Sleep Mode: 47 mA Standby Mode: 0.1 A Idle (No Signal): 0.175 A 1/8 Max Power @ 2 Ohms: 0.58 A |
Thermal Dissipation | Typical Input (Total for all Channels): Sleep Mode: 2.14 BTU/hr Standby Mode: 51 BTU/hr Idle (No signal): 112 BTU/hr Typical (1/8 Max Power @ 2 Ohms): 325 BTU/hr |
Environmental Conditions | 32 to 120°F (0 to 49°C), non-condensing |
