The PreSonus NSB 16.8 networked stage box lets you put analog I/O for your StudioLive Series III digital mixer wherever you need it. Equipped with 16 digitally controlled XMAX mic preamps, 16 balanced line level inputs and 8 analog outputs, the NSB 16.8 integrates seamlessly into StudioLive Series III digital mixers with a single Ethernet connection. Remote control input trims, phantom power, and more, directly from your StudioLive Series III console or from UC Surface remote mixing software on your tablet or laptop.
The NSB 16.8 networked stage box is loaded with 16 versatile locking combo jacks. Connect your microphones to the digitally controlled XMAX preamps or use the balanced 1/4 TRS inputs to connect your line level device the NSB 16.8 can handle it all. The inputs can be sent to any StudioLive Series III digital mixer on the network, and thanks to gain compensation, every mixer gets individual gain control without affecting the front-of-house mix.
PreSonus built the NSB 16.8 inside a rugged steel chassis with sturdy handles designed to survive the rigors of the most demanding tours. The NSB 8.8 is also install-friendly: Just remove the handles and attach the optional rackmount kit, and your NSB 8.8 can be racked in your studio or backstage. For permanent installations, the NSB 8.8 is also compatible with stage pockets from Ace Backstage.
Microphone Preamplifier |
|
|---|---|
| Input Type | XLR Female, balanced |
| Frequency Response to Main Output (at unity gain) | 20-20 kHz, ±0.5 dBu |
| Input Impedance | 1 kΩ |
| THD to Main Output | <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd |
| S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) | 94 dB |
| Common Mode Rejection Ratio (1 kHz at unity gain) | 65 dB |
| Gain Control Range (±1 dB) | 0 dB to +60 dB |
| Maximum Input Level (unity gain) | +12 dBu |
| Phantom Power (±2 VDC) | 48 VDC, switchable per channel |
Line Inputs |
|
|---|---|
| Type | ¼” TRS Female, balanced |
| Frequency Response to Main Output (at unity gain) | 20-20 kHz, ±0.5 dBu |
| Input Impedance | 10 kΩ |
| THD to Main Output | <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd |
| S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) | 94 dB |
| Maximum Input Level | +18 dBu |
XLR Outputs |
|
|---|---|
| Type | XLR Male, balanced |
| Maximum Output Level | +24 dBu, ±0.5 dBu |
| Output Impedance | 100Ω |
Digital Audio |
|
|---|---|
| ADC Dynamic Range | 115 dB (A-wtd, 48 kHz) |
| DAC Dynamic Range | 115 dB (A-wtd, 48 kHz) |

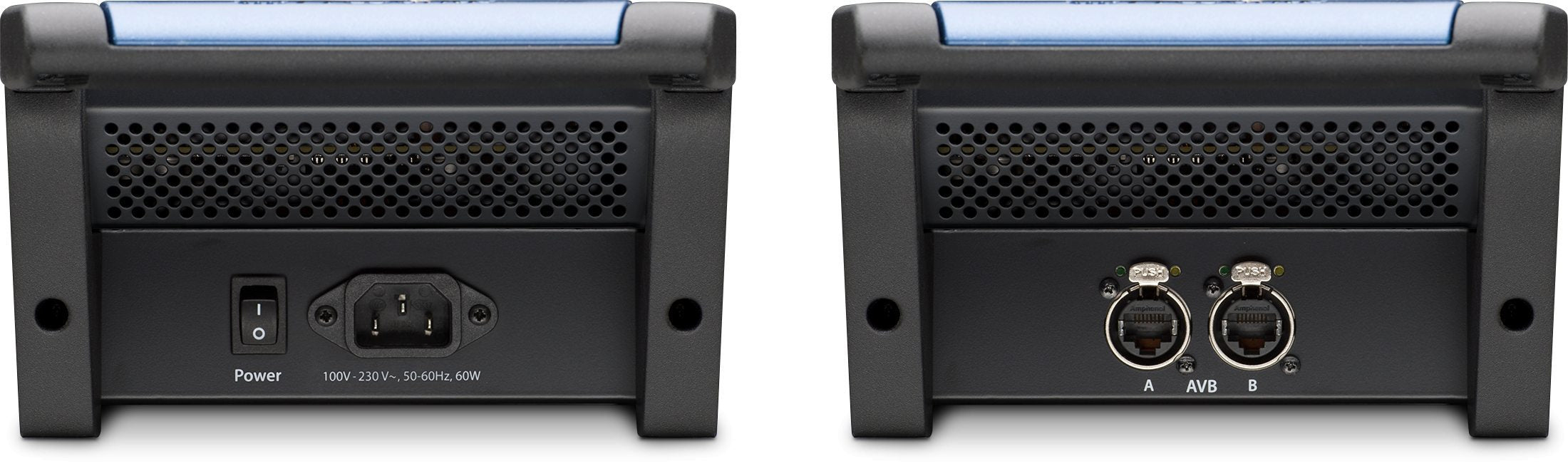

| AVB Audio Network Ports | Locking XLR Ethernet |
| Sampling Rate | 48 kHz, 44.1 kHz |
Power |
|
|---|---|
| Connector | Locking IEC |
| Input-Voltage Range | 90 to 230 VAC (±10%) |
Physical |
|
| Height | 7” (178 mm) |
| Width | 16.7” (424 mm) |
| Depth | 4.5” (114 mm) |
| Weight | 6.2 lbs. (2.8 kg) |
